Product Specifications
| Prod Model: |
2040-1 HCM19C21A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 12~19V: |
1giga LAN |
| Printed Circuit Board: |
Four Layers |
| Main Chipset: |
Intel |
| SATA Interface: |
SATA2.0 |
| Audio Effects: |
HiFi |
| Memory: |
DDR3 |
| Integrated Graphics: |
Integrated Graphics |
| Maximum Memory Capacity: |
8G |
| Main Board Structure: |
Integrated |
| Structure: |
170 X 170mm |
| CPU Socket: |
Intel C1037 U |

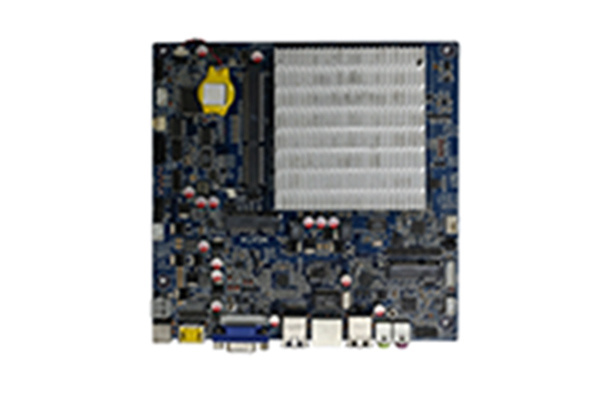

Product Description
Detail Specification
CPU Onboard Intel Bay trail M/D four-core processor
Chipset Adopts INTEL Bay trail M/D single chip
Display port Supports 1*VGA port, 1*HDMI port, 1*VGA extended header, 1*HDMI extended header,
1*double 24 bits LVDS header
Display performance Integrates Intel® HD Graphics
Memory 1*SO-DIMM,DDR3 max up to 8GB
Power DC 12~19V power supply
Storage 1*SATA port(SATA2.0),1MINI PCIE
Network Onboard 1*Realtek 8111E self-adaption of gigabit chip, supports non-hard disk system and Wake-On-LAN
Audio Onboadr Realtek ALC662chip, HD Audio Codec
LVDS Supports double 24bit LVDS
USB 8*USB2.0,2*USB3.0 port
Back panel interface 1* DC 12V-24V input
1*HDMI;
1*VGA;
2*USB2.0;
2*USB3.0(compatible with USB2.0);
1*RJ-45 1000M ;
1*Line out;
1*MIC
Internal interface 2*USB2.54 row headers, supports 4*USB ;
2*COM1-2 row headers
1*12V input parallel header;
2*FAN power supply interface;
1*MINI-PCIE;
1*MINI-SATA ;
1*SATA;
1*SATA power supply interface;
1*LVDS supports 24bit's two channels
1*SPK_CON
BIOS AMI 64Mbit BIOS, ACPI supported, supports to start up when calling
Form factor Mini-ITX 170 x 170mm
Work Environmental
Working conditional temperature -20~80°C
Working conditional humidity 10%~90% relative humidity, non-condensing
Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
