Product Specifications
| Prod Model: |

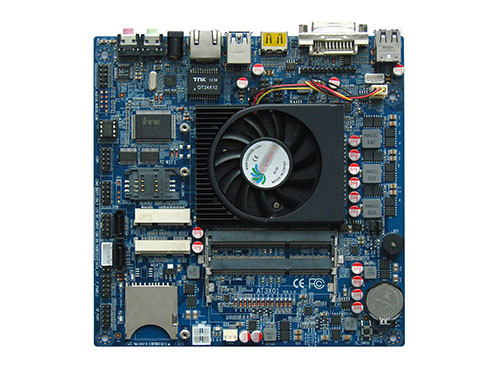

2050-1 ITX-AT3X21A E-Kabini |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pwr 12V: |
1giga LAN |
| Printed Circuit Board: |
Four Layers |
| Main Chipset: |
AMD |
| SATA Interface: |
SATA2.0 |
| Audio Effects: |
HiFi |
| Memory: |
DDR3 |
| Integrated Graphics: |
Integrated Graphics |
| Maximum Memory Capacity: |
16G |
| Main Board Structure: |
Integrated |
| Structure: |
170 X 170mm |
| CPU Socket: |
AMD Kabini |
Product Description
CPU AMD Kabini Low consumption processor
Chipset NA
Memory 2 x SODIMM DDR3 1333/1066MHz DIMM, Max support 16GB
Graphics CPU Integrated Radeon HD8000G
Audio Onboard Realtek ALC883 HD audio chip
LAN Onboard Realtek 8111E, 10/100/1000M lan support PXE.
Storage Interface 2 x SATA2.0 Hard disk connector
Expansion Slots 1 x SDI slot,2x Mini PCIE solt&SIM solt
USB Support 8 PCS USB 2.0 Porst (4 pcs need extend)
Internal I/O Connectors:1 x 4-pin ATX main power supply
2 x SATA headers
1 x CPU fan header
1 x front panel header
1 x F_Audio header
2 x USB 2.0 headers
1 x Clear CMOS header
2 x COM headers
1x GPIO header
1 x VGA_H header
Back Panel
Connectors
1 x HDMI port
1X DVI port
2 x USB 2.0 ports
2x USB 3.0 ports
1 x RJ-45 ports
1 x audio 2 Jacks( Line-out, MIC)
1xDC port
I/O Controller 1 x IT8718F
BIOS AMI Authorized 32Mbit BIOS process, support RPL/PXE
Form Factor Mini-ITX 170 x 170mm
Work Environmental
Working conditional temperature -15~60°C
Working conditional humidity 10%~80% relative humidity, non-condensing
Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
