Product Specifications
| Prod Model: |
2072-2 ATX HCM I6314A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 8USB: |
4SATA |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
Intel |
| Maximum Memory Capacity: |
16G |
| Memory: |
DDR3 |
| SATA Interface: |
SATA2.0 |
| Printed Circuit Board: |
Four Layers |
| Main Board Structure: |
Integrated |
| Audio Effects: |
HiFi |
| Structure: |
300 X 190mm |
| CPU Socket: |
Intel Core I7, I5, I3, Pentium, Celeron CPU |

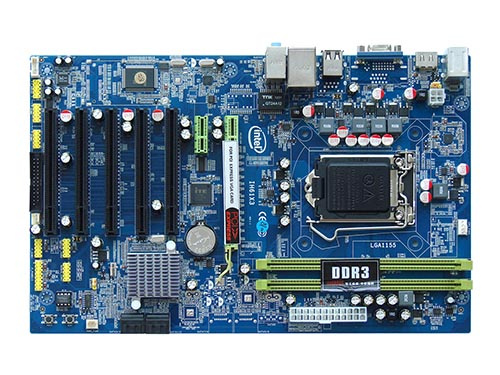

Product Description
CPU: Intel core i7,core i5,core i3,pentium,celeroni processor
Chipset Single chip: Intel H61
Memory 2 x DDR3 1333/1066MHz DIMM, Max support 16GB
Graphics support DirectX 9.0C
Audio Onboard Realtek ALC662 HD audio chip
LAN Onboard Realtek 8111E, 10/100/1000M lan support PXE.
Storage Interface 4x SATA Hard disk connector
Expansion Slots 1xPCIE 16X solt,1x PCIE 1X,5xPCI
USB Support 8 PCS USB 2.0 Porst (4 pcs need extend)
Internal I/O Connectors: 1 x 24-pin ATX main power supply
4 x SATA headers
1 x CPU fan header
1 x front panel header
1 x F_Audio header
2 x USB 2.0 headers
1 x Clear CMOS header
2 x COM headers
1x CD_IN header
1xLPT header
Back Panel Connectors :
1 x VGA port
1 x PS2 mouse and keyboard ports
4 x USB 2.0 ports
1x HDMI port
1 x RJ-45 port
1 x audio 2 Jacks( Line-out, MIC or Line-in)
I/O Controller 1 x IT8782F
BIOS AMI Authorized 32Mbit BIOS process, support RPL/PXE
Form Factor ATX 300 x 190mm
Work Environmental
Working conditional temperature -15~55°C
Working conditional humidity 10%~80% relative humidity, non-condensing
Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
