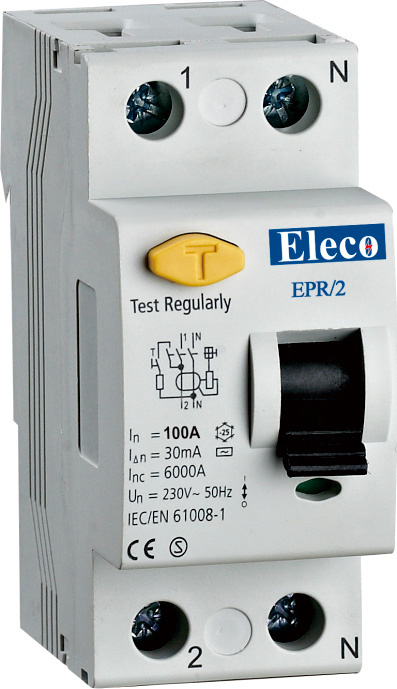

Product Specifications
| Prod Model: |
EPR Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Conditional Short-Circuit Curren: |
Inc 6ka |
| Rated Current ,in: |
16,25,32,40,63,80,100A |
| Rate Sensitivity Currents, IΔn: |
10,30,100,300mA |
| Number Of Poles: |
2(1+N), 4 (3+N) Pole |
| Rated Voltage: |
2p:230VAC 4p:230/400VAC |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
ELCB |
| Poles Number: |
2 |
| Certification: |
Semko |
Product Description
Features
When designing residual current devices, manufacturing technology and type of routine tests, the IEC/EN 61008 standards were considered. Important features are:
Up to date dasign
User-friendly connection of conductors and busbars
Resistance to current surges; unmanted tripping excluded
Simple and solid fixing to a 35 mm mounting rail in compliance with EN 60715
Additional colour display of main contacts position(red:contacts closed, green: contacts open)
| Standard | Confirming to EN/IEC61008-1 |
| Rated conditional short-circuit current,Inc | 6kA |
| Protection | Groud fault |
| Rated current,In | 16,25,32,40,63,80,100A |
| Number of Poles | 2(1+N),4(3+N) pole |
| Rated sensitivity currents, In | 10,30,100,300mA |
| Rated residual non-operating current | 0.5* In |
| Rated impulse withstand voltage Uimp | 6000V |
Rated voltage 2pole
4pole | 230VAC
230/400VAC |
| Protection degree | -25ºC~+40ºC |
| Residual current off-time at In | ≤0.1s |
| Rated residual Current making&breaking capacity Im | 500A for In=16,25,32,40A
630A for In=63,80,100A |
| Type of trip | Electro-magnatic release |
| Type of terminal | Lug type ang Pin type |
| Terminal capacity | Cables up to 35mm² |
| Protection degree | IP20 |
| Installation | 35mm DIN rail |
