Product Specifications
| Prod Model: |
71905C HQ1 DB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Precision Grade: |
P4/P2 |
| Band: |
Tmp |
| Rolling Body: |
Ball Bearings |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Small and Medium-Sized (',60-115mm) |
| Material: |
Bearing Steel |
| Separated: |
Unseparated |
| Spherical: |
Ceramic Ball Bearings |
| Load Direction: |
Radial and Trust Bearing |
Product Description

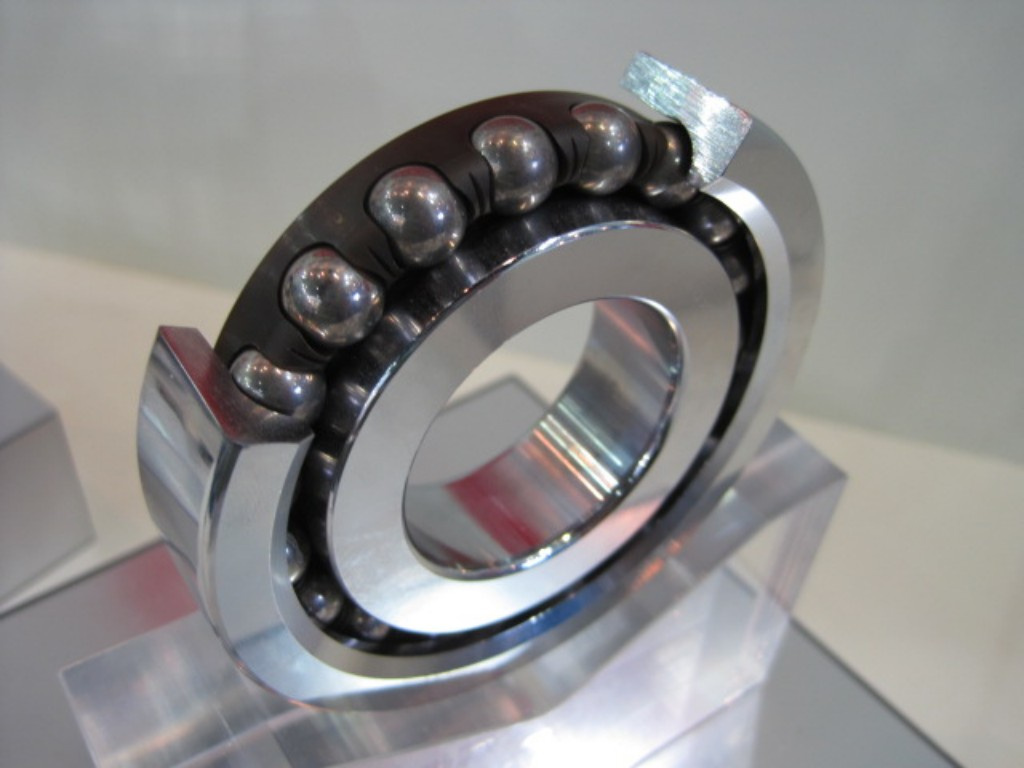

71905C HQ1 AC/C DB P4 Ceramic Ball Bearings (25x42x9mm) Angular contact bearing Germany High precision Spindle bearings
A . Ceramic Ball Bearings Parameters
Brand- TMP
Structure- Ceramic Ball/Angular Contact ball
Model number- 71905C HQ1
Inner ring(mm)- 25
Outer ring(mm)- 42
Width(mm)- 9
Weight(Kg)- 0.04
Materials- Chrome steel/GCR15
Precision grade- P4/P2
Lubrication type- Grease lubrication
Contact Angle- C=15°;AC=25°
Material(Ball)- SN24:Ceramic ball(Si3N4)
Number of Row- Single rows
Material(Cage)- TYN-PA;TR-PF
Combination- "SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows"
B . 71905C HQ1 Ceramic Ball Bearings Specification Sheet
| Model Number | Dimensions | α=15° | α=25° | Material
(Cage ) | Weight (kg)
Approx |
| Limiting speed | Limiting speed |
| d | D | B | Basic load
rating | Lubrication | Basic load
rating | Lubrication |
| Cr Cor | Grease Oil | Cr Cor | Grease Oil |
| 71905C HQ1 | 25 | 42 | 9 | 5.2 3.4 | 52000 79000 | 4.9 3.3 | 44000 66000 | PF | 0.04 |
C . 719 HQ1 series Ceramic Ball Bearings Details
Product Features
Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high preicsion Spindle and Motors
Series Introduction
High Speed Ceramic Ball Type:ISO 19 Series - second highest speed, with the second lowest load bearings-719 Series Angular Contact Bearings
Series Model No.
71900C HQ1,71901C HQ1,71902C HQ1,71903C HQ1,71904C HQ1,71905C HQ1,71906C HQ1,71907C HQ1,71908C HQ1,71909C HQ1,71910C HQ1,71911C HQ1,71912C HQ1,71913C HQ1,71914C HQ1,71915C HQ1,71916C HQ1,71917C HQ1,71918C HQ1,71919C HQ1,71920C HQ1
Applications
High Speed Ceramic Ball Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment.
