Product Specifications
| Prod Model: |
7202C HQ1 DB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Precision Grade: |
P4/P2 |
| Band: |
Tmp |
| Rolling Body: |
Ball Bearings |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Small and Medium-Sized (',60-115mm) |
| Material: |
Bearing Steel |
| Separated: |
Unseparated |
| Spherical: |
Ceramic Ball Bearings |
| Load Direction: |
Radial and Trust Bearing |
Product Description

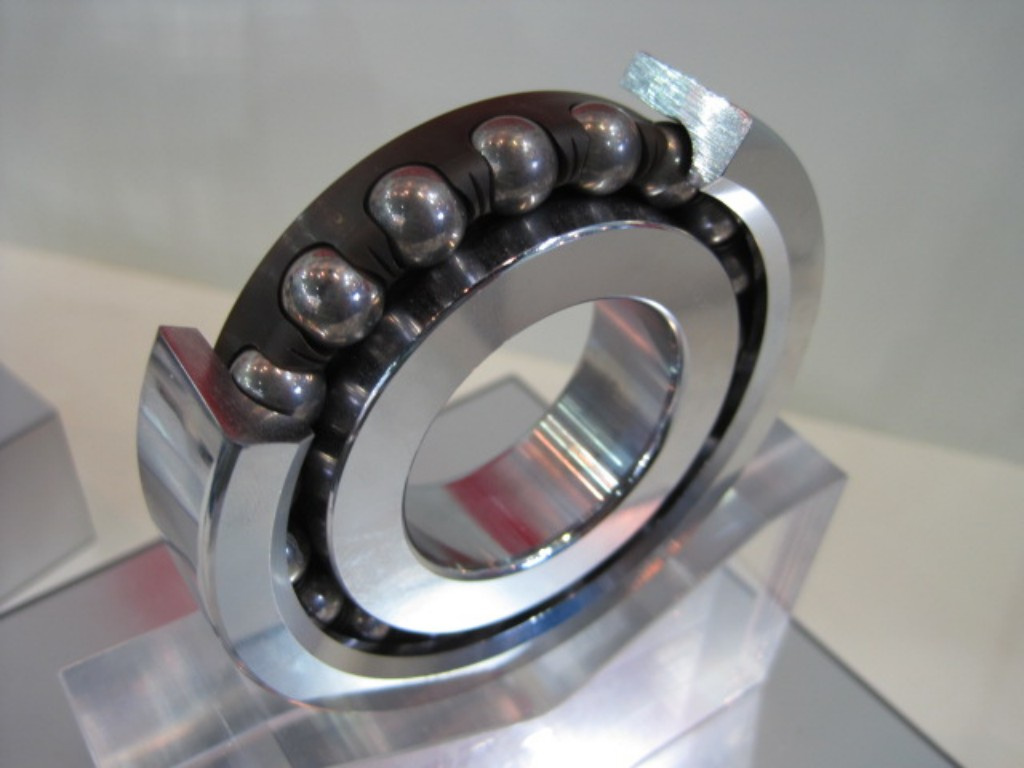

7202 HQ1 AC/C DB P4 Ceramic Ball Bearings (15x35x11mm) Angular contact bearing Germany High Speed Spindle bearings
A . Ceramic Ball Bearings Parameters
Brand- TMP
Structure- Ceramic Ball/Angular Contact ball
Model number- 7202 HQ1
Inner ring(mm)- 15
Outer ring(mm)- 35
Width(mm)- 11
Weight(Kg)- 0.046
Materials- Chrome steel/GCR15
Precision grade- P4/P2
Lubrication type- Grease lubrication
Contact Angle- C=15°;AC=25°
Material(Ball)- SN24:Ceramic ball(Si3N4)
Number of Row- Single rows
Material(Cage)- TYN-PA;TR-PF
Combination- "SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows"
B . 7202 HQ1 Ceramic Ball Bearings Specification Sheet
| Model Number | Dimensions | α=15° | α=25° | Material
(Cage ) | Weight (kg)
Approx |
| Limiting speed | Limiting speed |
| d | D | B | Basic load
rating | Lubrication | Basic load
rating | Lubrication |
| Cr Cor | Grease Oil | Cr Cor | Grease Oil |
| 7202 HQ1 | 15 | 35 | 11 | 9.1 5.8 | 65800 96600 | 8.8 5.6 | 58800 86800 | PA/PF | 0.046 |
C . 72 HQ1 series Ceramic Ball Bearings Details
Product Features
Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high preicsion Spindle and Motors
Series Introduction
High Speed Ceramic Ball Type:ISO 02 Series - highest load, lowest speed bearings-72 Series Angular Contact Bearings
Series Model No. 7200HQ1,7201HQ1,7202HQ1,7203HQ1,7204HQ1,7205HQ1,7206HQ1,7207HQ1,7208HQ1,7209HQ1,7210HQ1,7211HQ1,7212HQ1
Applications
High Speed Ceramic Ball Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment.
