Product Specifications
| Prod Model: |
COL5181B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
CATV（Cable Television）Equipment |
| Function: |
Signal Monitoring Equipment |
| Certification: |
CE |
Product Description

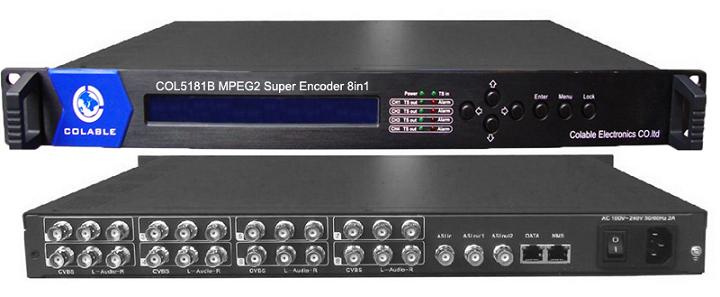

8 channels video encoder support iptv and dtv
Features
1 Support 8AV, 1 ASI Input
2 Support MPEG2 format encoding
3 Support PAL NTSC format
4 Support Maximal 108Mbps ASI input
5 0.8Mbps~20Mbps each channel
6 Support D1, HD1, 2/3D1, 3/4D1 resolution
7 Support multiplexer function
8 Support ASI and IP output
9 Support Keyboard and LCD operation
10 Update device through NMS port
| Input | 8 CVBS inputs, BNC interface | | 8 pairs unbalanced stereo audio input, BNC interface | | 1 ASI input, BNC interface | | Video | Resolution | PAL: 720× 576_50i, 704*576_50i, 640*576_50i,
320*288_50i, 176*288_50i, , 176*144_50i | NTSC: 720× 480_60i, 544× 480_60i, 352× 480_60i
320*240_60i, 176*240_60i, 176*120_60i | | Encoding | MPEG-2 MP@ML | | Bit-rate | 0.125Mbps~19Mbps each channel | | Rate Control | CBR/VBR | | GOP Structure | IPPPP, IBPBP, IBBPB, IBBBP. | | Advanced Pretreatment | De-interlacing, noise reduction, sharpening | | Audio | Encoding | MPEG1 Audio Layer 2, LC-AAC, HE-AAC | | Sampling rate | 32 KHz, 44.1 KHz, 48KHz | | Bit-rate | 32Kb/s _384Kb/s each channel | | Multiplexing | 1 ASI input multiplexed with local 8 channels of TS | | Stream output | 2*ASI output, BNC interface | | 1 MPTS over UDP, 10/100Base-T Ethernet interface (UDP uni-cast/multicast); 8 SPTS | | System function | LCD/keyboard operating, NMS supporting | | Chinese-English control interface | | Ethernet software upgrade | | Miscellaneous | Dimension (W× L× H) | 482mm× 455mm× 44mm | | Approx weight | 4kg | | Temperature | 0~45 (work), -20~80(Storage) | | Power | AC 100V-220V± 10%, 50/60Hz | | Consumption | 17.6W |
|
As the outstanding supplier of Digital broadcasting and TV network, Colable electronics is expert in transforming
Television system from analogue to digital, or building new digital system with lest cost and most effective way. What we can offer is total solution of DVB-C/S/T from headend to user end with the way of cable, MMDS, DTH. And our projects relate to different areas, such as city or village coverage, hotel, hospital, university, casino etc.
Colable develops well all the time because it owns one excellent technology and sales team. And the most important point is colable can always provide the most suitable solution to clients from traditional to advanced. Calable's products include: IRD, satellite receiver, MPEG2/4 /H. 264 encoder, TS multiplexer, standard alone scrambler, QAM/QPSK/COFDM modulator, CAS&SMS, EPG, DVB-C/S/T set top box, MMDS transmitter, antenna, EoC ( Ethernet over Coaxial ) Data Access System based on two-way HFC network, Epon. We also integrate NVOD, PPV and CATV Equipments: Optical transmitter, receiver, amplifier, tap, splitter, fiber, cable etc to the clients who require.
Colable's perfect products and service win good commend at home and abroad, we will redouble our efforts to meet the next brilliance.
