Analog&Digital Handheld Radio Tc-819dp Dpmr Handheld Two Way Radio

Name: Analog&Digital Handheld Radio Tc-819dp Dpmr Handheld Two Way Radio
Brand: china-manufacturer-directory.com
SKU: 765997115
Availability: InStock
Rating: 4.8 (120 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	2/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

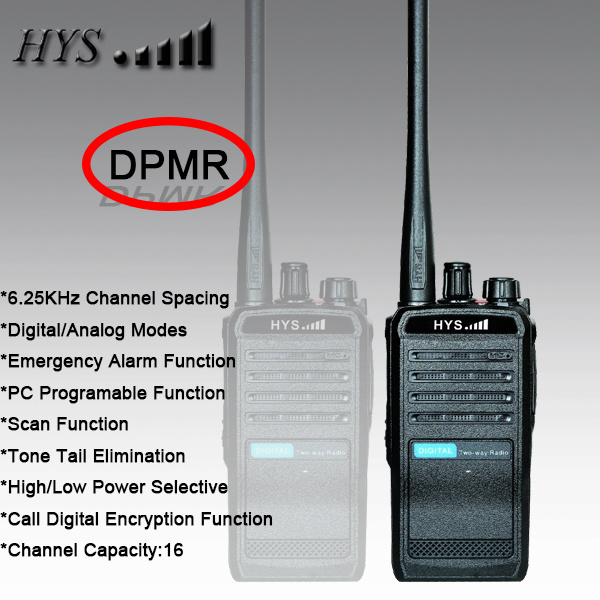

Analog&digital Handheld radio TC-819DP DPMR Handheld two way radio

Individual Call, Group Call, All Call

Remote Kill

6.25KHz Channel Spacing

Digital/Analog Modes

Emergency Alarm Function

PC Programable Function

Scan Function

Tone Tail Elimination

High/Low Power Selective

Call Digital Encryption Function

General Specification
Frequency Range	136-174 MHz; 400-470 MHz	446 MHz
Channel Spacing	12.5KHz(Digital)/ 25KHz(Analog)	6.25KHz(Digital)/12.5KHz(Analog)
Channel Capacity	16
Operating Voltage	DC7.4V±15%
Operating Temperature	-20ºC~ +60ºC
Battery Pack	1800mAh
RF Power	VHF:5W/1W; UHF:4W/1W
Frequency Modulation	4FSK(Digital); 11KΦF3E/16KΦF3E(Analog)
4FSK Modulation Accuracy	≤5%
Adjacent Channel Power	≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥60dB @ 6.25KHz;
Adjacent Channel Selectivity	≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥50dB @ 6.25KHz;
Digital Sensitivity	-110dBm (BER ≤1%)
Dimensions(W×H×D)	60mm × 135mm × 32mm
Weight	242g(With Belt Clip and Antenna)

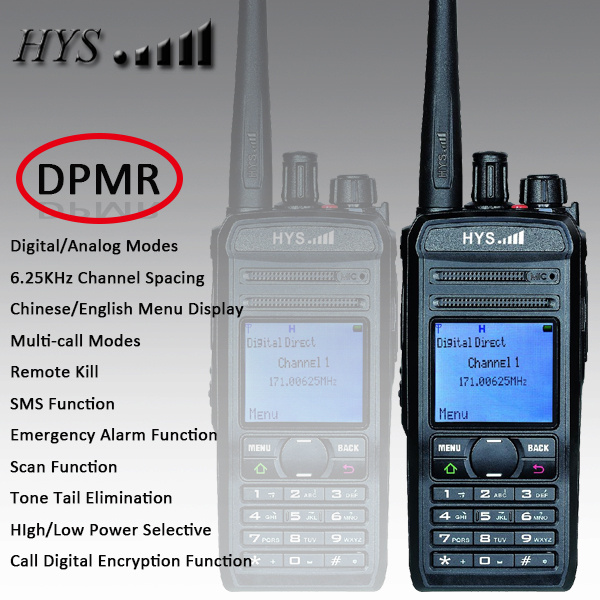

TC-819DP

TC-818DP

Prod Model:	TC-818DP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	136-174 MHz; 400-470 MHz
Channel Spacing:	12.5kHz(Digital)/ 25kHz(Analog)
Channel Capacity:	256
Operating Voltage:	DC7.4V±15%
Battery Pack:	1800mAh
RF Power:	VHF:5W/1W; UHF:4W/1W
4fsk Modulation Accuracy:	≤5%
Digital Sensitivity:	-110dBm (Ber ≤1%)
Application:	Military
Condition:	New
Standard:	Standard
Screen:	Without Screen

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
