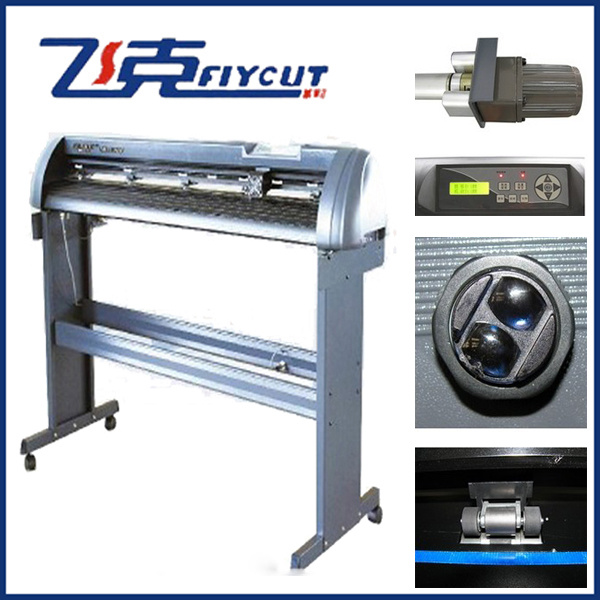

Automatic Feeding Cutting Machine

Product Specifications

Prod Model:	FCT-1350F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max.Feeding Width:	1350mm
Max,Cutting Width:	1250mm*Infinite
Cutting Speed:	50~500mm/S
Motor Driver:	Stepper
Classification:	Flat Knife Cutter
Blade Material:	Metal
Computerized:	Computerized
Driven Type:	Steper
Type:	Reflective Film Cutter

Product Description

Features:
1.Streamline design,brie and natural.
2.more specialized integrated circuit,quick speed,less noise,strong anti-jaming ability,simultaneous speed of curves and straight lines,smoth curves,high precision,more remarkable performance and stablization.
3.The inteligent paper detecting function atomatically halt working when lacks paper.The inrelligent radiation design guarantees the machine works well.
4.It can cut material of at least 16 CM width which creats value for cutomers.
5.Automatic paper feeding with system satisfies the long time cutting of entire volume and over weight materials.
6.The great carver pressure meets needs of cutting all ranks of 3m diamond reflective film available in crrent markets.
7.Standard language and strong software compatibility prodessional software like ARRTCUT,Cutting master,FLEXISIGGN and etc.It can also be output by memory Disk or COM.


Technical parameters:

Max. paper feeding width	1350mm
Max. cutting width	1250mm*infinite
carver pressure	25~500g
cutting speed	50mm/s~500mm/s
Memory	512k,possible to be enlarged to 4M
Interface	RS-232 or Memory Disk
Language format	DM/PL,HPGL
CPU	4 CPU Control
Power supply	AC90V-240V 50-60HZ 60W
Driving system	Stepper
Liquid Crystal Display	Chinese display with backlight
Working environment temperature	-10~35ºC
Working environment humidity	5%-95%

FAQS:

1.How about the payment?

T/T in advance. We can accept 40% deposit before mass production , and balance paid to us before delivery date.


2.How long is the delievery time?

For standard machines, it would be 7 days; For non-standard machines and customized machines according to clients specific requirements, it would be 14~25 days.


3.How about shipment details?

On the basis of FOB or CIF price, we will arrange shipment for you.Others will be arranged by yourself.


4.What about the packing?

Water-proof plastic film package with foam protection in each corner.
