Product Specifications
| Prod Model: |
BCV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Concave Lens |
| Shape: |
Single-lens |
| Material: |
Optical Glass |
Product Description

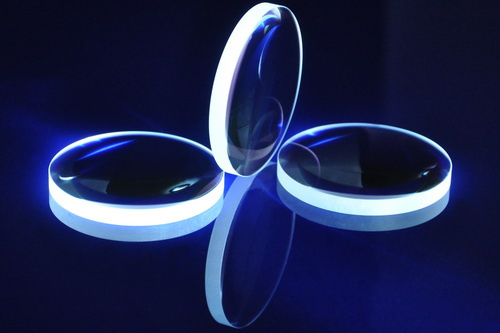

Bi-concave lenses can diverge a collimated beam from a virtual focus and are commonly used in a Galilean-type beam expanders. Bi-Concave lenses have a negative focal length and are always used to diverge a collimatedor converging beam. Boxin provide plano-concave lenses of many materials, such as N-BK7, UV fused silica, SF,CaF2, MgF2, ZnSe, ZnS, and so on.
Diameter: 1.8mm-650mm
Designed Wavelength: 587.6nm
Length Tolerance: ±1%
Profile Tolerance: +0.0/-0.03mm
Thickness Tolerance: ±0.03mm
Profile Surface Form Error:λ/
[email protected] Surface Quality: 20-10
Centering Error: < 1'
Effective Aperture: >90%
Bevel:< 0.2×45°
Material: N-BK7, fused silica, CaF2,MgF2, Baf2, Si, Ge, ZnSe, ZnS, Sapphire and other crystal material
Coating: UV180nm-400nm A:370-675nm B: 650-1050nm C:1050-1620nm D:1.8-2.4um E:3-5um V:532nm 1064nm 808nm 10.6um
Besides customed lenses, we have many lenses in store.
| Part No. | Diameter(mm) | EFL(mm) | BFL(mm) | Center Thickness(mm) | Edge Thickness(mm) | Radius R1=R2(mm) | Material |
| BCV01-001 | 6 | -9 | -9.3 | 1.0 | 2.0 | -9.47 | N-BK7 |
| BCV01-002 | 6 | -12 | -12.3 | 1.0 | 1.7 | -12.57 | N-BK7 |
| BCV01-003 | 9 | -18 | -18.5 | 1.5 | 2.6 | -18.86 | N-BK7 |
| BCV01-004 | 12 | -24 | -24.7 | 2.0 | 3.5 | -25.14 | N-BK7 |
| BCV01-005 | 18 | -38.6 | -39.3 | 2.0 | 4.0 | -40.20 | N-BK7 |
| BCV01-006 | 25 | -50 | -50.8 | 2.5 | 5.5 | -52.10 | N-BK7 |
| BCV01-007 | 12.7 | -30 | -31.0 | 3.0 | 4.3 | -31.51 | N-BK7 |
| BCV01-008 | 12.7 | -50 | -51.2 | 3.5 | 4.3 | -52.27 | N-BK7 |
| BCV01-009 | 25.4 | -50 | -51.0 | 3.0 | 6.1 | -52.19 | N-BK7 |
| BCV01-010 | 25.4 | -75 | -76.2 | 3.5 | 5.6 | -78.11 | N-BK7 |
| BCV01-011 | 25.4 | -100 | -101.3 | 4.0 | 5.6 | -104.04 | N-BK7 |
| BCV02-001 | 12.7 | -15 | -16.0 | 3.0 | 6.0 | -14.21 | F-SILICA |
| BCV02-002 | 12.7 | -30 | -31.0 | 3.0 | 4.5 | -27.98 | F-SILICA |
| BCV02-003 | 12.7 | -50 | -51.0 | 3.0 | 3.9 | -46.32 | F-SILICA |
| BCV02-004 | 25.4 | -50 | -51.2 | 3.5 | 7.0 | -46.39 | F-SILICA |
| BCV02-005 | 25.4 | -75 | -76.2 | 3.5 | 5.8 | -69.32 | F-SILICA |
| BCV02-006 | 25.4 | -100 | -101.2 | 3.5 | 5.3 | -92.24 | F-SILICA |
| BCV02-007 | 25 | -100 | -100.9 | 2.5 | 4.2 | -92.08 | F-SILICA |
