Product Specifications
| Prod Model: |
PCXCY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: |
Single-lens |
| Material: |
Optical Glass |
| Type: |
Cylindrical Lens |
| Coating: |
Ar (a, B, C, UV, 355, 532, 808, 980, 1064) |
Product Description

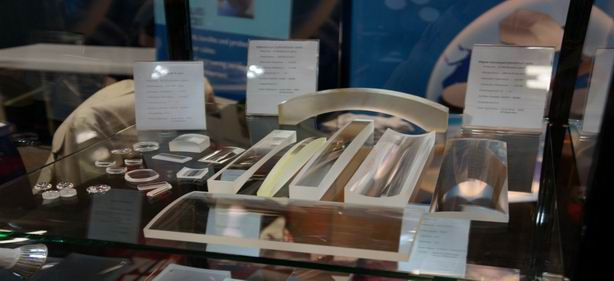

Plano-convex cylindrical lens focuses beam only in one direction while the other direction does not focus, similar plano-convex lens , but only on a limited cross-section. Cylindrical lens can make a luminous point of light to a line,and and can create surface light with two vertical cylindrical lens, Compared with spherical lenses, cylindrical lenses more difficult to manufacture. We offers a variety of cylindrical lenses, including H-K9L, H-ZF13, UV fused silica, ZnSe, etc. Besides, two surfaces of the cylindrical lens can be composed with one sphere and one cylinder.
Using CNC milling and polishing machines, with Zygo Interferometer to assure surface quality accuracy,undertaking a variety of special cylindrical products, including dual surface products comprises of cylindrical and spherical 1000mm*600mm, annually output of 150,000 cylindrical lens supplying to Europe and Japan consumption.
Diameter: 3.5mm-450mm
(Special 1000mmX600mm)
Diameter Tolerance: +/-0.02mm
Thickness Tolerance: +/-0.02mm
Centering Error: <3 arc minutes
Surface Quality: 20/10
Form Error:λ/4@633nm
Clear Aperture: 90%
Material: Optical Glass, Quartz, CaF2,
ZnSe, Sapphire, Silicon etc.
Besides customed lenses, we have many lenses in store.
| Part No. | Diameter(mm) | EFL(mm) | BFL(mm) | Center Thickness(mm) | Edge Thickness(mm) | Radius R1(mm) | Material |
| PCXCY01-001 | 6 | 12 | 10.6 | 2.2 | 1.4 | 10.55 | N-BK7 |
| PCXCY01-002 | 6 | 18 | 16.8 | 1.8 | 1.3 | 9.30 | N-BK7 |
| PCXCY01-003 | 6 | 24 | 22.9 | 1.6 | 1.2 | 12.40 | N-BK7 |
| PCXCY01-004 | 8 | 13.5 | 11.8 | 2.7 | 1.4 | 7.00 | N-BK7 |
| PCXCY01-005 | 12.5 | 12.5 | 7.6 | 7.5 | 2.7 | 6.48 | N-BK7 |
| PCXCY01-006 | 12.5 | 25 | 23.1 | 2.9 | 1.3 | 12.96 | N-BK7 |
| PCXCY01-007 | 12.5 | 50 | 48.8 | 1.9 | 1.1 | 25.93 | N-BK7 |
| PCXCY01-008 | 12.5 | 75 | 73.7 | 2.0 | 1.5 | 38.76 | N-BK7 |
| PCXCY01-009 | 12.5 | 100 | 98.7 | 2.0 | 1.6 | 51.68 | N-BK7 |
| PCXCY01-010 | 25 | 25 | 17.8 | 11.0 | 1.5 | 12.96 | N-BK7 |
| PCXCY01-011 | 25 | 50 | 47.4 | 4.2 | 1.0 | 25.93 | N-BK7 |
| PCXCY01-012 | 25 | 75 | 73.2 | 3.1 | 1.0 | 38.89 | N-BK7 |
| PCXCY01-013 | 25 | 100 | 98.2 | 3.2 | 1.6 | 51.85 | N-BK7 |
| PCXCY01-014 | 25 | 125 | 123.0 | 3.0 | 1.8 | 64.60 | N-BK7 |
| PCXCY01-015 | 25 | 150.5 | 148.2 | 3.5 | 2.5 | 77.78 | N-BK7 |
| PCXCY01-016 | 50 | 75 | 68.1 | 10.5 | 1.4 | 38.89 | N-BK7 |
| PCXCY01-017 | 50 | 100 | 94.9 | 7.7 | 1.3 | 51.85 | N-BK7 |
| PCXCY01-018 | 50 | 150 | 146.5 | 5.3 | 1.2 | 77.78 | N-BK7 |
| PCXCY01-019 | 4.5(H)×5.5(L) | 5 | 2.8 | 3.3 | 2.0 | 2.58 | N-BK7 |
| PCXCY01-020-H7L10 | 7(H)×10(L) | 14.8 | 12.9 | 2.8 | 2.0 | 7.63 | N-BK7 |
| PCXCY01-020-H7L15 | 7(H)×15(L) | 14.8 | 12.9 | 2.8 | 2.0 | 7.63 | N-BK7 |
| PCXCY01-021 | 7(H)×15(L) | 20 | 18.1 | 2.8 | 2.2 | 10.30 | N-BK7 |
| PCXCY01-022 | 10(H)×10(L) | 60 | 58.3 | 2.6 | 2.2 | 31.00 | N-BK7 |
| PCXCY01-023 | 10(H)×10(L) | 70 | 68.1 | 2.6 | 2.3 | 36.10 | N-BK7 |
| PCXCY01-024 | 10(H)×18(L) | 80 | 77.3 | 4.0 | 3.7 | 41.30 | N-BK7 |
| PCXCY01-025 | 10(H)×20(L) | 19.4 | 12.8 | 10.0 | 8.7 | 10.00 | N-BK7 |
| PCXCY01-026 | 10(H)×20(L) | 20 | 17.8 | 3.3 | 2.0 | 10.34 | N-BK7 |
| PCXCY01-027 | 12.5(H)×25(L) | 20 | 17.6 | 3.6 | 1.5 | 10.34 | N-BK7 |
| PCXCY01-028 | 12.5(H)×25(L) | 25 | 23.0 | 3.0 | 1.4 | 12.92 | N-BK7 |
| PCXCY01-029 | 12.5(H)×25(L) | 50 | 48.7 | 2.0 | 1.2 | 25.84 | N-BK7 |
| PCXCY01-030 | 12.5(H)×25(L) | 75 | 73.7 | 2.0 | 1.5 | 38.76 | N-BK7 |
| PCXCY01-031 | 12.5(H)×25(L) | 100 | 98.7 | 2.0 | 1.6 | 51.68 | N-BK7 |
| PCXCY01-032 | 12.5(H)×25(L) | 150 | 148.7 | 2.0 | 1.8 | 148.66 | N-BK7 |
| PCXCY01-033 | 25(H)×24(L) | 80 | 77.4 | 4.0 | 2.1 | 41.34 | N-BK7 |
| PCXCY01-034 | 25(H)×50(L) | 25 | 17.7 | 11.0 | 1.5 | 12.96 | N-BK7 |
| PCXCY01-035 | 25(H)×50(L) | 50 | 47.2 | 4.2 | 1.0 | 25.93 | N-BK7 |
| PCXCY01-036 | 25(H)×50(L) | 75 | 72.9 | 3.1 | 1.0 | 38.89 | N-BK7 |
| PCXCY01-037 | 25(H)×50(L) | 100 | 98.0 | 3.2 | 1.6 | 51.85 | N-BK7 |
| PCXCY01-038 | 25(H)×50(L) | 150 | 147.7 | 3.5 | 2.5 | 77.78 | N-BK7 |
| PCXCY01-039 | 30(H)×17(L) | 100 | 96.6 | 5.2 | 3.0 | 51.68 | N-BK7 |
| PCXCY01-040 | 50(H)×25(L) | 75 | 68.1 | 10.5 | 1.4 | 38.89 | N-BK7 |
| PCXCY01-041 | 50(H)×25(L) | 100 | 94.9 | 7.7 | 1.3 | 51.85 | N-BK7 |
| PCXCY01-042 | 50(H)×25(L) | 150 | 146.5 | 5.3 | 1.2 | 77.78 | N-BK7 |
