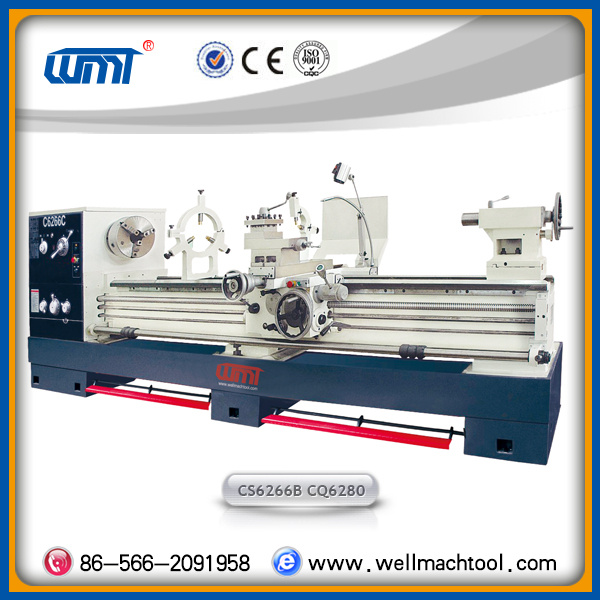

Big Bore Lathe Machine (Metal Lathe Machine CQ6280 C6280)

Name: Big Bore Lathe Machine (Metal Lathe Machine CQ6280 C6280)
Brand: china-manufacturer-directory.com
SKU: 771329665
Availability: InStock
Rating: 4.7 (95 reviews)

Supplier:	WMT CNC INDUSTRIAL CO., LTD.
Price:	US $ 10350-10385SET
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CQ6280 C6280
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spindle Bore:	105mm
Max. Swing Over Bed:	800mm
Distance Between Centers:	1500/2000/3000mm
Machine:	Lathe
Voltage:	110V, 220V, 380V
Clour:	Customer Appoint
Package:	Fumigated Poly-Wood Case
Payment:	T/T, Paypal, LC, West Union
Type:	Horizontal Lathe
Power Source:	Electric
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Setting Mode:	Floor-type
Precision:	High Precision
Processing Accessory:	Steel Workpiece
Tool Holder:	4-Station Toolpost

Product Description

Feature
removable bridge for machining of large parts
high accuracy and low-noise operation even at high cutting power
heavy and large bed
hardened guideways (>HB 400)
large spindle capacity 105 mm for machining of long parts
manual central lubrication
multi-disk clutch for soft startup with heavy parts
automatic lubrication of headstock and main drive
protected leadscrew
overload protection for feed shaft and leadscrew
support moves in linear and cross direction via rapid feed

Main specification :

TYPE			CQ6280		C6280
Swing Over Bed		Φ800mm
Swing Over Cross Slide		Φ570mm				Φ560mm
Swing in Gap		Φ1035mm				Φ1040mm
Length of Gap		250mm
Center Height		400mm
Distance Between Centers		1500mm/2000mm/3000mm
Width of Bed		400mm				510mm
Max. Section of Tool		25mm × 25mm
Max. Travel of Cross Slide		420mm				420mm
Max. Travel of Compound Rest		230mm				230mm
Spindle Bore		Φ105mm
Spindle Nose		D1-8
Taper of Spindle Bore		Φ113mm(1:20)/MT5
Spindle Speed Step		16
Range of Spindle Speed		25~1600rpm				17~1100rpm
Leadscrew Pitch		Φ40mm×2T.P.I. or Φ40mm×12mm
Inch Threads Range		7/16~80T.P.I. (54 kinds)
Metric Threads Range		0.45~120mm (54 kinds)
Diametrical Pitches Range		7/8~160DP (42 kinds)
Module Pitches Range		0.25~60MP (46 kinds)
Longitudinal Feeds Range in Metric		0.044~1.48mm/rev (25 kinds)
Longitudinal Feeds Range in Inch		0.00165"~0.05497"/rev (25 kinds)
Cross Feeds Range in Metric Lead Screw		0.022~0.74mm/rev (25 kinds)
Cross Feeds Range in Inch Lead Screw		0.00083"~0.02774"/rev (25 kinds)
Travel of Tailstock Sleeve		235mm
Dia. of Tailstock Sleeve		Φ90mm
Morse Taper of Tailstock Sleeve		MT5
Power of Main Motor		7.5kW(10HP)				11kW (15HP)
Power of Coolant Pump		0.09kW (1/8HP)
DIMENSION AND WEIGHT
Overall Dimension (L×W×H)	321/371/471cm ×123cm×167cm			321/371/471cm ×136cm×167m
Packing Size (L×W×H)	324/374/474cm ×114cm×191cm			324/374/474cm ×127cm×191cm
Net Weight	2850/3050/3450kg			3100/3300/3900kg
Gross Weight	3180/3450/3980kg			3450/3750/4450kg
