Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
by Carton Box |
| Port: |
Single Port |
| Delivery Time: |
15days After The Receipt of Paymnet |
| Weight (Kg): |
0.1 |
| Working Temperature: |
-25'c~+70'c |
| Working Humidity: |
≤ 95% |
| Type: |
Lightning Protection |
Product Description
Advantage
1. Non-interfering, Micro-Insertion Loss
2. Low Voltage Protection
3. The product with 16 terminals can be installed on standard hanger
4. Quick respond
5. Simple installation and maintenance
Brief Introduction

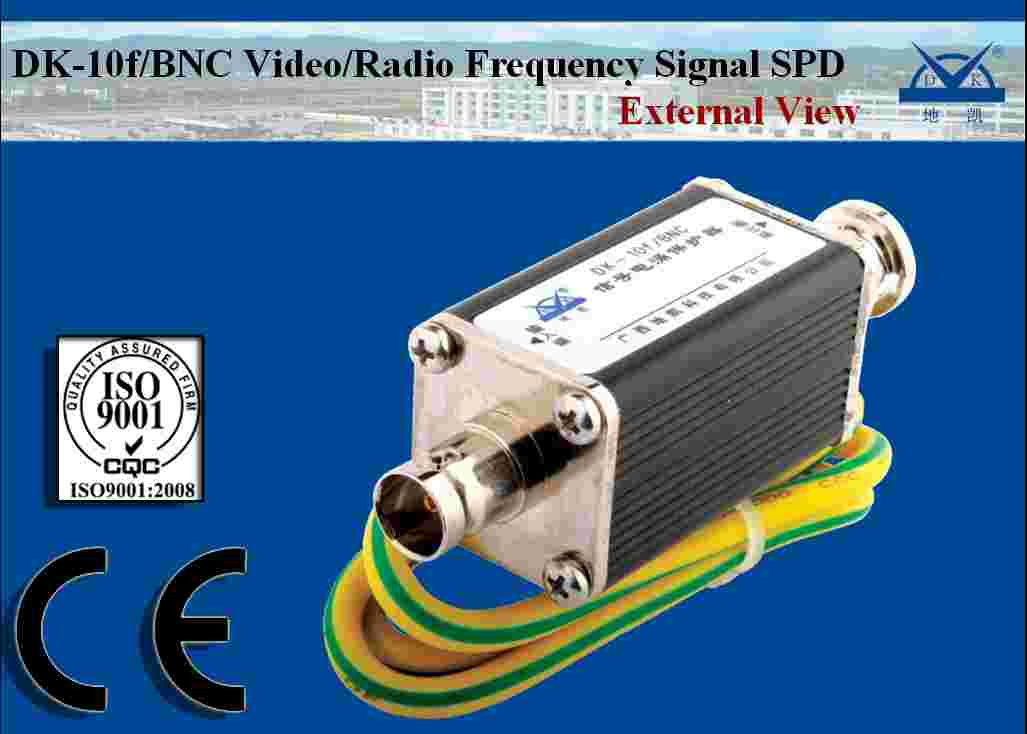

Video/Radio Signal Surge Protective Device is designed according to the IEC standard and National Standard. It can be used for single BNC terminal, 16 BNC terminals, F terminal and N terminal lightning protection.
This product is suitable for the monitoring system BNC terminal, matrix BNC terminal, optical transceiver BNC terminal, Video Camera BNC terminal as lightning surge protection.
This product is produced according to the discharging, clamping, filtering principles, that realized high efficient discharging lightning currents and resistance of EMP shock which caused by lightning currents. It has advantages of multi classes' protection, extremely low residual voltage, perfect transmission performance, quick respond, large discharging capacity, simple installation and connection, easy maintenance.
DK Company can produce this product with different classes working voltage and various numbers of terminals according to the customer's requirement. The 8/20us maximum discharging currents (Imax) can reach 10kA.
|
Type |
DK-10f/BNC |
|
Technical Parameter |
Video |
|
Nominal Working Currents (A) |
0.25 |
|
Nominal Discharging Currents 8/20 us (kA) |
5 |
|
Maximum Discharging Currents 8/20 us (kA) |
10 |
|
Protection Voltage Class under the Nominal Discharging Currents (V) |
≤ 20 |
|
Protection Voltage Class under 1kV/uS (V) |
8 |
|
Responds Time |
≤ 1ns |
|
Insertion Loss (dB) |
≤ 0.3 at 30MHz |
|
Data Transfer Rate (bps) |
16M |
|
Parasitic Capacitance (pF) |
≤ 50 |
|
Impedance |
≤ 75Ω |
|
Input Impedance |
≤ 4Ω |
|
Protection Model |
Core-Shielding-PE |
|
Way of Connection |
Cascade |
|
Type of Connecting Terminal |
BNC-K/J |
|
Dimension |
79X25X25mm |
|
Weight (kg) |
0.1 |
|
Working Temperature |
-25' c+70' c |
|
Working Humidity |
≤ 95% |
Guangxi Dikai Sci & Tech Co., Ltd. Was established in June 1989, which specializes in the development and production of lightning protective products, and the research and service of lightning protective technology. It has been a top lightning protection company in China after more than 20 years of development. The company now has a top-ranking lightning protection test center, a lightning proving ground, an intellectualized building for scientific research. The products of the company have won more than 10 national patents and possess ISO 9001: 2000 certificate and CE certificate.
