Product Specifications
| Prod Model: |
RJ11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Dk-Ndct/Rj11 |
| Operating Voltage: |
5V DC |
| Nominal Discharging Current(in): |
5ka(8/20us) |
| Max. Discharging Current(in): |
10ka(8/20us) |
| Certificate: |
CE |
| Connector: |
Rj11 |
| International Standard: |
Iec61642-1 |
| Housing Material: |
Aluminum |
| Data Transmission Rate: |
2m |
| Housing Protection Grade: |
IP30 |
Product Description

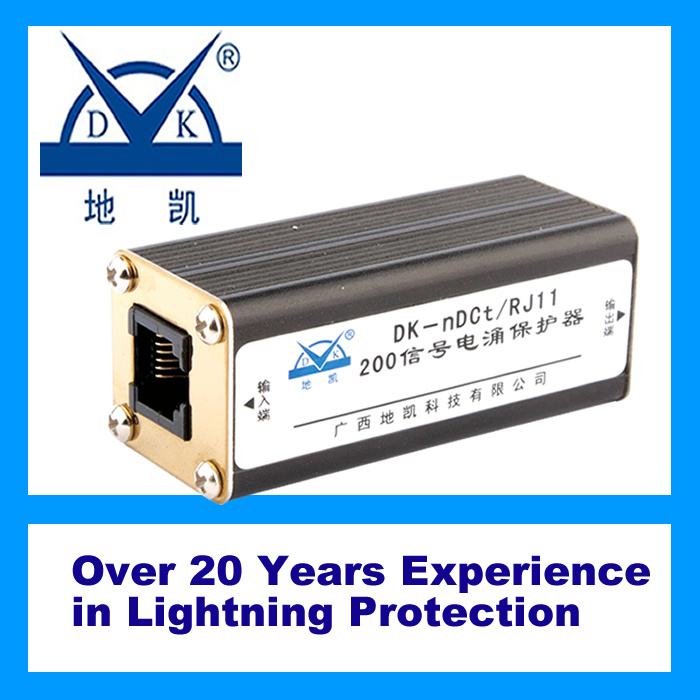

RJ11 Signal Surge Protector
1. 22 years' experience
2. CE approved RJ11 signal surge protector
3. ISO9001: 2008
4. Optional working Voltage: DC24V/48V
DK-nDCt/RJ11 200 Signal Surge protector
Superior signal lightning arrester, CE certificate, ISO9001 certificate, quality and safety guaranteed, more favorable price
This product is designed according to IEC lightning protection product. It is for the lightning protection of signal circuit with RJ11 port such as telephone line, data communications circuit and SPC exchanger.
OEM, Privare label is welcomed. We have specilized in lightning protection for more than 20 years. We promise to supply you the highest quality lightning protection products and best price. You will also enjoy small MOQ and fast shipment with us.
|
Product Name |
DK-nDCt/RJ11200 signal SPD |
|
Shell Material |
Aluminum |
|
Protection Grade of Shell |
IP30 |
|
Max. Continous Operating Voltage(V) |
220 |
|
Nominal Discharing Current(8/20us) |
5kA |
|
Max. Discharing Current(8/20us) |
10kA |
|
Limited Voltage(10/700us)V |
< 300 |
|
Transfer Rate(bit/s) |
2M |
|
Insert Loss(dB) |
< 0.5 |
|
Impendence |
10 Omega |
|
Interface Mode |
RJ11 |
|
Working Temperature |
-25' C~+70' C |
|
Working Humidity |
< 95% |
|
Size(mm) |
59x25x25 |
|
Weight(kg) |
0.08 |
Guangxi Dikai Sci & Tech Co., Ltd. Was established in June 1989, which specializes in the development and production of lightning protective products, and the research and service of lightning protective technology. It has been a top lightning protection company in China after more than 20 years of development. The company now has a top-ranking lightning protection test center, a lightning proving ground, an intellectualized building for scientific research. The products of the company have won more than 10 national patents and possess ISO 9001: 2000 certificate and CE certificate.
