Feature
Precision ground and supersonic frequency
The spindle system is high in rigidity and accuracy
The noise of the machine is low
Main specification :

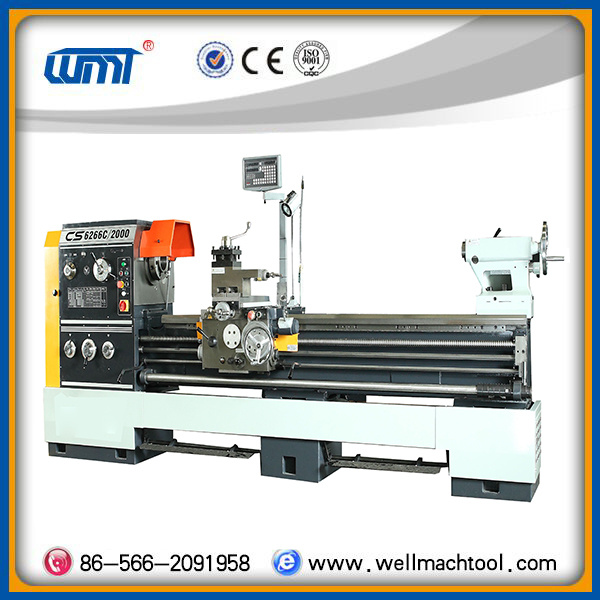

Model No. | C6266C |
| |
Specifications |
Distance between centers | 1000/1500/2000/3000 mm |
Swing over bed | 660 mm |
Swing over carriage | 420 mm |
Swing over gap | 870 mm |
Bed width | 405 mm |
Spindle bore | 105 mm |
Taper of spindle bore | 113 mm 1:20 |
Spindle nose | D1-8 |
Step of spindle speeds | 12 |
Range of spindle speeds | 36-1600 rpm |
Range of cross feeds | 0.027-1.07 mm/r |
Range of longitudinal feeds | 0.063-2.52 mm/r |
Range of inch threads | 28-2 T.P.I/25 |
Range of metric threads | 1-14 mm/22 |
Range of moduler threads | 0.5-7 mm/18 |
Range of diametrical threads | 4-56 D.P./24 |
Rapid feed of cross traverse | 1.9 m/min. |
Rapid feed of longitudinal traverse | 4.5 m/min. |
Top slide travel | 145 mm |
Cross slide travel | 310 mm |
Max. size of tool (WxH) | 25X25 mm |
Tailstock quill diameter | 75mm |
Tailstock quill travel | 150mm |
Taper of tailstock quill | MT5 |
Motor | 7.5 kw |
Packing size | 2500/3000/3500/4500x1100x1650 mm |
Net weight | 3000/3200/3400/3900 kg |
Standard Accessories | Optional Accessories |
3-jaw chuck (325mm) | Quick change tool post |
4-jaw chuck (400mm) | Turning tools |
Face plate | Leadscrew cover |
Steady rest | Chuck guard |
Follow rest | Tool post cover |
Splash guard | Digital readout system |
Stand | Taper turning attachment |
Halogen work lamp | One piece casting stand |
Toolbox & tools | |
Coolant system | |
Foot brake | |
Five position carriage stop | |
