Ceiling Type Ahu

Name: Ceiling Type Ahu
Brand: China-Manufacturer-Directory.com
SKU: 709758545
Availability: InStock
Rating: 4.5 (105 reviews)

Supplier:	Tech Well Industries Co., Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZK15-4(6/8)CR~ZK140-4(6/8)CR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Air Handling Unit
Operating Voltage:	230 VAC
Mounting:	Ceiling Mount
Certification:	CE
Condition:	New
Application Fields:	Central Air Conditioning

Product Description

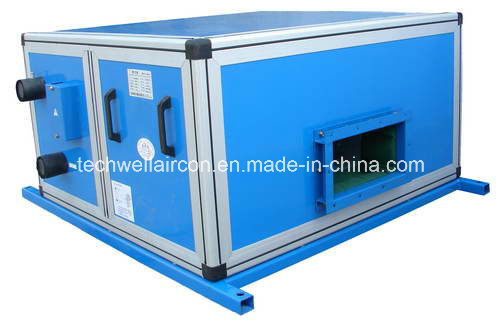

Ceiling Air Handling Unit
- Coling capacity: 11KW to 74KW;
- Heating capacity: 18KW to 120KW;
- Air flow range: 2000 to 15000 cubic meter per hour;
- Compact structure, good looking, low noise, light weight;
- Adopt nylon-web plate filter, providing convenient drawing;
- Stainless steel or galvanized steel condensing water tray
Optional, free from rust and erosion.

*Ceiling type*
Air Flow m3/h	dry ball temperature 34ºC					wet ball temperature 28ºC				air inlet temperature 4ºC
	cooling capacity kW			water flow l/s			water resistance kPa			heating capacity kW			water flow l/s
	4 rows	6 rows	8 rows	4 rows	6 rows	8 rows	4 rows	6 rows	8 rows	4 rows	6 rows	8 rows	4 rows	6 rows	8 rows
1500A	19.9	25.7	28.9	0.95	1.23	1.39	22.4	12.6	7.6	22.3	28.8	32.4	0.53	0.69	2.77
2000A	26.8	34.5	38.7	1.28	1.65	1.85	26	21.2	8.8	30	38.6	43.3	0.72	0.92	1.03
2500A	33.7	40.7	46.4	1.61	1.94	2.22	45.6	21.5	13.6	37.7	45.6	52	0.9	1.09	1.24
3000A	40.1	49.2	56.5	1.91	2.35	2.7	59.4	24.7	18.5	44.9	55.1	63.3	1.07	1.32	1.51
4000A	53.1	68.7	77.4	2.53	3.28	3.7	16.2	32.3	41.1	59.5	76.9	86.7	1.42	1.84	2.07
4000B	55.9	71	78.3	2.67	3.39	3.74	28	30.1	43.7	62.6	79.5	87.7	1.49	1.9	2.09
5000A	67.9	87.1	97.6	3.24	4.16	4.67	18.3	44.4	55.8	76	97.6	109	1.81	2.33	2.61
5000B	73.7	89.2	103	3.52	4.26	4.93	38.5	32.3	58.3	82.5	99.9	116	1.97	2.38	2.76
6000A	81.3	105	117	3.88	5.01	5.6	15.7	48.6	60.6	91.1	118	131	2.17	2.81	3.13
6000B	84.5	108	118	4.03	5.13	5.65	40.1	36.7	65	94.6	120	133	2.26	2.87	3.16
7000A	97.2	123	138	4.64	5.87	6.62	17.1	51.1	64.8	109	138	155	2.6	3.29	3.69
7000B	101	121	134	4.82	5.78	6.42	41.2	50.3	49.5	113	136	150	2.7	3.23	3.58
8000A	114	143	158	5.44	6.83	7.57	25.4	43.2	73.2	128	160	177	3.05	3.82	4.22
8000B	108	142	155	5.16	6.78	7.4	15.9	49.4	43.6	121	159	174	2.89	3.79	4.14
9000A	127	159	177	6.06	7.59	8.48	29.8	60.4	82.3	142	178	198	3.39	4.25	4.73
9000B	119	159	174	5.68	7.59	8.3	18.3	60.4	38.4	133	178	195	3.18	4.25	4.65
10000A	141	178	198	6.73	8.5	9.47	35.3	62.1	96.8	158	199	222	3.77	4.76	5.29
10000B	140	181	198	6.68	8.64	9.47	24.2	62.6	49.2	157	203	222	3.74	4.84	5.29
12000A	171	215	237	8.16	10.3	11.4	40.9	75.3	98.4	192	241	265	4.57	5.75	6.33
12000B	166	216	234	7.92	10.3	11.2	29.6	69.8	58.5	186	242	262	4.44	5.77	6.26
14000A	202	251	278	9.64	12	13.3	45.5	90.8	105	226	281	311	5.4	6.71	7.43
14000B	189	251	272	9.02	12	13	24.8	79.8	86.8	212	281	305	5.05	6.71	7.27

A: Single fan motor/B: Double fan motor

Tech Well Industries Co., Limited is a professional supplier of HVAC products. Tech Well focus on offering wide range solution of products to serve our clients' need. Our products lines includes different types HVAC equipment:

- Central air conitioning, includes Water cooled water chiller, air cooled screw water chiller, air cooled modular chiller, ground source heat pump, different types of fan coil units, and air handling units.

- Commercial air conditioning, including Rooftop air conditioners and VRF air conditioning systems.

- Variety types of mini-split air conditioners such as wall mounted split type, floor standing type, cassette type, floor ceiling type, duct type, etc.

- Tech Well offers industrial dehumidifiers as well, Including Concealed duct type, floor standing type and handle mobile type.

Wide Range portfolio provides complete solution on requirement of different projects. Tech Well promises to provide high quality products, rapid reply and support to clients, OEM and ODM manufacturing to our clients.

Tech Well's products are selling world wide, our main markets are Europe, Asia, Middle East, South America, and Africa. With high products quality, Tech Well's products are highly welcomed by his customers.

For providing a better service to our clients, Tech Well will offer outsourcing service on accessaries. Tech Well can help sourcing water pumps, pre insulated air duct panels, air dampler, fire dampler air curtain, air grilles and diffusers, PPR pipe, valves for water system, etc, to provide complete air conditioning and ventilation products and accessories support our clients, so as to offer our customers a carefree and one stop buying from Tech Well.

Tech Well always aim to offer high quality products with reasonable price to support our clients. As our slogan Says "Well Technology, Well Satisfactory", we will Make our best to satisfy your requirement With our technological products.

Hope to build up nice cooperation with you!
