Centro De Torneado CNC, Turning Machine Tool with Power Turret
Product Specifications
| Prod Model: |
CNC450B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Rotation Diameter On Lathe' Body: |
450 mm |
| Max.Work Piece Length: |
750/1000/1500 mm |
| Max.Turning Diameter: |
400 mm |
| Spindle Nose Type And Code: |
A8 mm |
| Hydraulic Chuck: |
250 (10") mm |
| Front Spindle Bore Taper: |
1:20 |
| Spindle Bore: |
60 mm |
| Spindle Form: |
Servo Spindle Unit |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Centre CNC Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

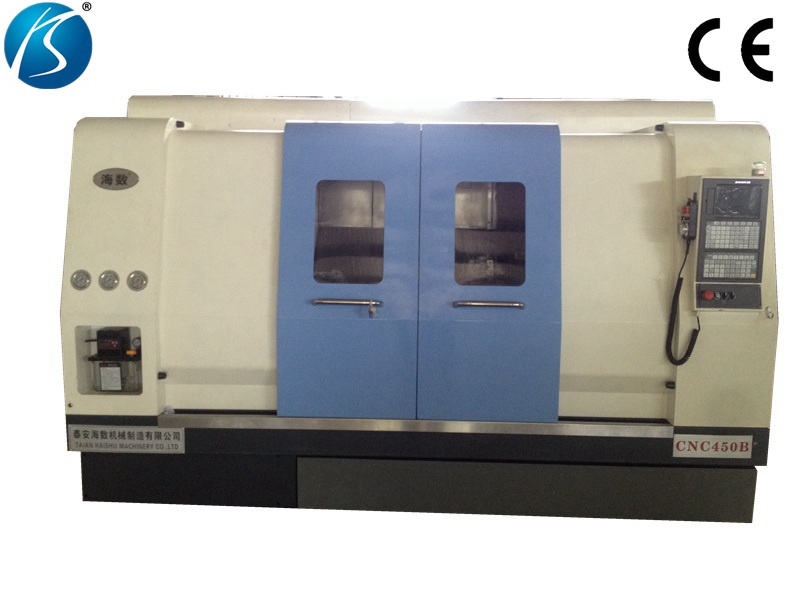

CNC turning center
CNC450B
Max.rotation diameter on lathe' body: 450 mm
Max.work piece length: 750/1000/1500 mm
Max.turning diameter: 400 mm
Spindle nose type and code: A8 mm
Hydraulic chuck: φ250 (10") mm
Front spindle bore taper: 1:20
Spindle bore: 60 mm
Spindle form: Servo spindle unit
Servo spindle speed range: 0-4000 rpm
X/Z Rapid traverse: 40000 mm/min
Main servo motor power: 11 kW
C-axis(Turret power axis) motor power: 5.5 kw
X/Z-axis motor max.torque: 10 N.m
Y-axis travel(optional): +45/-45 mm
Power specifications: 380±10%. 50Hz±1Hz
Turret transfer time (one station): 1.6(12) s
Turret transfer repeat positioning accuracy: 0.005" mm
X-axis travel: 300 mm
Z-axis travel: 1100/1350/1850 mm
C-axis(Turret power axis) max.speed: 4000 rpm
Hydraulic servo turret form: Horizontal 12-station servo power turret
Turret cylinder clamping force: 4240 kg
Turret hydraulic power source: 40 kg/cm²
Power tool holder specification: VDI40 DIN5480
Tailstock sleeve diameter/ travel: 70/100 mm
Tailstock tapered bore taper: 4# Morse
Tailstock form (programming optional): Electric drive
Tailstock sleeve form: Hydraulic drive
Knife handle size: 25*25 mm
Net weight: 5400 kg
Size(L×W×H): 2700/3000/3500*1650*1900 mm
Taian Haishu Machinery Co., Ltd. is a professional production mechatronic product, collection development, manufacture, sales of high-tech enterprises. Company under the two divisions: One is the CNC machine tools division, the leading product is the "haishu" brand of CNC lathes and machining centers; One is the test equipment division, the leading product is "Taishanhaite" brand common rail test bench and injectoin pump, fuel injector test bench. Founded in March 2001, covers an area of 15000m2, building area of 8000m2, fixed assets 16 million yuan(RMB), has passedISO9001: 2008 international quality management system certification and European CE certification. The company has strong technical force, with a group of young and promising in the machine and test rig design and manufacture, electrical design and application of CNC technology and software development expertise and skills. Advanced 2D and 3D CAD, document management to achieve the PDM. Product innovation, Equipment CNC, Management information, Which has become the industry technology leader.
The company has a Ministry of Internal Trade and the Ministry of Foreign Trade, with independent import and export rights. The products are sold to more than 20 domestic provinces, cities and autonomous regions, and exported to 30 countries including: USA, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Czechoslovakia, Lebanon, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Russia, Belarus, Lithuania, Bahrain, Korea, India, Indonesia, Malaysia, Iran, Thailand, Philippines, Mongolia.
Main products: 1. Horizontal flat bed CNC lathe, 2. Horizontal slant bed CNC lathe, 3. Vertical CNC lathe, 4. CNC turning center, 5. CNC pipe thread lathe, 6. CNC milling machine, 7. CNC machining center, 8. CNC grinding machine.
Characteristic services: Bear machining overall program design and implementation. Include: Site planning, equipment layout, tooling tool provide, processing program design, remote operation monitoring. Machine shop to achieve unmanned.
The company has many years of experience in development and manufacturing of CNC machine tools, "technology innovation, integrity service" as a business philosophy, with new and old customers at home and abroad in close cooperation and common development.
