| Supplier: | Jinan Chenda Testing Machine Manufacturing Co., Ltd. |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1/Set |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | JB-300B |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Impact Testing Machine |
| Weight: | 100-500Kg |
| Power Source: | AC380V |
| Maxcapacity: | 300j |

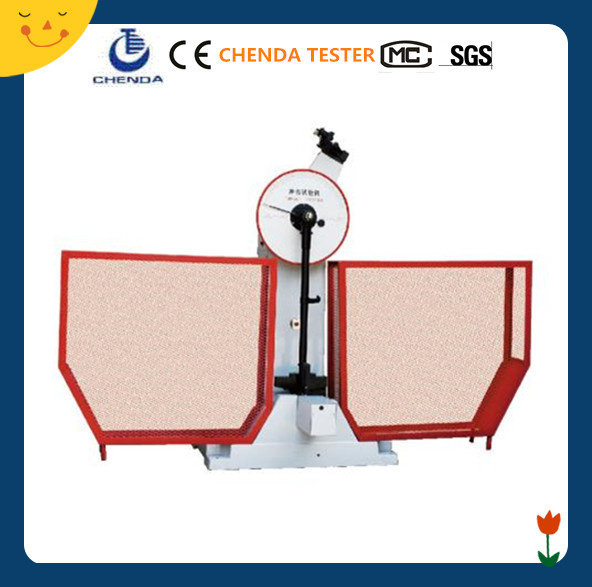

JB-300B Charpy pendulum impact test machine for metal impact test impact testing machine price
Main Functions:
It mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load. This machine can be operated semi-automatically. The pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.

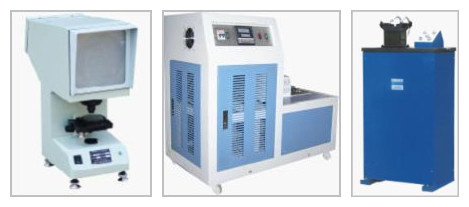

Corollary equipment:

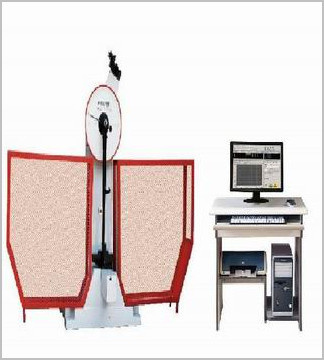

Computer control impact tester type:
Packing & shipping:
Packing with standard export wooden cases.
Shipping by sea with CFS from Qingdao sea port or for your requirement.
| Specification | JB-300 |
| Impact energy | 300J 150J |
| Impact velocity | 5.2m/s |
| Raising angle | 150° |
| Standard span | 40mm |
| Round angle radius of grips | R1-1.5mm |
| Round angle radius of striking | R2-2.5mm |
| Power supply | 3 phase, 380v,50HZ,180W |
| Dimension(mm) | 2124*600*1340 |
| Net weight | 450kg |
| Size of specimen | 10mm*10mm*55mm(U,V2mm Notches) |
