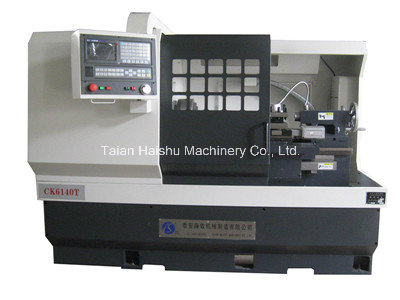

China CNC Lathe Machine Ck6140t CNC Lathe and Metal Machine Tools with ATS Siemens
Product Specifications
| Prod Model: |
CK6140T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Big Spindle Bore Dia: |
70mm |
| Fast-Moving Feed(mm/Min): |
X - Axis:6000 Z - Axis:8000 |
| Big Swim Over The Bed Dia: |
420mm |
| High Spindle Speed: |
2800rpm |
| The Guide Rail Width: |
340mm |
| Max.Swiming Over Pallet(mm): |
230mm |
| Turret Maximum Stroke(mm): |
X - Axis: 260 Z - Axis:750 |
| Max.The Workpiece Length(mm): |
750 |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Hydraulic Pressure |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description
1. Main features
1. big spindle bore dia Φ70mm
2. big swim over the bed dia Φ420mm
3.high spindle speed 2800rpm
4. wide casting at all the foot of the bed;30mm higher side to Stop water
5. theguide rail width (340mm)
6 Double triangle guide rail.
7. Tailstock is double platen to strength
8.independent spindle and frequency conversion stepless
9.Feed of X Z axis are driven by ball screw with servo-motor or stepper motor.
10.he guideway use hyperacoustic quenching.
11.Hardended and ground bed guide way coated with Turcite-B
12. high pression ball screw, High rigid precision composite bearing structure
13.ball screw and the guide surface combination use automatic lubrication system.
2. Technical parameters
specfications
Item |
Project name |
Technical paramaters |
technical specifications |
Max.swiming over the bed dia. (mm) |
Φ420 |
Max.swiming over pallet(mm) |
Φ230 |
Max.the workpiece length(mm) |
750 1000 |
Main transmission |
Main transmission form |
Independent spindle;
frequency conversion stepless |
Number of spindle speeds |
stepless |
Range of spindle speed(r/min) |
200~2800 |
The form of the spindle head |
NO.6 A2 type |
taper of Spindle hole |
MT6 |
Spindle bore(mm) |
Φ70 |
Chuck dia. (mm) |
Φ250 |
Main motor power(kw) |
5.5kw |
Feed system |
Turret maximum stroke(mm) |
X - axis: 260 Z - axis:750 |
Fast-moving feed(mm/min) |
X - axis:6000 Z - axis:8000 |
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 |
Workpiece accuracy |
IT6-IT7 |
Workpiece surface roughness |
Ra1.6 |
tailstock |
Dia. of tailstock quill(mm) |
Φ60 |
Tailstock quill stroke(mm) |
120 |
Taper of tailstock quill |
MT4 |
Tool post |
Standard accessories |
4 station electric tool |
Opinional accessories |
Horizontal 6,8-station electric turret
or gang-type tool camier |
Repeat positioning accuracy(mm) |
0.008 |
Section of turning tool(mm) |
25*25 |
Size and weight |
The size of the machine
(length*width*height)(mm) |
2400*1450*1650 |
Net weight of the machine(kg) |
2000 |
standard configurations
1.CNC system :GSK928
2. 4-position tools
3.Automatic lubrication pump
4. Manual 3-jaw chuck Φ250mm
5.Manual tailstock
6.auto lubrication system,coolant system,lighting system
7.standard tools box
8.standard packing list
9.operational manual
10.Voltage:3 phase 380v 50HZ
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
