WMT CNC INDUSTRIAL CO., LTD. >> Cm6241 High Precision Heavy Duty Lathe Machine Model

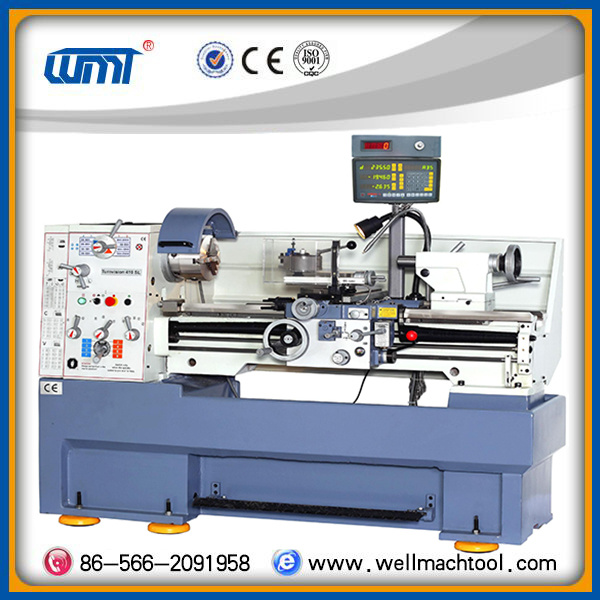

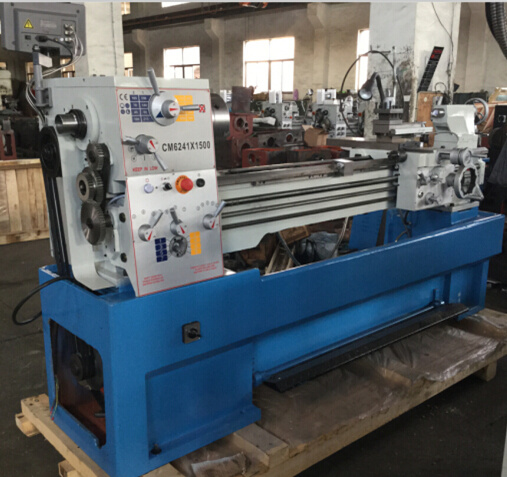

Cm6241 High Precision Heavy Duty Lathe Machine Model

Name: Cm6241 High Precision Heavy Duty Lathe Machine Model
Brand: china-manufacturer-directory.com
SKU: 771322885
Availability: InStock
Rating: 4.8 (93 reviews)

Supplier:	WMT CNC INDUSTRIAL CO., LTD.
Price:	US $ 4280-4310SET
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CM6241
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spindle Bore:	52mm
Max. Swing Over Bed:	410mm
Distance Between Centers:	1000/1500mm
Machine:	Lathe
Voltage:	110V, 220V, 380V
Clour:	Customer Appoint
Package:	Fumigated Poly-Wood Case
Payment:	T/T, Paypal, LC, West Union
Type:	Horizontal Lathe
Power Source:	Electric
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Setting Mode:	Floor-type
Precision:	High Precision
Processing Accessory:	Steel Workpiece
Tool Holder:	4-Station Toolpost

Product Description

Features:
Super voice frequency heated bed ways.
Hardened and grounded gears in the headstock.
With 2 precision D degree taper roller bearings on the spindle.
Integrated deluxe cast iron floor stand.
Tolerance test certificate, test flow chart included.

Main specification :

Model	CM6241×1000	CM6241×1500
Max.swing over bed	Φ410mm
Max.swing over cross slide	Φ255mm
Max. swing over gap	Φ580mm
Max.length of workpiece	1000mm/1500mm
Length of gap	250mm
Max.section of tool	20mm×20mm
Max.travel of cross slide	210mm
Max.travel of compound rest	140mm
Width of bed	250mm
Spindle bore	52mm
Spindle nose	D1-6
Taper of spindle bore	M.T.#6
Range of spindle speed	16 changes 45-1800r/min
Inch threads range	45kinds 2-72 T.P.I.
Metric threads range	39kinds 0.2-14mm
Module pitches range	18kinds: 0.3-3.5M.P.
Diametrical pitches range	21kinds:8-44D.P.
Dia. of tailstock sleeve	60mm(2 5/16")
Travel of tailstock sleeve	120mm(4 3/4")
Morse taper of tailstock sleeve	M.T.#4
Power of main motor	2.2/3.3kw(optional 3/4.5kw)
Power of coolant pump	4P, 3PH,90w
Packing size(LxWxH)mm	2070/2600x940x1600
N.W./G.W.	1550/1760 kg 1750/1850kg

Standard accessories:
3-jaw chuck,4-jaw chuck,Face plateSteady rest,Follow rest,working light,colant system,Brake system,Full length splash guard,Chasing dial indicator,Change gear set,Reduction sleeve,Dead centers,Chuck guard,Tool box and tools;

Optional accessories:
Taper turning attachment
Live center MT3
Live center MT4
Live center MT5
Lead screw guard
DRO(X/Y)
DRO(X/Y/Z)
Quick change tool post (American type/3pcs)
Quick change tool post (American type/6pcs)
Quick change tool post (European type/5pcs)

We are engaged in the business line of various machine tools, ranging from common machines to CNC ones. Our main products are lathes, milling and drilling machines, grinding machines and forming machines CNC machining centers and so on. Installed and tested by professional techniques, the machines are of high quality and able to meet up to international standard. We have achieved marvelous success during the past few years, winning praise from our clients all over the world. The machines that we produce enjoy wide popularity across the world. Our facility and equipment along with a focus on education keep us on the top of this field. In order to keep pace with international standard, we spare no effort to develop new products. Our company mission is to create a serious, trusted and everlasting partnership with all our clients.

Sincerely, we are looking forward to entering into business relation with you in the near future.
