CNC Machine Tool Cjk6150b CNC Lathe Machine
Product Specifications
| Prod Model: |
CJK6150B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Workpiece Swing Dia. Over Bed: |
500mm |
| Maximum Length Of Workpiece: |
750/1000/1500mm |
| Range Of Spindle Speeds: |
24, 9~1600rpm |
| Spindle Bore Diameter: |
82mm |
| Skateboard Maximum Stroke (X): |
290mm |
| Width Of Guide Rails: |
390mm |
| The Form Of Spindle Head: |
D-8 |
| Taper Of Spindle Bore: |
1:20 |
| Motor Minimum Setting Unit: |
Z: 0.001mm , X: 0.001mm |
| Arbor Fast Forward Speed: |
Z: 10m/Min, X: 8m/Min |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

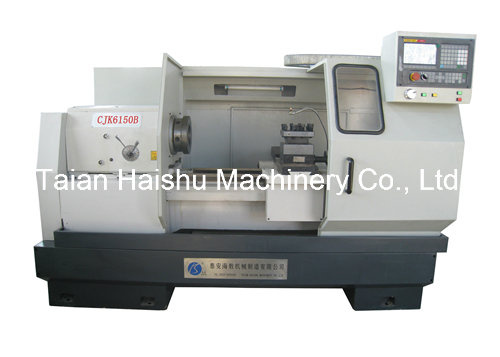

CJK6150B CNC LATHE
1. Technical parameters
items |
parameters |
Maximum workpiece swing diameter over bed |
Φ500mm |
Dragged on board the maximum workpiece swing diameter |
Φ290mm |
Maximum length of workpiece |
750/1000/1500mm |
Range of spindle speeds |
24, 9~1600rpm |
Spindle bore diameter |
Φ82mm |
Skateboard maximum stroke (X) |
290mm |
Width of guide rails |
390mm |
The form of spindle head |
D-8 |
Taper of spindle bore |
1:20 |
Turret Number of tool |
4/6/8/ or row of knife |
Tool cross-section specifications |
25mm×25mm |
Motor minimum setting unit |
Z: 0.001mm , X: 0.001mm |
Arbor fast forward speed |
Z: 10m/min, X: 8m/min |

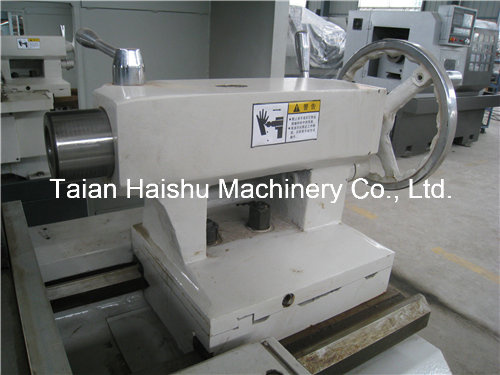

Tailstock quill taper |
MT5 |
Tailstock quill maximum moving distance |
150mm |
Power of main motor |
7.5KW |
The lathe Dimensions (L × W × H) |
2600/2850/3350 mm×1300 mm×1750mm |
Lathe Net |
2700/2900/3300kg |
2. main features
(1) 24 Gear Shift, High torque, high processing efficiency and high accuracy. (2) Spindle diameter increases(φ82mm).
(3) The width of the bed: 390mm.
3. Configuration
(1) Control system optional:GSK, KND, Siemens, Fanuc, etc..(2) Chuck optional: manual, pneumatic or hydraulic chuck.(3) Tailstock optional: manual, pneumatic, hydraulic.(4) Turret optional: Vertical four, horizontal six, horizontal eight, rows of knives and so on.(5) Lubrication configuration: automatic oil lubrication system.
4. Uses
Suitable for rough turning and precision machining of steel castings, iron castings and other materials.
Taian Haishu Machinery Co., Ltd. is a professional production mechatronic product, collection development, manufacture, sales of high-tech enterprises. Company under the two divisions: One is the CNC machine tools division, the leading product is the "haishu" brand of CNC lathes and machining centers; One is the test equipment division, the leading product is "Taishanhaite" brand common rail test bench and injectoin pump, fuel injector test bench. Founded in March 2001, covers an area of 15000m2, building area of 8000m2, fixed assets 16 million yuan(RMB), has passedISO9001: 2008 international quality management system certification and European CE certification. The company has strong technical force, with a group of young and promising in the machine and test rig design and manufacture, electrical design and application of CNC technology and software development expertise and skills. Advanced 2D and 3D CAD, document management to achieve the PDM. Product innovation, Equipment CNC, Management information, Which has become the industry technology leader.
The company has a Ministry of Internal Trade and the Ministry of Foreign Trade, with independent import and export rights. The products are sold to more than 20 domestic provinces, cities and autonomous regions, and exported to 30 countries including: USA, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Czechoslovakia, Lebanon, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Russia, Belarus, Lithuania, Bahrain, Korea, India, Indonesia, Malaysia, Iran, Thailand, Philippines, Mongolia.
Main products: 1. Horizontal flat bed CNC lathe, 2. Horizontal slant bed CNC lathe, 3. Vertical CNC lathe, 4. CNC turning center, 5. CNC pipe thread lathe, 6. CNC milling machine, 7. CNC machining center, 8. CNC grinding machine.
Characteristic services: Bear machining overall program design and implementation. Include: Site planning, equipment layout, tooling tool provide, processing program design, remote operation monitoring. Machine shop to achieve unmanned.
The company has many years of experience in development and manufacturing of CNC machine tools, "technology innovation, integrity service" as a business philosophy, with new and old customers at home and abroad in close cooperation and common development.
