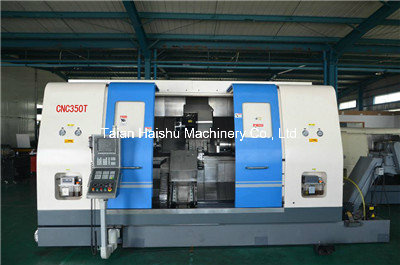

CNC Turning Center CNC350t Machine Tool
Product Specifications
| Prod Model: |
CNC350T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Workpiece Length: |
650/750/1000mm |
| Maximum Turning Diameter: |
300mm |
| Hydraulic Chuck: |
2-200mm |
| Front Spindle Bore Taper: |
1:20 |
| Spindle Bore: |
60mm |
| 2 - Servo Spindle Motor Speed: |
0-8000mm/Min |
| Rapid Traverse X / Z: |
40000mm/Min |
| X-Axis Travel: |
200mm |
| Z-Axis Travel: |
650/750/1000mm |
| B-Axis(Sub-Spindle) Travel: |
950/1050/1300mm |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Hydraulic Pressure |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description
slant bed lathe and cnc milling machine CNC350T cnc turning center with solid chuck
Main technical parameters:
No. |
Item |
Unit |
Technical parameters |
CNC350T |
1 |
Maximum turning diameter on lathe' body |
mm |
350 |
2 |
Maximum workpiece length |
mm |
350/450/550 |
650/750/1000 |
3 |
Maximum turning diameter |
mm |
300 |
4 |
Spindle nose type and code |
mm |
A8 |
5 |
Hydraulic chuck |
mm |
2-φ200(8") |
6 |
Front spindle bore taper |
|
1:20 |
7 |
Spindle bore |
mm |
60 |
8 |
Maximum load-bearing chucked components |
kg |
500 |
9 |
2 - servo spindle motor speed |
mm/min |
0-8000 |
10 |
Rapid traverse X / Z |
mm/min |
40000 |
11 |
CS1; CS2 main servo motor power |
kW |
7.5 |
12 |
X servo motor maximum torque |
N.m |
10 |
13 |
Z, Y servo motor maximum torque |
N.m |
15 |
14 |
Power Specifications |
v |
380±10%. 50Hz±1Hz |
15 |
Carrier transfer time (one station) |
s |
1.6(Horizontal 12) |
16 |
Carrier transfer repeat positioning accuracy |
|
0.005" |
17 |
X-axis travel |
mm |
200 |
18 |
Z-axis travel |
mm |
350/450/550 |
650/750/1000 |
19 |
B-axis(sub-spindle) travel |
mm |
650/750/850 |
950/1050/1300 |
20 |
Y-axis travel |
mm |
150 |
21 |
Biaxial dynamic docking concentricity |
mm |
0.005 |
22 |
Hydraulic servo turret form |
|
Horizontal 12-station power turret |
23 |
Knife handle size |
mm |
25×25 |
24 |
Net weight |
kg |
4000 |
25 |
Size(L×W×H) |
mm |
2000/2100/2200×1350×1750 |
Standard configuration:
1.Taiwan control system
2.Hydraulic solid chuck
3.Cutting cooling system
4.X.Z axis linear guide
5.The spindle unit and motor
6.Horizontal 12 station servo turret
7.Bearing NSK
8.Fully enclosed protection system
Taian Haishu Machinery Co., Ltd. is a professional production mechatronic product, collection development, manufacture, sales of high-tech enterprises. Company under the two divisions: One is the CNC machine tools division, the leading product is the "haishu" brand of CNC lathes and machining centers; One is the test equipment division, the leading product is "Taishanhaite" brand common rail test bench and injectoin pump, fuel injector test bench. Founded in March 2001, covers an area of 15000m2, building area of 8000m2, fixed assets 16 million yuan(RMB), has passedISO9001: 2008 international quality management system certification and European CE certification. The company has strong technical force, with a group of young and promising in the machine and test rig design and manufacture, electrical design and application of CNC technology and software development expertise and skills. Advanced 2D and 3D CAD, document management to achieve the PDM. Product innovation, Equipment CNC, Management information, Which has become the industry technology leader.
The company has a Ministry of Internal Trade and the Ministry of Foreign Trade, with independent import and export rights. The products are sold to more than 20 domestic provinces, cities and autonomous regions, and exported to 30 countries including: USA, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Czechoslovakia, Lebanon, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Russia, Belarus, Lithuania, Bahrain, Korea, India, Indonesia, Malaysia, Iran, Thailand, Philippines, Mongolia.
Main products: 1. Horizontal flat bed CNC lathe, 2. Horizontal slant bed CNC lathe, 3. Vertical CNC lathe, 4. CNC turning center, 5. CNC pipe thread lathe, 6. CNC milling machine, 7. CNC machining center, 8. CNC grinding machine.
Characteristic services: Bear machining overall program design and implementation. Include: Site planning, equipment layout, tooling tool provide, processing program design, remote operation monitoring. Machine shop to achieve unmanned.
The company has many years of experience in development and manufacturing of CNC machine tools, "technology innovation, integrity service" as a business philosophy, with new and old customers at home and abroad in close cooperation and common development.
