Product Specifications
| Prod Model: |
HA Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ha Series: |
1-2-50 |
| Type: |
Preparation Machinery |
| Finished Dosage Form: |
Liquid |
| Certification: |
SGS |
Product Description

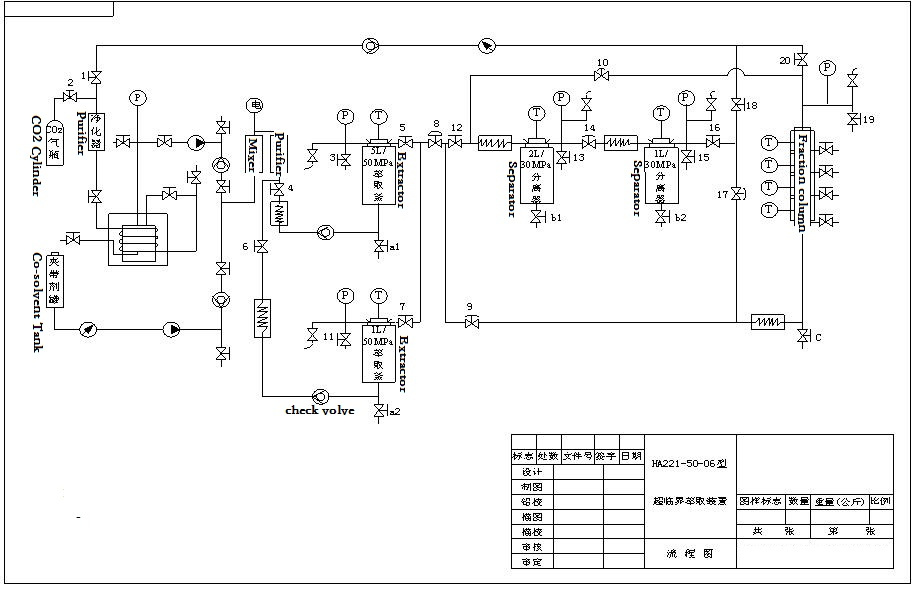

1. Extractor
This device is equipped with jacket water recycle heating system. Temperature adjustable.
Building Material: 1Cr18Ni9Ti
Volume: 5L
Max. Working pressure: 50MPa
2. Separator
It is also equipped with with jacket water recycle heating system. Temperature adjustable.
Building Material: 1Cr18Ni9Ti
Volume: 2L and 1L each
Max. Working pressure: 30MPa
3. CO2 high pressure plunger pump
Flow(double plunger) 0- 50L/h frequency convertible
Max. Working pressure: 50MPa
4. Co-solvent pump
Flow(double plunger) 1/4- 4L/h mechanical adjustable
Max. Working pressure: 50MPa
5. Chiller
Refrigeration 5100Kcal/h Air cooling or water cooling
Temperature control range: -5~+5ºC meet the technical requirement
6. Heat exchange system
Building Material: 1Cr18Ni9Ti
Size Φ 6× 1 pipe coil
Max. Working pressure: 50MPa equipped with with jacket water recycle heating system. Temperature adjustable.
7. Purifying system
Building Material: 1Cr18Ni9Ti
Max. Working pressure: 50MPa
8. CO2 Storage tank
Building Material: 1Cr18Ni9Ti
Volume: 4L
Max. Working pressure: 16MPa
9. Flow gauge
Specification: Metal tube floater type flowmeter 6.3- 63L/h
Digital meter: Display instantaneous flow and accumulated flow separately
10. Temperature control system
Control range: From room temp. ~75ºC adjustable(water base)
Dynamic control accuracy: ± 1ºC double digital displaying screen
11. Safety guard device
1. Electric contact pressure gauges are installed at the outlet of plunger pump. Working pressure can be set and the pump will stop automatically in case the pressure is exceeding the set pressure.
2. Extractor, separators, distillation column are equipped with safety valves according to its Max working pressure. It will release pressure automatically in case the pressure is exceeding the set pressure.
12. Pipe line
Valves and fittings DW6
All the parts in contact with raw material are made from S. Steel 1Cr18Ni9Ti.
13. Others
1. Power supply: 3 phases 4 line 380V/50Hz 18Kw
2. CO2: Food grad ≥ 99.5%, Net weight in single cylinder≥ 22Kg. User provide it himself
3. Installation floor area: 3700× 2500× 3200m/m. Operation space excluded.
