Product Specifications
| Prod Model: |
96L |
| Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Ha Series: |
96L |
| Type: |
Preparation Machinery |
| Finished Dosage Form: |
Liquid |
| Certification: |
SGS |
Product Description

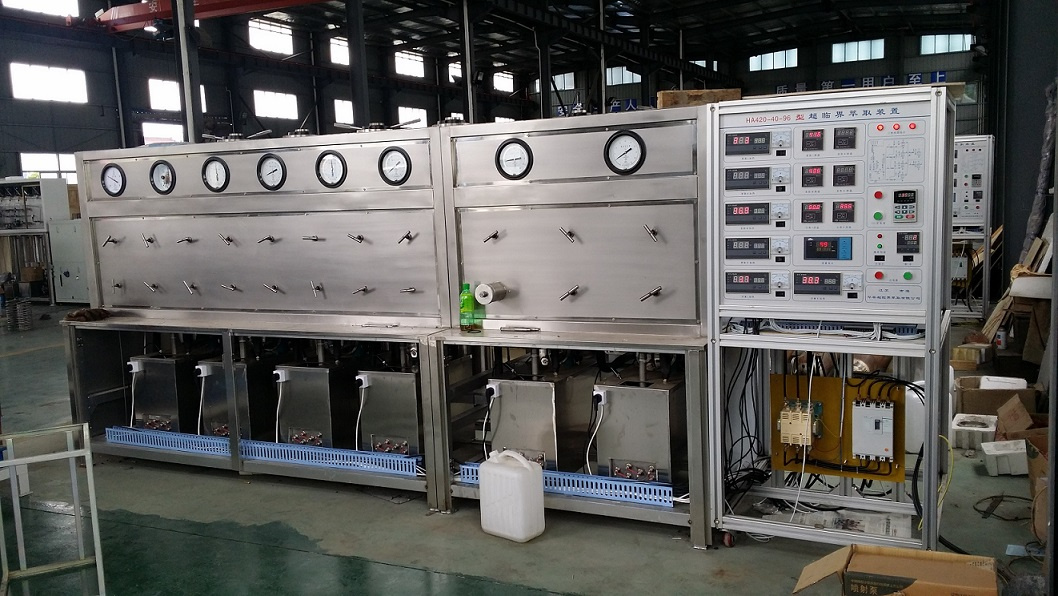

SFE 96 LITER PILOT PLANT
1. Extractor
This device is equipped with jacket water recycle heating system. Temperature adjustable.
Building Material: 1Cr18Ni9Ti
Volume: 96L(24L× 4 units)
Max. Working pressure: 40MPa
2. Separator
It is also equipped with with jacket water recycle heating system. Temperature adjustable.
Building Material: 1Cr18Ni9Ti
Volume: 20L+10L 2 units
Max. Working pressure: 30MPa
3. CO2 high pressure plunger pump
Flow(triple plunger) 0_400L/h frequency convertible
Max. Working pressure: 40MPa pump head with cooling system
4. Co-solvent pump
Flow(double plunger) 1/4_20L/h mechanical adjustable
Max. Working pressure: 40MPa
5. Chiller
Refrigeration 20000Kcal/h Air cooling or water cooling
Temperature control range: -5C~+5C meet the technical requirement
6. Heat exchange system
Building Material: 1Cr18Ni9Ti Coil pipe
Size Φ 14, Φ 18
Max. Working pressure: 40MPa, 30MPa equipped with jacket water recycle heating system. Temperature adjustable.
7. Purifying system
Building Material: 1Cr18Ni9Ti
Max. Working pressure: 5L 16MPa
8. CO2 Storage tank
Building Material: 1Cr18Ni9Ti
Volume: 20L X 2 sets
Max. Working pressure: 16MPa
9. Level Meter
Building Material: 1Cr18Ni9Ti
Max. Working pressure: 16MPa
10. Flow gauge
Specification: Metal tube floater type flowmeter 40_400L/h
Digital meter: Display instantaneous flow and accumulated flow separately
11. Temperature control system
Control range: From room temp. ~75C adjustable(water base)
Dynamic control accuracy: ± 2C double digital displaying screen
12. Safety guard device
1. Electric contact pressure gauges are installed at the outlet of plunger pump. Working pressure can be set and the pump will stop automatically in case the pressure is exceeding the set pressure.
2. Extractor, separators, distillation column are equipped with safety valves according to its Max working pressure. It will release pressure automatically in case the pressure is exceeding the set pressure.
13. Hoisting system
With electric hoister for loading and discharging.
14. Pipe line
Valves and fittings DW14
All the parts in contact with raw material are made from S. Steel 1Cr18Ni9Ti. All the valve rod and valves are hardened. It is durable.
15. Others
1. Power supply: 3 phases 4 line 380V/50Hz Total power: 58KW, normal production: 36KW
2. CO2: Food grad ≥ 99.5%, Net weight in single cylinder≥ 22Kg. User provide it himself
3. Installation floor area: 5800× 5000× 4600m/m. Operation space excluded.
