Product Specifications
| Prod Model: |
HA Series |
| Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| 120-50-1: |
1 Liter |
| Finished Dosage Form: |
Liquid |
| Certification: |
SGS |
| Type: |
Extraction |
Product Description

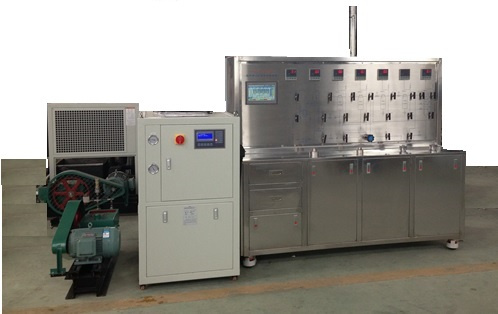

120_50_01 Supercritical Fluid Extraction Device
(CO2 Recycle Type )
This device combined mainly by: Extractor, separators, CO2 high pressure pump, Co-solvent pump, Chilling system, CO2 storage tank, heat exchanging system, purification system, flow meters, temperature control system, safety system etc.
1. Extractor:
It is equipped with water jacket recycle heating system. The temperature is adjustable. Attached with auxiliary solid/liquid material drum.
Material 1Cr18Ni9Ti
Volume 1L/1 set
Max. Working pressure 50MPa
2. Separator:
It is equipped with water jacket recycle heating system. The temperature is adjustable.
Material 1Cr18Ni9Ti
Volume 0.6L/ 2 sets
Max. Working pressure 30MPa
3. CO2 High pressure pump:
Flow(double plunger) Max. Discharge 50L/h frequency adjustable.
Max. Working pressure 50Mpa pump head equipped with cooling system
4. Co-solvent pump:
Flow(double plunger) 1/4_4L/h mechanical regulater
5. Max. Working pressure 50Mpa
6. Chiller:
Refrigeration 3300Kcal/h air cooling
Temp. Control range -5C~+5C sufficient for technical requirements.
7. Heat exchanging system:
Material 1Cr18Ni9Ti
Specification Φ 6× 1 coil pipe
Max. Working pressure 50MPa
8. It is equipped with water jacket recycle heating system. The temperature is adjustable.
9. Purification System:
Material 1Cr18Ni9Ti
Max. Working pressure 50MPa
10. CO2 Storage tank:
Material 1Cr18Ni9Ti
Volume 4L
Max. Working pressure 16MPa
11. Flow meter:
Specification: Metal pipe floater type flow meter with digital tele-transfer. Instantaneous flux and cumulated flux can be displayed separately.
12. Temperature control system:
Control range Room temp. ~75C adjustable(water bath)
Dynamic control accuracy & plusmn; 1C digital display
13. Safety device:
1. Outlet of high pressure pump equipped with contact pressure meter. Working pressure can be preset. When pressure is exceeding the set pressure, the pump stops automatically.
2. Safety valves are equipped to extractor, separators as per the Max. Working pressure. Once the pressure exceeding the machine's Max. Pressure, the pressure will be discharged automatically.
14. Pipe line:
Valves and pipe fitting DW6
All the contact parts with raw material and liquid, such as tank, valves, pipe fittings and pipe, are made of 1Cr18Ni9Ti S. Steel.
Features:
1. The pressing ring in separators is of fast open type. O ring is used as inlet. It is durable for more than 4 months in use.
2. CO2 can be recycle used.
15. Others:
1. Power: 3 phases 4 line 380V/50Hz 10Kw
2. CO2: Food grade ≥ 99.5%, bottle net weight≥ 22Kg (To be prepare by the user himself).
3. Installation dimension: 3700× 2500× 3200m/m, operation space excluded.
