Cutting Machine

Name: Cutting Machine
Brand: China-Manufacturer-Directory.com
SKU: 678768175
Availability: InStock
Rating: 4.7 (130 reviews)

Supplier:	Wuxi Hengtong Petrolic Machinery Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Markets:	South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Flame, Plasma

Product Description

Features

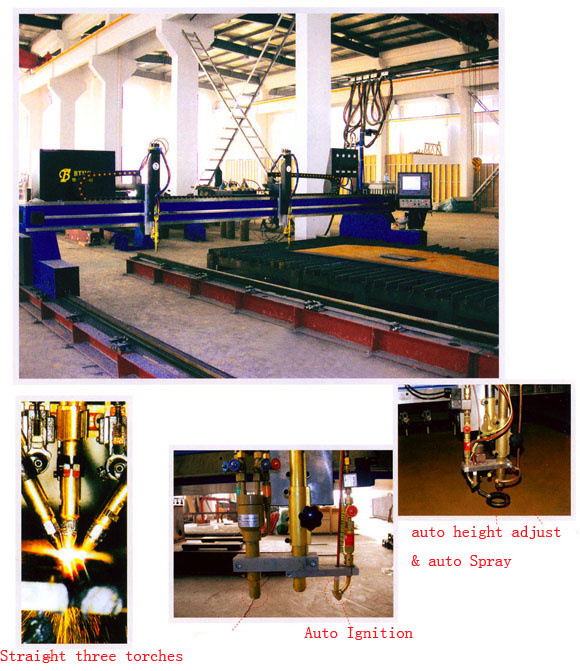

1. The double column structure allows the cutting operation to be more stable.
2. The whole machine undertakes annealing process and blasting procedure. The rack is manufactured with high-frequency hardening, grinding and inlaying, possessing sound durability.
3. Can be equipped with straight line triple cutting torch or plasma flame cutting torch.
4. The cutting torch lifter uses a rolling rail and can lift with manual and electric control and have the function of auto ignition.
5. Choice between suspension type and tank chain type in line with their own requirements for the discharging of lines.

Model	CNC-CG4000	CNC-CG5000	CNC-CG6000	CNC-CG7000	CNC-CG8000
Track Span(L) (mm)	4000	5000	6000	7000	8000
Cutting Width (L-800mm) (mm)	3200	4200	5200	6200	7200
Overall Width (L+800mm) (mm)	4800	5800	6800	7800	8800
Longitudinal Track Length (mm)	14000 (could be extended)
Valid Cutting Length (mm)	12000 (could be extended)
Driving Way	Single Drive	Double Drive
Traverse Speed (mm/min)	50-4000	50-6000
CNC Torch	Standard: 2 groups (the torch amount is on clients’ decision)
Power	50Hz 220V
Cutting Thickness (mm)	Flame: 6-100 (could up to 400 if use large flowage)
Cutting Model	Flame/Plasma

We are manufacturer of two business:

1. Welding equipment: Welding rotator, welding positioner, welding manipulator.

2. Seamless tubes: Hydraulic / pneumatic cyliner honed tubes, cold drawn tubes, skiving tubes.
