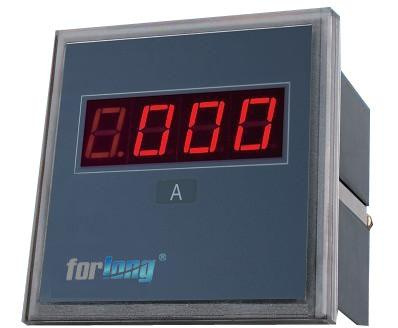

Digital Power Meter PM 400

Name: Digital Power Meter PM 400
Brand: China-Manufacturer-Directory.com
SKU: 668860202
Availability: InStock
Rating: 4.6 (125 reviews)

Supplier:	Shanghai Fengyilong Electronic Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Suitable for measuring and displaying current, voltage, power, frequency, power factor and electric parameters

Accuracy			Voltage meter, Current meter 0.5, 0.2 class; Frequency meter 0.1 class; Power meter, Power factor meter 0.5 class
Display			4 1 /2 Digit or 4 Digit LED Display
input	Nominal input	Current	Current AC1A, AC5A, AC10A, AC500mA, DC5A, DC20mA and etc.
		Voltage	Voltage AC100V, AC220V, AC380V, DC100V, DC200V, DC380V, DC75mV and etc.
	Overloading		Continuance: 1.2 times Instantaneous: Voltage 2 times (10s), Current 10 times (5s)
	Frequency		50/60Hz± 10%
Power supply	Auxiliary power supply		Switch power supply: AC, DC80~270V, linear power supply: AC220V± 5%
	Power consumption		< 3VA
Insulation			AC2kV
Insulation resistance			≥ 100MΩ
Mean time between failures			≥ 50000h
Operation condition			Ambient temperature: -10~55° C, relative humidity ≤ 93%, no corrosive gas, height above sea level≤ 2500m

Shanghai Fengyilong Electronic Co., Ltd. is an experienced manufacturer of electronic meters, and has its headquarter in Shanghai, China and subsidiary factory in Jiangsu province. As a member of National Instrument & Meter Associations, we have involved in drafting our National Standards for instruments & meters.

We are an ISO9001 company, we have very good quality control mechanism on production process. We have our dinrail energy meter, prepayment energy meter, socket energy meter CE approved.

We have our own import and export rights and possess skillful import & export operating persons as well.

Here we are highly honored to enter into your business line, so we heartily wish to serve you with our good products. We also hope that we can join our hands to work hard for our mutual future.

You are welcome to visit our showroom.
