Product Specifications
| Prod Model: |
GH1340W GH1440W GH1640W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spindle Bore: |
40mm |
| Max. Swing Over Bed: |
330mm 356mm 410mm |
| Distance Between Centers: |
1000mm |
| Machine: |
Lathe |
| Clour: |
Customer Appoint |
| Voltage: |
110V, 220V, 380V |
| Package: |
Fumigated Poly-Wood Case |
| Payment: |
T/T, Paypal, LC, West Union |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Steel Workpiece |
| Tool Holder: |
4-Statio Toolpost |
Product Description

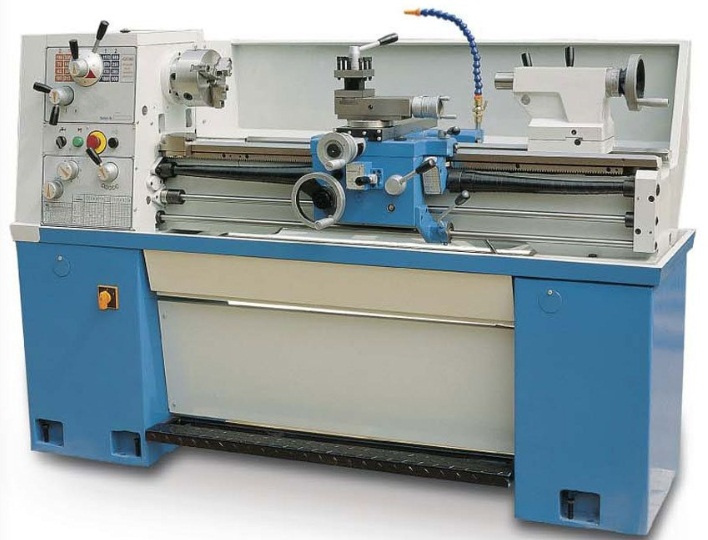

Main specification for GH1340W GH1440W GH1640E lathe machine
Specification | GH1340W | GH1440W | GH1640W |
| General capacity | Max. swing over bed | Φ330mm (13') | Φ356mm(14") | Φ410mm(16") |
| Max. swing over cross slide | Φ185mm(7-7/25") | Φ210mm(8-5/8") | Φ224mm(8-8/9") |
| Max. swing over gap | Φ480mm(19") | 506mm(20") | Φ580mm(22") |
| Bed width | 260mm(10") |
| Dsitance between centers | 1000mm(40") |
| Spindle | Taper of spindle bore | MT5 | MT6 |
| spindle bore | Φ40(1-1/2") | Φ52mm(2") |
| steps of spindle speeds | 12 steps |
| range of spindle speed | 40-1800rpm |
| spindle nose | D-4 | D-6 |
| Threading and feeding | Metric thread range | 0.45-7.5mm(22 kinds) |
| inch screw thread range | 4-112TPI(40kinds) |
| Range of longitudinal feeds | 0.03-0.688mm(0.0011-0.0271" in/rev) |
| Range of cross feeds | 0.015-0.220mm(0.0003"-0.01in/rev) |
| Leadscrew | Dia. of leadscrew | Φ22mm(7/8") |
| Pitch thread of leadscrew | 4mm(8TPI) |
| Tailstock | travel of tailstock quill | 120mm(4-3/4") | 100mm(4") |
| Dia. of tailstock quill | 45mm(1-25/32") | 20mm |
| Taper of tailstock quill | MT3 |
| Power | Main motor power | 2.4KW(3PH) |
| Coolant pump motor power | 0.04(0.055HP) |
| Shipping info. | Overall dimensions | 1900*740*1150mm | 1900*70*1200mm |
| Packing size | 1970*760*1460mm | 1970*760*1510mm |
| NW/GW | 960/1090kg |
Standard accessories:
3-jaw chuck, 4-jaw chuck
coolant system, working light
foot brake, steady rest
follow rest, chasing dial indicator
change gears set, tool box and tools
