Gwasy-a Computer High-Speed Plastic Film Printing Machinery (Rewind and Unwind Inside)

Name: Gwasy-a Computer High-Speed Plastic Film Printing Machinery (Rewind and Unwind Inside)
Brand: china-manufacturer-directory.com
SKU: 775083485
Availability: InStock
Rating: 4.3 (81 reviews)

Supplier:	Wenzhou Guowei Printing Machinery Co., Ltd.
Price:	US $ 10000-70000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	GWASY-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Rotogravure Printing Machine
Brand Name:	Guowei
After-Sales Service Provided:	Engineers Availableto Service Machinery Overseas
Drying Method:	Electric Heating and Steam Heating
Certification:	ISO9001:2008 CE
Printing Colors:	8 Colors
Machine Printing Speed:	160m/Min
Condition:	New
Warranty:	One Year
Place Of Origin:	Zhejiang, China (Mainland)
Style:	Intaglio Printing Press
Structure:	Platen Press
Color & Page:	Multi-Colour Printing Press

Product Description

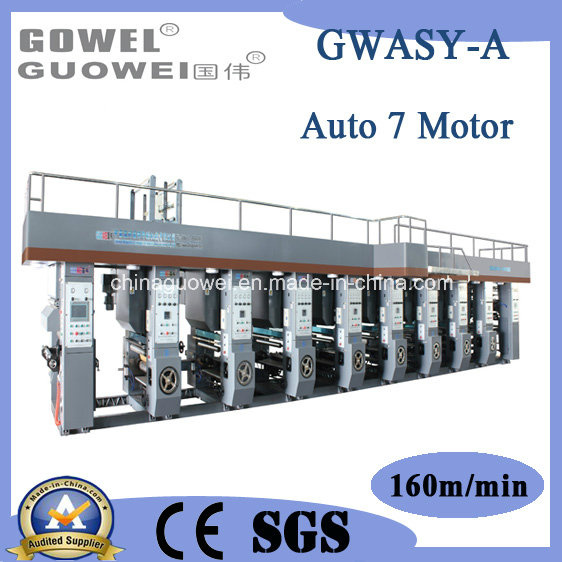

GWASY-A Computer High-Speed Printing

Machinery (Rewind and Unwind Inside)

Main Structure Character:

1. Unwind and Rewind:cantilever turret whirling stand with double arm and double station , Flatulence axis loading and unloading, change fast, safe and reliable,

2. Automatic cutting, high-speed non-stop change materials

3. Printing:vertical register system,high precision and less waste.doctor blade plays with double-axis.drive by independent motor

4. Dry oven:Patent technology,low consumption oven,high wind pressure high efficiency and energy saving system, several return air road, saves energy

5. Control:With the Siemens PLC control, YASKAWA frequency converter, seven motor tension control system,main components are imported brand

Applicable materials:

This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of high grade print.

Main Technical Parameters
Model	GWASY-600A	GWASY-800A	GWASY-1000A	GWASY-1200A
Printing colors	8 (user can increase or decrease)
Diamter of pring cylinder	100-320mm
Max.printing width	600mm	800mm	1000mm	1200mm
diameter of unwind/rewind	600mm
Machine printing speed	160m/min
Max.printing speed	150m/min
Register precision	±0.1mm
Drying method	Electric heating and steam heating or oil heating
Total power	115kw	135kw	155kw	175kw
Weight of machine	21000KG	22500KG	24000KG	26000KG
Overall dimension	1350027002750mm	1350029002750mm	1350031002750mm	1350033002750mm

Our company specializes in gravure printing machine, laminating machine, slitting machine, bag making machine and film blowing machine production.

Rui'an city guo wei printing machinery Co., Ltd is an enterprise specilize in producing complete set of plastic soft packing and paper packing equipment. Taking science and technology as support, requirement of customers as guideline perfect after-sale service as guarantee, our enterprise will exert ourselves to manufacture excellent equipment and vigorously develop new-type equipment.

Since its establishment, our company has been firmly insisting the factory building conviction of "quality first, customer supre me" and has been constantly perfecting internal mechanism and after-sale service system. We will pay special attention to internal management, actively accept feedback, bring about viruous circle and manufacture excellent equipment so as to repay the society.

Our company has been consistently abiding by principle of "treating somebody eith all sincerity and trust, mutual benefit and reciprocity, joint development", we are willing to establish long-term stable business relations with personalities of various circles.

We will be pleased to open to the new and old customers from home and abroad, who ever comes will be welcomed.
