Product Specifications
| Prod Model: |
RMS5533 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Interfacing: |
Sdi,AV,VGA,HDMI |
| Tally: |
Support |
| Screen Size: |
800*RGB*480 |
| Monitor Number: |
3 Units |
| Application: |
Broadcasting,Events,Stage |
| Power: |
12V |
| Size: |
19 Inches |
| Color: |
Black and Blue Optional |
| Type: |
Preview Monitor |
Product Description

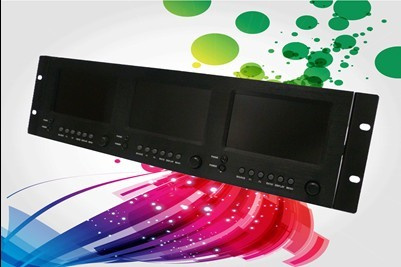

19 inch 3 Unit SDI Rack Mount LCD Video Preview Monitor RMS5533 CE, FCC, RoHS
RMS 5533 is a 19 3RU standard rack mounting LCD monitor, with 3 high resolution 5 LCD panels of independent input controlling, 800*RGB*480, and wide viewing angle. Each LCD of RMS 5533 accepts 1 HD/SD-SDI, 1 HDMI, 1 Composite video, and has 1 HD/SD-SDI and 1 Composite video loop through output. Support SDI and HDMI embedded audio output and TALLY light control and display. RMS 5533 has a 2-pin pole 12V DC power connector for all the 3 LCD panels.
Features:
Standard 3 unit rack mount size
5-inch LCD*3
800*RGB*480 for each LCD
16: 9/4: 3 adjustable
HD/SD-SDI, HDMI, Composite video
SDI embedded audio output via 3.5mm earphone socket
HDMI embedded audio output via 3.5mm earphone socket
TALLY light for each LCD unit
Underscan/Oversan switch
Customer editable video TITLE
SDI loop through
Auto input standard detection
