Product Specifications
| Prod Model: |
AVDSP VSP 628 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
LED Rental, Live Show, Conference |
| Inputs: |
DVI, VGA, Svideo, Sdi, Cvbs |
| Output: |
DVI, VGA |
| Sending Card: |
1 |
| Loop Through: |
DVI, VGA, Svideo, Sdi, Cvbs |
| Type: |
LED Video Processor |
Product Description

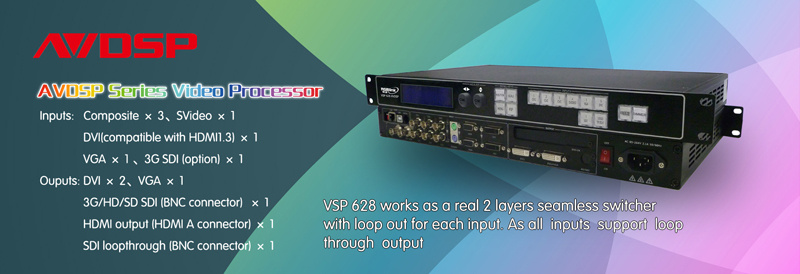

VSP628SF LED Video Processor Description
The VSP628SF is an all-in-one high performance video scaler, scan converter, switcher and trans-coder processor. The vsp628sf is the idea solution for converting RGB, HDTV, component, s-video, composite(NTSC, PAL and SECAM), SDI and 3G-SDI in to a selectable video format.
VSP628SF works as a real 2 ayers seamless switcher with loop out for each input. As all inputs support loop through output. It combines truly seamless switcher, glitch-free switching with advanced scaling technology to meet the requirement of high quality, high resolution video presentation. Vsp 628sf is designed to deliver advanced capabilities to high end presentation environment.
VSP628SF LED Video Processor Features;
2 layers processing
5 fully configuration inputs
Loop out for each input
Any in any out format conversation
Fade in fade out switch
Logo insert
Fully zoom in and zoom out operation
VSP628SF LED Video Processor Video inputs
3*composite CVBS
1*svideo
1*DVI(compatible with HDMI 1.3
1*VGA
2*3G-SDI(Option)
VSP628SF LED Video Processor Video connectors
5*BNC
1*DVI-I
1*dB15
1*USB
VSP628SF LED Video Processor Video Output
2*DVI
1*VGA
1*3G/HD/SD-sdi(BNC connector)
1*fiber(LC connector)
3*composite loop through
1*s-video loop through
Output resolution: 640*480*60Hz, 1024× 768× 75Hz, 1280× 1024× 60Hz, 1920× 1080P× 60Hz
VSP628SF LED Video Processor Video Control
Local front panel operation
Remote Eternet, USB, RS232
ORDER OPTION
VSP628 without SDI input
VSP628S with SDI input
VSP628SF with SDI input and fiber output
Why Choose VSP628SF
1. Loop out or each input
2. Seamless switching between input signals
3. Any in any out format conversion
4. PIP for each inputs
5. Remote control by iPad, iPhone, Adroid
6.1 sending card
