Product Specifications
| Prod Model: |
VSP112 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
DVI,VGA,HDMI,CV,USB,Autio |
| Output: |
DVI,VGA |
| Motion Compensation: |
Good |
| Video Processing Bits: |
10 Bit |
| Refresh Rate: |
50Hz,60Hz,70Hz |
| Max.Output Resolution: |
2048*1152/2560*812 |
| Certification: |
CE,RoHS,FCC |
| Warranty: |
3 Years |
| Weight(Nake): |
2kg |
| Dimension: |
33*53*12cm |
| Type: |
LED Video Processor |
Product Description

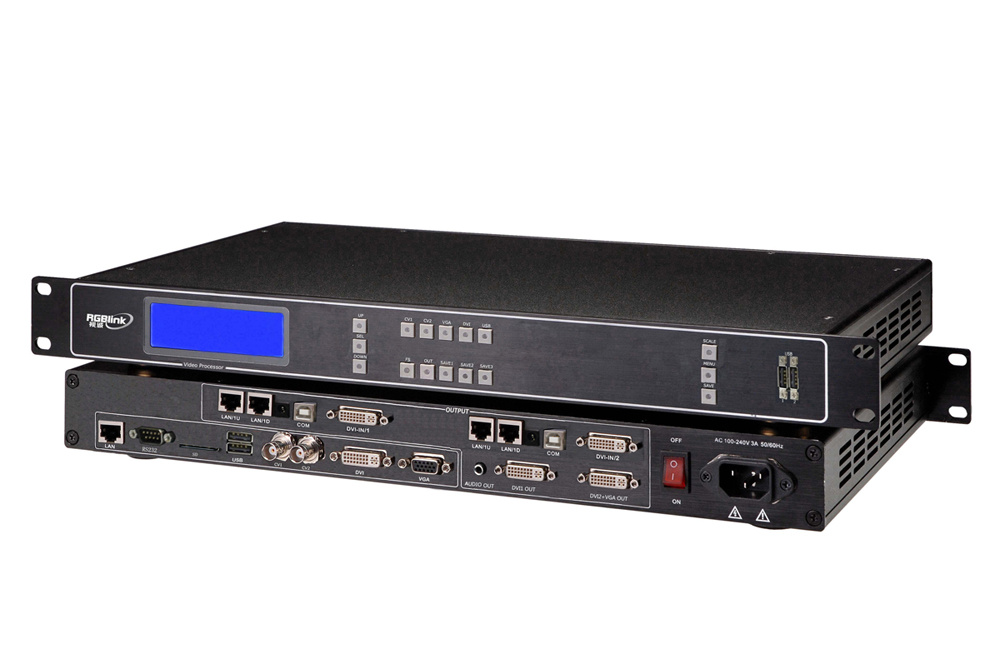

VSP112 LED Video Processor Description
VSP112 is latest introductory LED Video processor. It offers basic inputs, versatile functionality for both mobile and fixed installations. The processors motion adaptive interlacing. True color reconstruction and dynamic range adjustment provide high quality pixel based scaling. This coves all inputs including integrated internet management of media file downloads, digital signage and player technology. This is a complete, compact system. Two LED sending cards can be easily installed into the 1U case and receive DVI input from either of two DVI outputs. Around the clock scheduling and payback is possible with the 112 series because of its fully integrated scheduling platform for content management.
VSP112 LED Video Processor Features;
U A digital signage controller with LED video processor function
U 2048*1152 or 2560*812 max output resolution
U DVI image quality enhanced
U Support external sensor
U Media file download and play by internet management
U Support 3G, WIFI connections
U SD card and USB input for storage and play
U Two sending card install capacity
VSP112 LED Video Processor Video inputs
U 2*composite CVBS
U 1*DVI
U 1*VGA
U 3*USB
U 1*SD Card
U Internet video and graphic
VSP112 LED Video Processor Video connectors
U 2*BNC
U 1*DVI-I
U 1*DB15
U 3*USB
U 1*SD
U 1*RJ15
VSP112 LED Video Processor Video Output
U 2*DVI
U 1*VGA
U Output resolution: 800*600*60Hz, 800× 600× 75Hz, 1024× 768× 60Hz, 1024× 768× 75Hz,
1280× 1024× 60Hz, 1920× 1080P× 60Hz, 2048*1152*60Hz.
VSP112 LED Video Processor Video Control
Local front panel operation
Remote internet by TCP/IP
