Shenzhen Fortunemount Technology Co., Ltd. >> HD Vdieo Compression HDD Record Storage Network Transmission Mobile DVR

HD Vdieo Compression HDD Record Storage Network Transmission Mobile DVR

Name: HD Vdieo Compression HDD Record Storage Network Transmission Mobile DVR
Brand: china-manufacturer-directory.com
SKU: 749436465
Availability: InStock
Rating: 4.6 (134 reviews)

Supplier:	Shenzhen Fortunemount Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	200/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	MCH8G3N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
3G\GPS:	Support
Vdieo Standards:	PAL/NTSC
Encode Capacity:	8CH D1 Real-Time
Record Storage:	HDD, Network
HDD:	One SATA Port, Max.4t
Working Temperature:	0deg-+55deg
Compression Format:	H.264
Brand:	Vicord
Interface Display:	8
Interface:	24pin Communication Interface

Product Description

Application

Mobile Dvr Security products, to provide you with a safe and comfortable driving time, our product is standing in the user's perspective, the more used for bus, taxi, bus, transportation, mine vehicles, engineering vehicles, traffic, police, medical vehicles, car occasions like this.
Safety and health of customers and making our motivation.Usually sit in the car I wonder if you a person, there will be others, you more considering the safety of others, so your responsibility greaten, put this product installed on your car, can reduce the fatigue driving, safety comfort.

Feature:

1. Special function:Mobile data,BDS,GPS data,G-Sensor ,wide voltage,WIFI/3G,mobile DVR player,central management software,SDK etc.

2. Compression algorithm ideal:H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.

3.Playback quality:support 4ch D1,4ch 960H,8ch D1 real-time recording

4. Main and Sub Stream:Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.

5.Mobite monitor: Support various mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)

6.Display:support TV output,taking the lead in HD resolution technology.

7.Operation interface:similar to Windows operating style, easy to get started with powerful mouse right-click function.

8. Network:Powerful network services (support DAS,DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.

9.Browsers:Support multiple web browsers (ie,chrome,firefox, safari)

10.Remote Access:With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.

11.Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others.

12.Others:Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes;With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.

13.8 channel Video Input

14.upport 1*HDD Storage;( HDD maximum 2T)

15. Support 3G; (Support EVDO,WCDMA,TD-SCDMA)

16. Support GPS

Specifications:

	Model	MCH8G3N
system	Main processor	Hi3520D
	Operating system	Embedded LINUX operating system
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
interface	user interface	support 16-bit true color graphical menu interface and mouse operation
interface	preview screen	1/4
video	vdieo standards	PAL(625line,50f/s);NTSC(525line,60f/s)
	vdieo compression	H.264(Main Profile)
	display quality	Monitor:D1
	play quality	960H/D1/Half-D1/CIF/QCIF
	encode capacity	4ch 960H real-time
	decode capacity	1ch 960H real-time
	motion detect	Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio	audio compression	G.711A
audio	bidrectional talk	supported
Record & playback	record mode	manual>alarm>motion detection>timing
	local playback	Any channel playback simultaneously(1-4ch)
	search mode	Time/calendar/event/channel search
Storage & backup	space occupation	video:CIF 4~5G/ daychannel, D1 8~10G/ daychannel; audio:691.2M/ day*channel
	record storage	HDD,network
	backup mode	Network backup,USB HDD,USB writer,U disk
interface	video input	4ch
	video output	1ch RCA (1.0Vp-p,75Ω),1ch for cable
	audio input	4ch
	audio output	1ch (200-3000mV,5K)
	alarm input	4ch(multiplexing vehicle signal)
	alarm output	2ch
	RJ45 interface	no
	RS485, RS232	One RS485,one RS232
	USB	One USB
	HDD	One SATA port,max.4T
Mobile interface &functions	GPIO signal	Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input;support vehicle information OSD overlay,storage etc.
	GPS	Support
	WIFI module	Not Support
	3G module	Not Support
	G-Sensor (optional)	Not supported
	others	support delay boot up/shut down
complement	Exclusive player	Support google map,showing vehicle running track and data.
	Platform	Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data
	SDK	Free SDK for second development
others	Power supply	Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge
	External power supply	Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output
	Power consumption	<10W(HDD without)
	Working temperature	0ºC-+55ºC
	Working humudity	10%-90%
	Atmospheric pressure	86kpa-106kpa
	Dimension	193(length)*198(width)86(height)mm
	weight	1.5kg

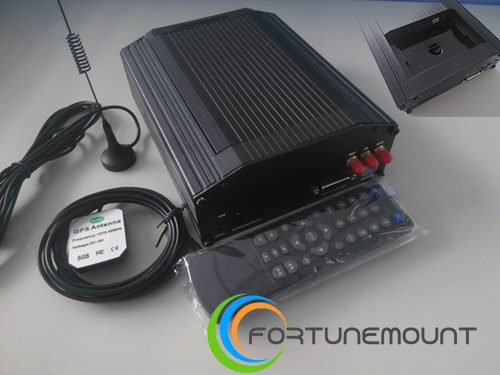

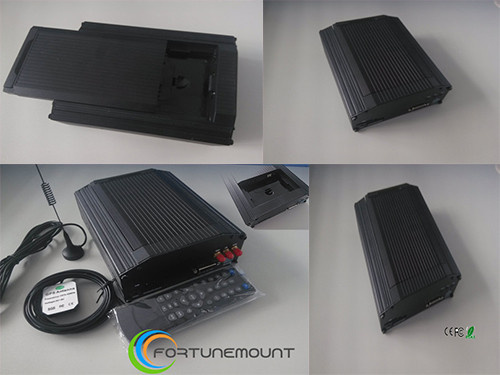

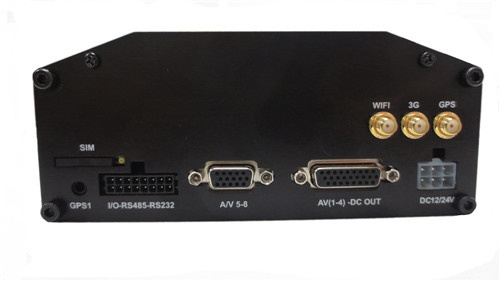

Picture show
