Feature
Precision ground and supersonic frequency
The spindle system is high in rigidity and accuracy
The noise of the machine is low
Main specification :

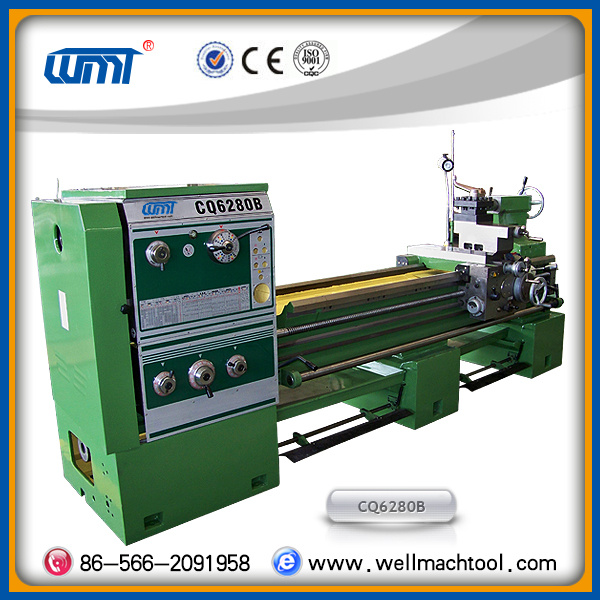

Parameter | CQ6280B | CQ6280C |
Capacity | Max swing over bed | mm | φ800 | φ800 |
Max swing in gap | mm | φ1000 | φ1000 |
Effective length in gap | mm | 240 |
Max swing over slide | mm | φ560 | φ560 |
Max workpiece length | mm | 2000/3000 |
Spindle | Spindle thru-hole | mm | φ82 | φ105 |
Spindle nose | | ISO 702/II No.8 cam-lock type |
Spindle speeds | r/min | 24 step 8-1400 | 12 step 30-1400 |
Spindle motor | kW | 7.5 |
Tailstock | Quill dia./travel | mm | φ90/150 |
Taper of center | MT | 5 |
Tool post | Number of station/Tool section | | 4/25X25 |
Feed | Max X-axis travel | mm | 145 |
Max Z-axis travel | mm | 320 | 320 |
X-axis feed | mm/r | 65 sorts 0.027-1.07 |
Z-axis feed Z-axis feed | mm/r | 65 sorts 0.063-2.52 |
Metric thread | mm | 22 sorts 1-14 |
Inch thread | t.p.i | 25 sorts 28-2 |
Module thread | πmm | 18 sorts 0.5-7 |
DP thread | t.p.i.π | 24 sorts 56-4 |
Others | Coolant pump motor | kW | 0.12 |
Machine length | mm | 3365/4365 |
Machine width | mm | 1340 |
Machine height | mm | 1490 |
Machine weight | kg | 3300/3700 |
Standard Accessories | Optional Accessories |
3-jaw chuck (325mm) | Quick change tool post |
4-jaw chuck (400mm) | Turning tools |
Face plate | Leadscrew cover |
Steady rest | Chuck guard |
Follow rest | Tool post cover |
Splash guard | Digital readout system |
Stand | Taper turning attachment |
Halogen work lamp | One piece casting stand |
Toolbox & tools | |
Coolant system | |
Foot brake | |
Five position carriage stop | |
