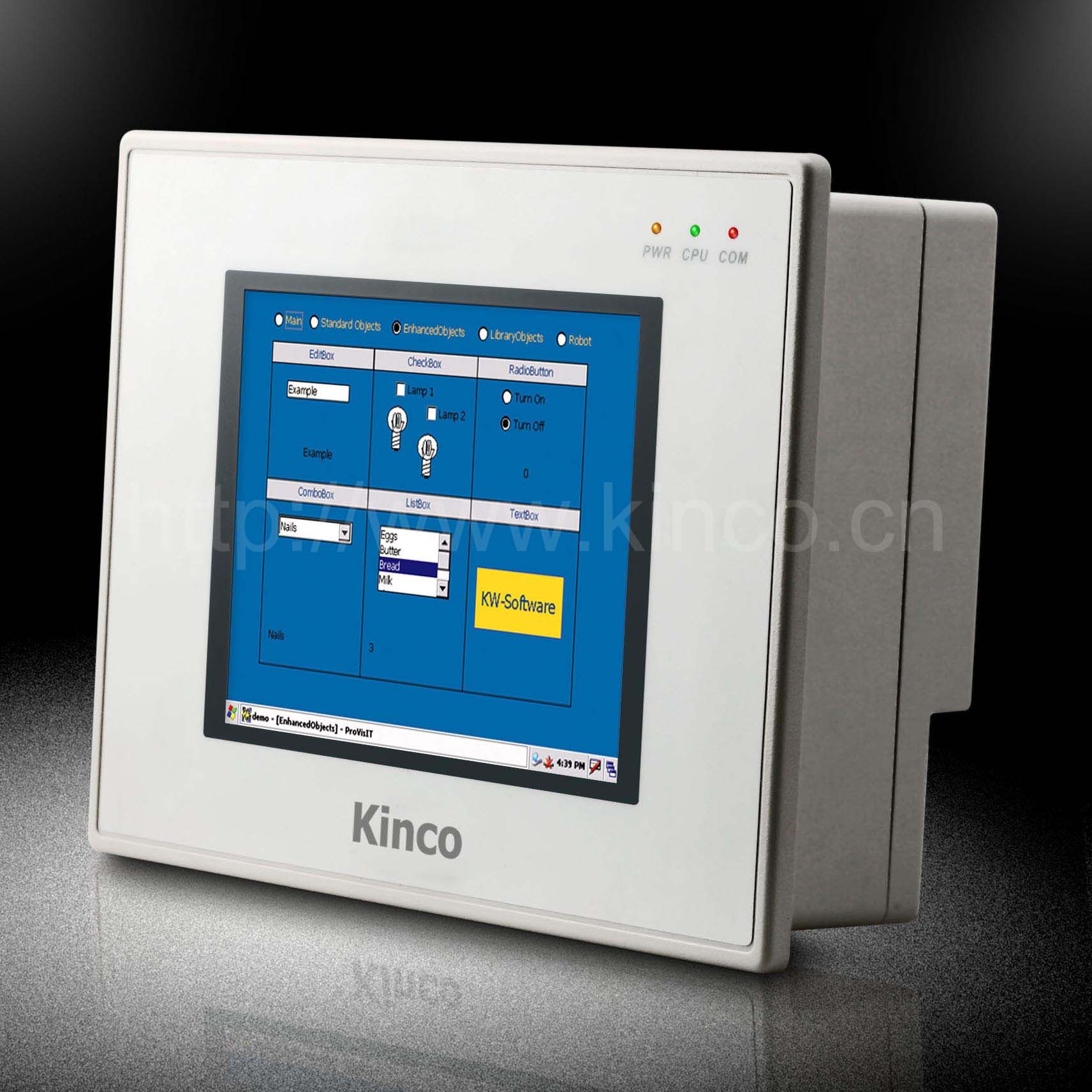

Human Machine Interface(HMI) MT5320C

Name: Human Machine Interface(HMI) MT5320C
Brand: China-Manufacturer-Directory.com
SKU: 663846325
Availability: InStock
Rating: 4.4 (138 reviews)

Supplier:	Kinco Electric (Shenzhen) Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Prod Model:	MT5320C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Kinco MT5020 Series HMI

Features
1. Higher Performance and efficiency thanks to the 520MHz powerful XScale® 32-bit RISC processor;
2. Larger and expansible memory for more complicated user application and data storage;
3. Dual USB host ports compatible with peripherals like mouse, keyboard, printer and USB disk. Users can upload/download application and recipes data from/to the panel by using USB disk. Historical data can also be stored in the USB disk.

4. Standard SD® Card slot onboard
Just like the USB disk, SD® Card can be used for uploading/downloading application and recipes data from/to the panel. Also, historical data can be stored in the card;
5. 3.5mm audio output port for external speaker
6. RJ45 Ethernet interface through which the panel can communicate with controllers and other panels, users can remotely get access to the panel via the internet also;

7. Optional CAN bus interface makes it possible for using the panel as a CAN node. With proper drivers, the panel can be used as a host or client. With MT5020, you CAN;
8. The panel can exchange data with Profibus-DP node with the optional Profibus interface
9. With optional MPI interface, the panel can communicate with Siemens S7-300/400 without any costly adapters;

10. 1 USB slave port for downloading application data from the PC faster than via serial port;
11. 65536-color TFT LCD ensures vivid graphic display.

Model	MT5320C	MT5320C-DP	MT5320C-CAN	MT5320C-MPI
Performance specification
Display	5.6" TFT(113.28×84.7mm)
Resolution	320*234 pixels
Color	65536 colors
Backlight	1 CCFL
Brightness	300cd/m 2
Backlight life	50000 hr.
Touch Panel	4-wire precision resistance network
Processor	32-bit RISC CPU 520MHz
Memory	8M FLASH, 16M SDRAM
Recipe memory & RTC	512KB & RTC
Expandable memory	SD Card, U Disk
Printer port	Connect a printer with a USB port via USB HOST port.
Ethernet	10/100 Base-T
Audio interface	None
Program download	1 USB SLAVE port
COM port	COM0:RS232/RS485-2/RS485-4, COM1:RS232/RS485-2/RS485-4, COM2:RS232
Video interface	None
USB Host	A Mouse, Keyboard and Printer, etc. which can be extended by USB port.
Communication module extending	No support	Profibus-DP expansion board supported	CANOPEN expansion board supported	MPI expansion board supported
Electrical specification
Rated power	7.2 W
Rated voltage	DC24V
Input range	DC21~DC28V
Power down allowed	<3ms
Insulation resistance	Greater than 50MΩ@ 500V DC
Dielectric strength test	500 VAC 1 minute
Structure specification
Shell color	Light-grey
Shell material	ABS
Dimensions(mm)	204×150×56.7
Cutout size(mm)	192×138
Weight	0.96kg
Environment specification
Operating temperature	0~45°c
Operating humidity	10~90% non-condensing
Storage temperature	-10~60°c
Storage humidity	10~90% non-condensing
Shockproof test	10~25Hz (X, Y, Z direction, 2G, 30 minutes)
Cooling method	Natural air cooling
Certification
Degree of protection	IP65 (front panel)
CE certification	Passed CE certification
FCC compatibility	Complies with FCC Class A
