Display: 5.6'TFT
Color: 65536 Colors
Memory: 8M FLASH + 16M SDRAM
|

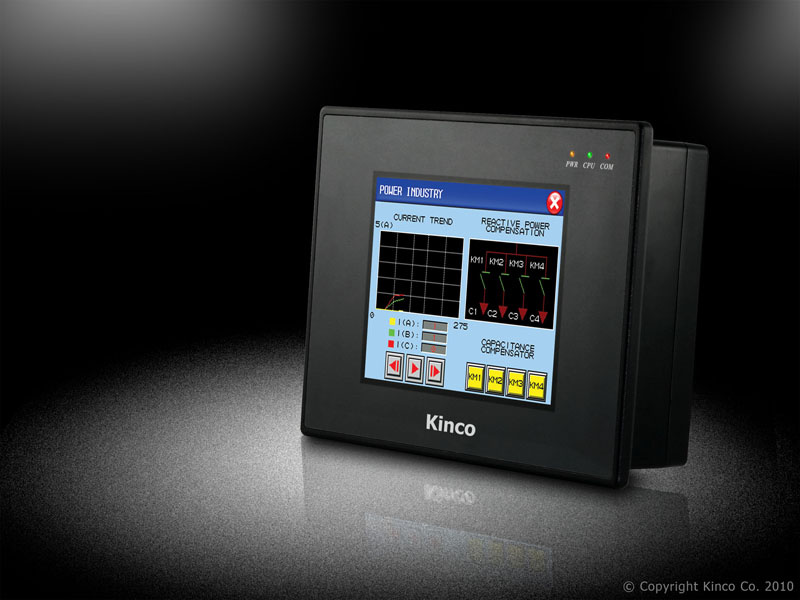

Model |
MT4310C |
|
Performance Specification |
|
Display |
5.6' TFT |
|
Resolution |
320*234 |
|
Color |
65536 |
|
Backlight |
LED |
|
Brightness |
300cd/m 2 |
|
Backlight Life |
50,000 Hr. |
|
Touch Panel |
4-Wire Precision Resistance Network |
|
Processor |
400MHz RISC |
|
Memory |
8M FLASH, 16M SDRAM |
|
Recipe Memory & RTC |
128KB & RTC |
|
Printer Port |
Serial Port |
|
Ethernet |
No |
|
Program Download |
1 USB SLAVE Port |
|
COM Port |
COM0:PLC RS485-2W/4W,PLC RS232; COM2:PC/PLC RS232 |
|
Electrical Specification |
|
Rated Power |
4 W |
|
Rated Voltage |
DC24V |
|
Input Range |
DC12-DC28V |
|
Power Down |
<5ms |
|
Insulation Resistance |
Greater than 50MΩ@ 500V DC |
|
Dielectric Strength Test |
500 VAC 1 Minute |
|
Structure Specification |
|
Shell Color |
Black |
|
Shell Material |
ABS |
|
Dimensions(mm) |
204×150×52 |
|
Cutout Size(mm) |
192×138 |
|
Weight |
0.75kg |
|
Environment Specification |
|
Operating Temperature |
0-45 °C |
|
Operating Humidity |
10-90% Non-Condensing |
|
Storage Temperature |
-10-60°C |
|
Storage Humidity |
10-90% Non-Condensing |
|
Shockproof Test |
10-25Hz (X, Y, Z Direction, 2G, 30 Minutes) |
|
Cooling Method |
Natural Air Cooling |
|
Certification |
|
Degree of Protection |
IP65 (Front Panel) |
|
CE Certification |
Passed CE Certification |
|
FCC Compatibility |
Complies with FCC Class A |
