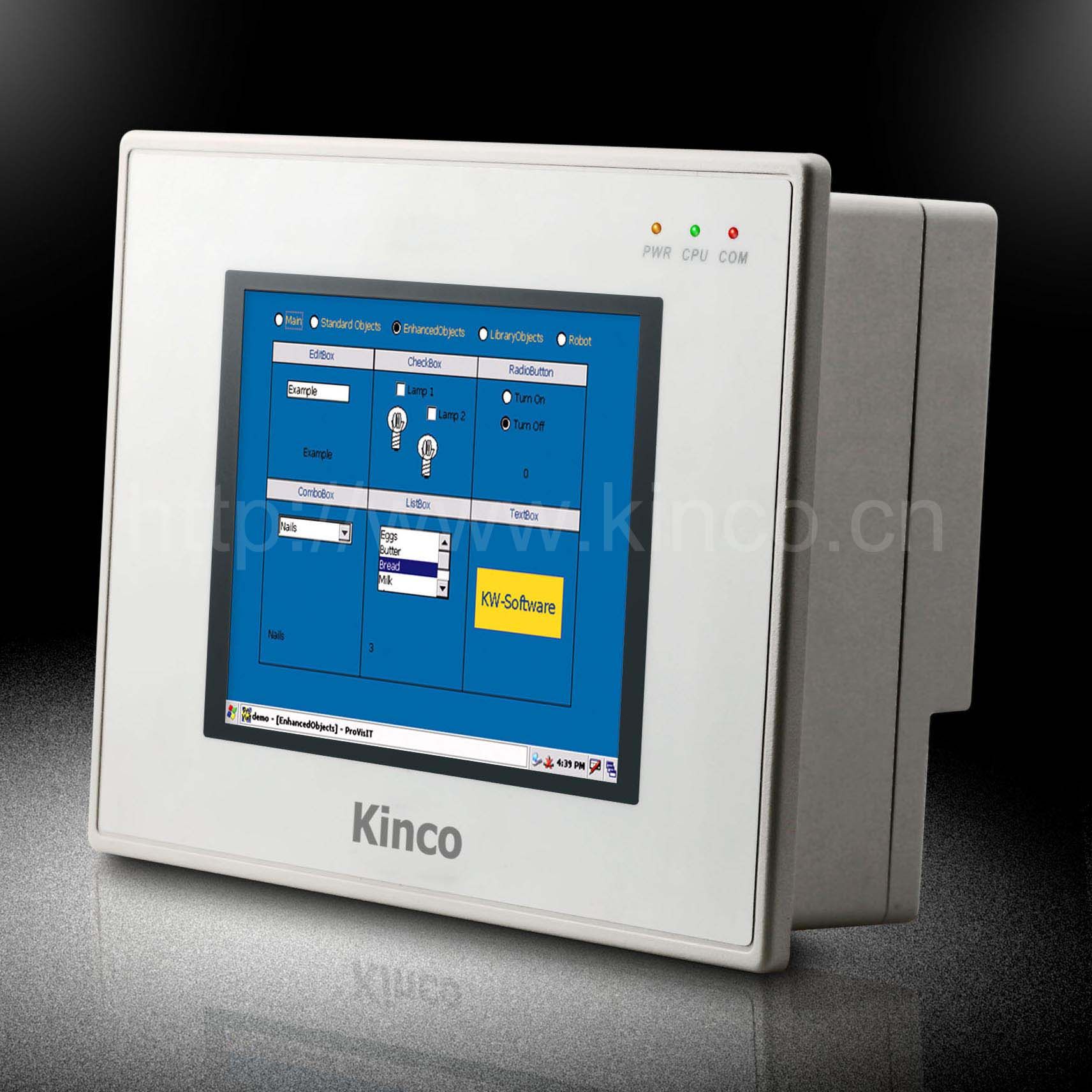

Kinco MT5020 Series HMI
Features
1. Higher Performance and efficiency thanks to the 520MHz powerful XScale® 32-bit RISC processor;
2. Larger and expansible memory for more complicated user application and data storage;
3. Dual USB host ports compatible with peripherals like mouse, keyboard, printer and USB disk. Users can upload/download application and recipes data from/to the panel by using USB disk. Historical data can also be stored in the USB disk.
4. Standard SD® Card slot onboard
Just like the USB disk, SD® Card can be used for uploading/downloading application and recipes data from/to the panel. Also, historical data can be stored in the card;
5.3.5mm audio output port for external speaker
6. RJ45 Ethernet interface through which the panel can communicate with controllers and other panels, users can remotely get access to the panel via the internet also;
7. Optional CAN bus interface makes it possible for using the panel as a CAN node. With proper drivers, the panel can be used as a host or client. With MT5020, you CAN;
8. The panel can exchange data with Profibus-DP node with the optional Profibus interface
9. With optional MPI interface, the panel can communicate with Siemens S7-300/400 without any costly adapters;
10.1 USB slave port for downloading application data from the PC faster than via serial port;
11.65536-color TFT LCD ensures vivid graphic display.
12. Communicate with over 100 major PLC including Siemens, Mitsubishi, Rockwell, Omron, Delta and many more.
13. Easy-to-use window editing software EV5000 for free.
PLC HMI (HMI for PLC)
Model |
MT5320C |
MT5320C-DP |
MT5320C-CAN |
MT5320C-MPI |
|
Performance specification |
|
Display |
5.6" TFT(113.28×84.7mm) |
|
Resolution |
320*234 pixels |
|
Color |
65536 colors |
|
Backlight |
1 CCFL |
|
Brightness |
300cd/m 2 |
|
Backlight life |
50000 hr. |
|
Touch Panel |
4-wire precision resistance network |
|
Processor |
32-bit RISC CPU 520MHz |
|
Memory |
8M FLASH, 16M SDRAM |
|
Recipe memory & RTC |
512KB & RTC |
|
Expandable memory |
SD Card, U Disk |
|
Printer port |
Connect a printer with a USB port via USB HOST port. |
|
Ethernet |
10/100 Base-T |
|
Audio interface |
None |
|
Program download |
1 USB SLAVE port |
|
COM port |
COM0:RS232/RS485-2/RS485-4,
COM1:RS232/RS485-2/RS485-4,
COM2:RS232 |
|
Video interface |
None |
|
USB Host |
A Mouse, Keyboard and Printer, etc. which can be extended by USB port. |
|
Communication module extending |
No support |
Profibus-DP expansion board supported |
CANOPEN expansion board supported |
MPI expansion board supported |
|
Electrical specification |
|
Rated power |
7.2 W |
|
Rated voltage |
DC24V |
|
Input range |
DC21~DC28V |
|
Power down allowed |
<3ms |
|
Insulation resistance |
Greater than 50MΩ@ 500V DC |
|
Dielectric strength test |
500 VAC 1 minute |
|
Structure specification |
|
Shell color |
Light-grey |
|
Shell material |
ABS |
|
Dimensions(mm) |
204×150×56.7 |
|
Cutout size(mm) |
192×138 |
|
Weight |
0.96kg |
|
Environment specification |
|
Operating temperature |
0~45°c |
|
Operating humidity |
10~90% non-condensing |
|
Storage temperature |
-10~60°c |
|
Storage humidity |
10~90% non-condensing |
|
Shockproof test |
10~25Hz (X, Y, Z direction, 2G, 30 minutes) |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Degree of protection |
IP65 (front panel) |
|
CE certification |
Passed CE certification |
|
FCC compatibility |
Complies with FCC Class A |
