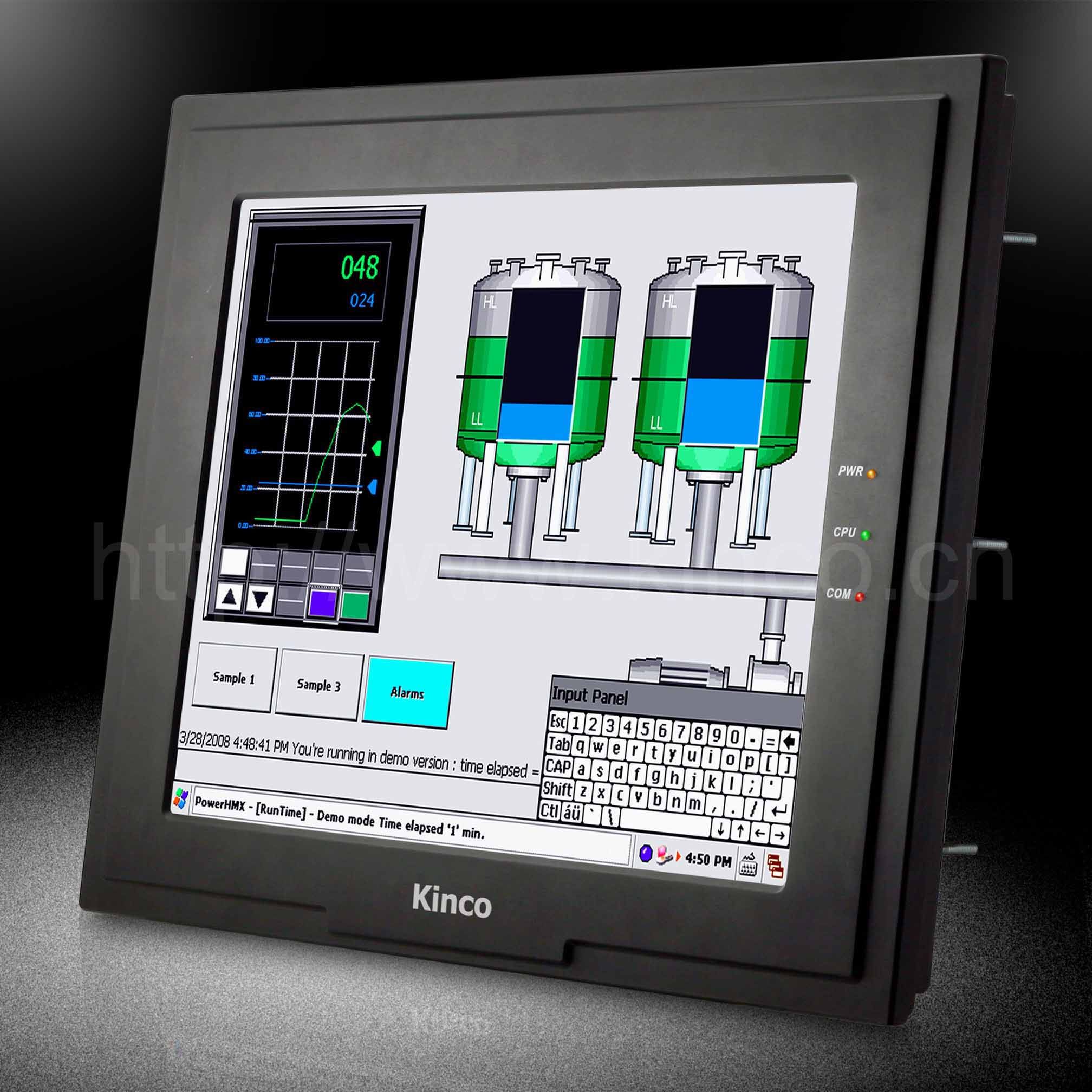

Human Machine Interface (HMI) MT5720T

Name: Human Machine Interface (HMI) MT5720T
Brand: China-Manufacturer-Directory.com
SKU: 651805545
Availability: InStock
Rating: 4.3 (63 reviews)

Supplier:	Kinco Electric (Shenzhen) Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Prod Model:	MT5720T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Kinco MT5020 Series HMI
Features
* Higher Performance and efficiency thanks to the 520MHz powerful XScale® 32-bit RISC processor;
* Larger and expansible memory for more complicated user application and data storage;
* Dual USB host ports compatible with peripherals like mouse, keyboard, printer and USB disk. Users can upload/download application and recipes data from/to the panel by using USB disk. Historical data can also be stored in the USB disk.
* Standard SD® Card slot onboard
Just like the USB disk, SD® Card can be used for uploading/downloading application and recipes data from/to the panel. Also, historical data can be stored in the card;
* 3.5mm audio output port for external speaker
* RJ45 Ethernet interface through which the panel can communicate with controllers and other panels, users can remotely get access to the panel via the internet also;
* Optional CAN bus interface makes it possible for using the panel as a CAN node. With proper drivers, the panel can be used as a host or client. With MT5020, you CAN;
* The panel can exchange data with Profibus-DP node with the optional Profibus interface
* With optional MPI interface, the panel can communicate with Siemens S7-300/400 without any costly adapters;
* 1 USB slave port for downloading application data from the PC faster than via serial port;
* 65536-color TFT LCD ensures vivid graphic display.

Model	MT5720T	MT5720T-DP	MT5720T-CAN	MT5720T-MPI
Performance specification
Display	15″TFT (304.1 × 228.1mm)
Resolution	1024*768 pixels
Color	65536
Backlight	2CCFL
Brightness	250cd/m 2
Backlight life	50000 hr.
Touch Panel	4-wire precision resistance network
Processor	32-bit RISC CPU 520MHz
Memory	16M FLASH, 32M SDRAM
Recipe memory & RTC	512KB & RTC
Expandable memory	SD Card, U Disk
Printer port	Connect a printer with a USB port via USB HOST port.
Ethernet	10/100 Base-T
Audio interface	1 Audio output interface
Video interface	2 PAL signal video input interface, BNC connector
Program download	1 USB SLAVE port
COM port	COM0:RS232/RS485-2/RS485-4,COM1:RS232/RS485-2/RS485-4, COM2:RS232
USB Host	A Mouse, Keyboard and Printer, etc. which can be extended by USB port.
Communication module extending	No support	PROFIBUS-DP expansion board supported	CANOPEN expansion board supported	MPI expansion board supported
Expand module Connector	No	Compatible PROFIBUS DB9 Female	Compatible CANOPEN DB9 Female	Compatible MPI DB9 Female
Electrical specification
Rated power	16.8 W
Rated voltage	DC24V
Input range	DC21--DC28V
Power down allowed	<3ms
Insulation resistance	Greater than 50MΩ@ 500V DC
Dielectric strength test	500 VAC 1 minute
Structure specification
Shell color	Black
Shell material	Aluminum alloy
Dimensions(mm)	406.5×313.5×48.3
Cutout size(mm)	387.5×294.5
Weight	5.1kg
Environment specification
Operating temperature	0--50 ºC
Operating humidity	10--90% non-condensing
Storage temperature	-20--60 ºC
Storage humidity	10--90% non-condensing
Shockproof test	10--25Hz (X, Y, Z direction, 2G, 30 minutes)
Cooling method	Natural air cooling
Certification
Degree of protection	IP65 (front panel)
CE certification	EN61000-6-2:2005 and EN61000-6-4:2007
FCC compatibility	Complies with FCC Class A
