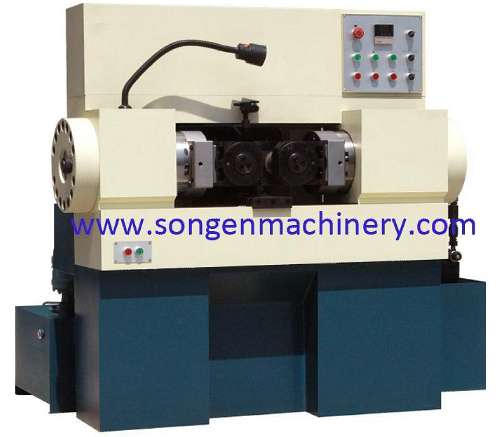

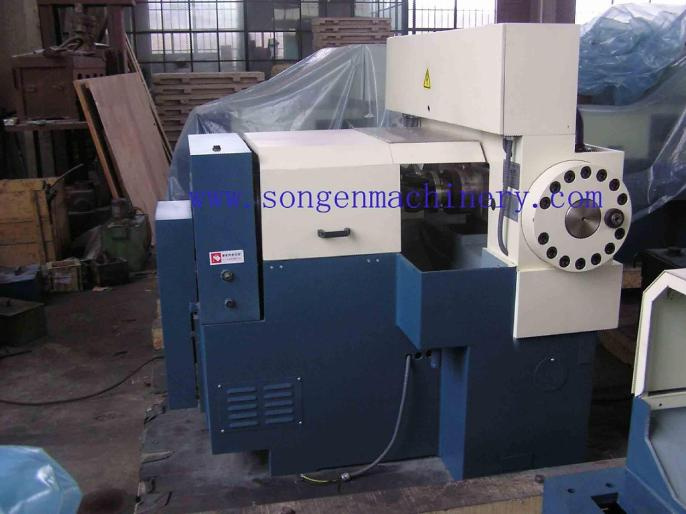

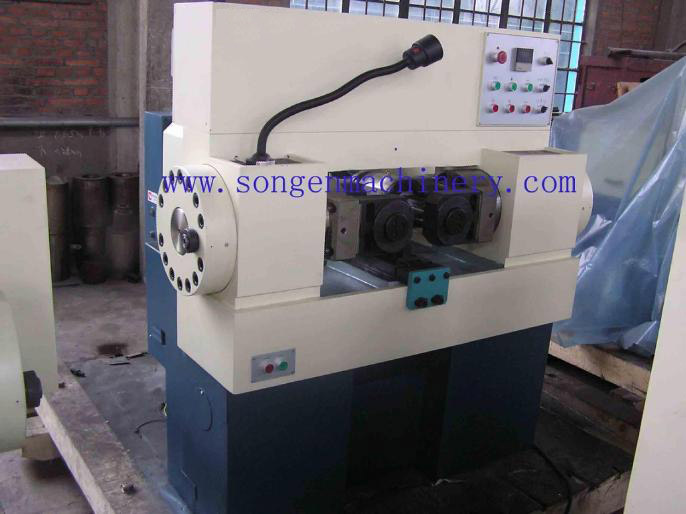

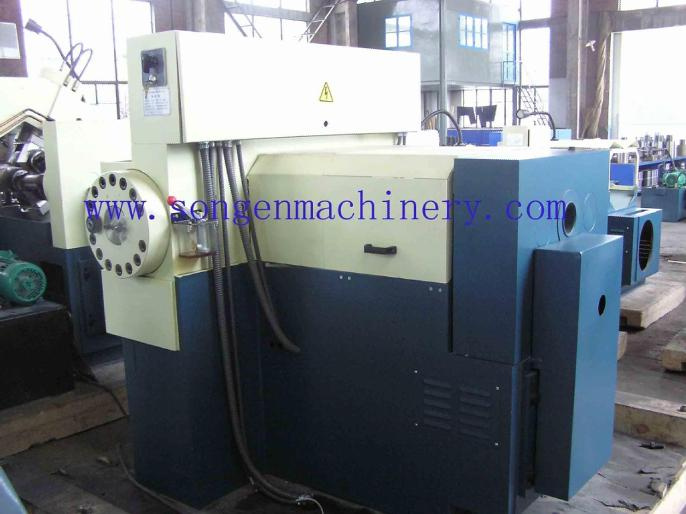

Hydraulic Thread Rolling Machine, Maximum Rolling Diameter 80mm

Name: Hydraulic Thread Rolling Machine, Maximum Rolling Diameter 80mm
Brand: china-manufacturer-directory.com
SKU: 730183555
Availability: InStock
Rating: 4.8 (129 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

1. This two-roll hydraulic thread rolling machine is suitable for cold rolling various kinds of

            (1) Precision external threads;
              (2) High-strength fasteners;
              (3) ACME threads;
              (4) Module threads;
              (5) Balls screws;

2. Materials with elongation above 10% and tensile strength not more than 1000MPa, such as various carbon steels, alloy steels and non-ferrous metal, can be processed on this thread rolling machine;

3. The feeding on this thread rolling machine is driven by hydraulic power. The maximum rolling pressure can be 250 KN;

4. Threads with fine surface and greater accuracy can be produced on this thread rolling machine at a high production rate. The density, strength and roughness of the workpieces will be improved greatly after being rolled on this machine;

5. HT-250 high-strength, high-density and close-grained grey cast iron made machine base and frame offers high rigidity for stable operations. Hydraulic power unit is equipped with this thread rolling machine.

Specifications			Unit	Model: HTR80A
Maximum rolling pressure			KN	250
Rolling thread range	Maximum diameter	Radial feed	mm	80
	Maximum diameter	Axial feed	mm	80
	Maximum pitch	Radial feed	mm	6
	Maximum pitch	Axial feed	mm	8
Rolling die range		Maximum outer diameter	mm	220
		Inner diameter	mm	75
		Maximum width	mm	160
Maximum center distance between main rolls			mm	300
Main rolls rotation speeds			RPM	16, 27, 37, 62
Main rolls inclination			Degrees	± 5
Feed travels			mm	0 - 12
Center height			mm	950
Motor power			KW	11
Machine dimension (L x W x H)			mm	1580 X 1600 X 1650
Packing dimension (L x W x H)			mm	2250 X 2000 X 1900
Net weight (Approx.)			KG	3560

Prod Model:	HTR80A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Rolling Diameter:	80mm
