Product Specifications
| Prod Model: |
VM200, VM250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Precision |
| Controlling Mode: |
Artificial |
Product Description

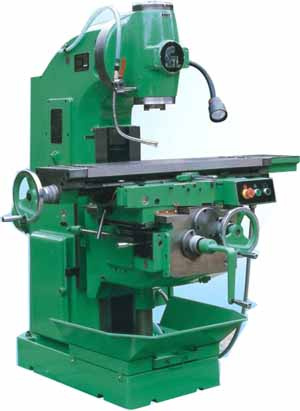

Vertical milling machine (width of working table 200 and 250mm) is suitable for milling various metals. It can mill plane, inclined plane, groove, keyway and also can drill and bore with special equipment. It is characterized with stabilizing accuracy, sensitive response, power feed and rapid adjustment in longitudinal, cross and vertical travels. Equipped with various processing. It is ideal machine tool for machinery, light industry, instrument, motor, electric appliance, dies and moulds. Vertical milling machine introduces ballscrew drive and higher spindle speed. VM200C is equipped with digital display. Every kind of vertical milling machine can be equipped with digital display.
|
Name |
Unit |
VM200B |
VM250B |
VM200C |
VM250C |
|
Working table (W×L) |
mm |
200×900 |
250×900 |
200×900 |
250×900 |
T-slot |
Number |
|
3 |
|
Width |
mm |
14 |
|
Pitch |
mm |
45(200×900), 60(250×900) |
Travel of three directions |
Longitudinal |
mm |
500 |
|
Cross |
mm |
190 |
|
Vertical |
mm |
360 |
Min. distance between spindle
nose and table surface |
mm |
10 |
|
Max. swivel angle of vertical milling head |
|
±45° |
|
Spindle taper |
|
ISO40 |
|
Spindle speed |
Range |
rpm |
60 - 1650 |
125 - 2500 |
|
Number |
|
8 |
Feed range of table and ram |
Longitudinal |
mm/min |
20 - 540 |
25 - 680 |
|
Cross |
mm/min |
14 - 380 |
17 - 480 |
|
Vertical |
mm/min |
7 - 190 |
8.5 - 240 |
Rapid feed range of
table and ram |
Longitudinal |
mm/min |
2700 |
|
Cross |
mm/min |
1800 |
|
Vertical |
mm/min |
1000 |
|
Main motor |
Power |
kw |
3 |
|
Speed |
rpm |
1440 |
|
Resolution of digital display |
mm |
0.01 |
|
Feed number of table |
mm |
8 |
|
Positioning accuracy |
mm |
0.03/300 |
|
Reset accuracy |
mm |
±0.02 |
|
Max. bearing weight of table |
kg |
150 |
|
Overall dimensions (L×W×H) |
mm |
1700×1300×1650 |
|
Net weight |
kg |
1000 |
