| Supplier: | Songen Machinery Co., Ltd. |
|---|---|
| Price: | US $ 10000/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,EXW |
|
|
| Prod Model: | HTR100 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Rolling Diameter: | 100mm |
| Rolling Threads Types: | Inch Threads, Metric Threads, Acme Threads, etc. |
| Maximum Roller Diameter: | 210mm |
| Maximum Roller Width: | 120mm |
| Spindle Centers Distance: | 150 - 300mm |
| Spindle Tilting Angle: | +/-15 Degrees |
| Main Motor Power: | 15kw |
| Hydraulic Unit Motor Power: | 5.5kw |

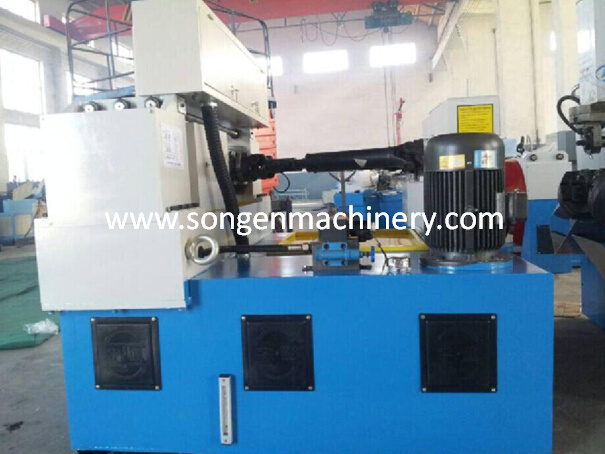

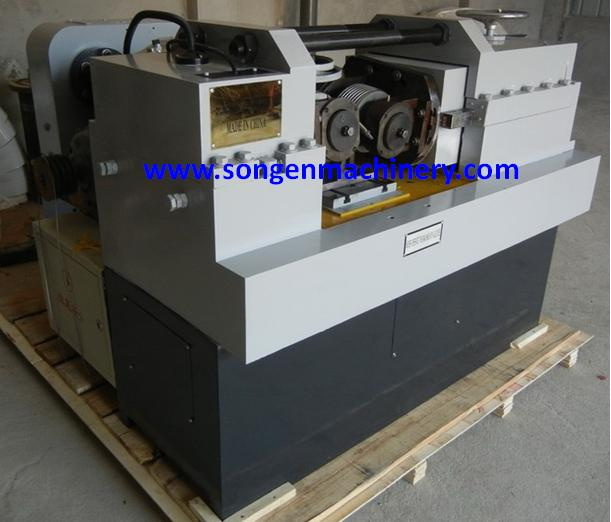

1. This two-roll hydraulic thread rolling machine is suitable for cold rolling various kinds of
(1) Precision external threads;
(2) High-strength fasteners;
(3) ACME threads;
(4) Module threads;
(5) Balls screws;
2. Materials with elongation above 10% and tensile strength not more than 1000MPa, such as various carbon steels, alloy steels and non-ferrous metal, can be processed on this thread rolling machine;
3. The feeding on this thread rolling machine is driven by hydraulic power. The maximum rolling pressure can be 315 KN;
4. Threads with fine surface and greater accuracy can be produced on this thread rolling machine at a high production rate. The density, strength and roughness of the workpieces will be improved greatly after being rolled on this machine;
5. HT-250 high-strength, high-density and close-grained grey cast iron made machine base and frame offers high rigidity for stable operations. Hydraulic power unit is equipped with this thread rolling machine.


| No. | Specifications | Unit | Model: HTR100 | ||
| 1 | Range of Rolling Threads | Maximum Diameter | mm | 100 | |
| Maximum Thread Pitch | mm | 8 | |||
| 2 | Thread Roller Range | Outer Diameter | mm | 210 | |
| Internal Diameter | mm | 75 | |||
| Maximum Width | mm | 120 | |||
| 3 | Maximum Rolling Pressure | KN | 315 | ||
| 4 | Spindle | Tilting Angle | Degree | ± 15 | |
| Speeds | RPM | 16/ 26/ 38/ 55/ 90 | |||
| 5 | Spindle Centers Distance | mm | 150 - 300 | ||
| 5 | Rolling Time | Seconds | 0.1 – 99.9 | ||
| 6 | Intermittence Time | Seconds | 0.1 – 99.9 | ||
| 7 | Spindle Motor Power | KW | 15 | ||
| 8 | Hydraulic Pump Motor Power | KW | 5.5 | ||
| 9 | Overall Size, L x W x H | mm | 2450 x 1780 x 1670 | ||
| 10 | Net Weight (Approx.) | KG | 3250 | ||
