Equipment summary:
Common applied to every field for the purposes of Second Coordinate measurement, widely used in machinery, electronics, instrumentation, plastics and other industries.
System introduction:
This system is a high-tech products which is combined perfectly with the traditional microscope technology, advanced energy conversion technologies and cutting-edge computer image processing technology. It not only can display the artifacts observed on the computer screen, the image can be observed easily measured in the computer graphics of any geometry (point, line, circle, arc, ellipse, rectangle, angle, center distance of two The distance between two parallel lines, point to the straight-line distance, vertical length, etc. ), rapid measurement of the size of the workpiece, automatic annotation, is a more cost-effective measuring instruments.
Technical parameter:

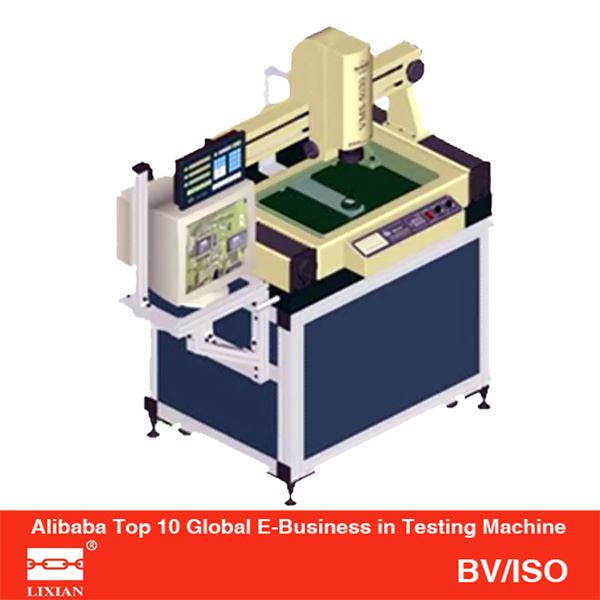

Model: Hz-3505D
Working table:
Metal table size(mm): 700 × 450
Glass table size(mm): 550 × 350
Mobile tour (mm): 500 × 300
Measurement and targeting system (standard configuration):
Imager: Japan Sony 1/2"color CCD
Display: 15 inch colorful display
The zoom lens magnification: US NAVITAR 0.7~4.5×
Working distance: 92mm
Video total magnification: 30~190×
Field in object: 10.6~1.6mm
Double Cross line generator: X. YIndication error of coordinate measuring≤ (3+L/75)µ M
Machine weight( kg ): 350Kg
Lighting: Surface with light and transmission light are LED, adjustable brightness; Power: 220V(AC), 50Hz, 30W
0.5× Add mirror, 2× Add mirror
Material mirror Video total magnification field in object working distance
0.5× 15× ~95× 20~3.2 175
2× 60× ~380× 5~0.8 36
Product features:
1. Instruments with color CCD camera, zoom lens and the cross line generator system as a measurement target;
2. Coordinates from the two platforms, grating and DC-3000 Digital Measurement of electric box components and data processing system;
3. Instruments with a variety of data processing, display, input, output, particularly useful piece straighten function;
4. Instruments with RS232 interface, connected with the computer, using specialized measurement software M2D can measure the graphics processing and output.
