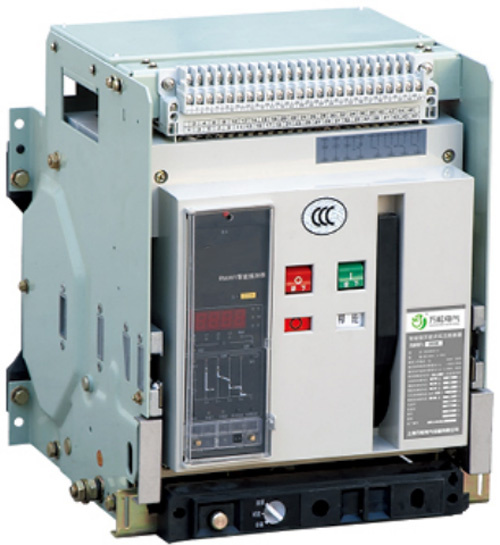

Product Specifications
| Prod Model: |
EW1 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shell Frame Rated Current Inm (a): |
2000,3200,4000,6300 |
| ICU(Ka)O-Co: |
80,100,120 |
| Rated Short-Circuit Capacity: |
105/0.25,143/0.2,165/0.2 |
| Rated Running Short Circuit Breaking Cap: |
50,60,80,100 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Certification: |
Semko |
| Poles Number: |
1p, 2p, 3p, 4p |
Product Description
Much Higher short circuit breaker capacity,Dua-connection conveninet for both sandard busbar and conductor connection.Improved safety of operators offered by special design from terminals.Much longer service life than to energy-storage operating mechanism.Enclosure and functional parts made from imported plastics with flame-retardant,heat-resistant, and impulse-proof properties.Higher current -limiting capacity ensuring a cost-effective range of products.Different handle color for different rated current with contactor condition indicator.
Specification
| Shell Frame Rated Current Inm (A) | Rated Current In(A) |
| 2000 | (400),630,800,1000,1250,1600,2000 |
| 3200 | 2000,2500,2900,3200 |
| 4000 | 3200,3600,4000 |
| 6300 | 4000,5000,6300 |
| Shell Frame Rated Current Inm (A) |
| 2000 | 3200 | 4000 | 6300 |
| Icu(kA)O-CO | 400V | 80 | 100 | 100 | 120 |
| Rated Ultimate short-circuit Breaking Capacity | 690V | 50 | 65 | 75 | 85 |
| Icu(kA)O-CO | 400V | 176/0.2 | 220/.2 | 220/0.2 | 264/0.2 |
| Rated short-circuit Capacity | 690V | 105/0.25 | 143/0.2 | 165/0.2 | 187/0.2 |
| Rated Running short circuit Breaking Capacity | 400V | 50 | 65 | 80 | 100 |
| Ics(kA)O-CO-CO | 690V | 40 | 65 | 65 | 75 |
| Rated short-time withstand Current | 400V | 50 | 65 | 65/80(MCR) | 85/100(MCR) |
| (kA)Is,Time Delay 0.4s,O-CO | 690V | 40 | 50 | 50/65(MCR) | 65/75(MCR) |
ELECO Electric is one of the most specialized manufacturers and exports for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Citcuit Breaker(MCB), Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO), Switch- disconnector, Distribution Box, Moulded case circuit breaker(MCCB), air circuit breaker(ACB), AC Contactor, Magnetic Starter, Motor Protection Circuit Breaker, Thermal Relay and K. W. H meter etc. The company takes the reputation as one of the largest manufacturer of electromagnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned intermational corporations for such projects.
Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
