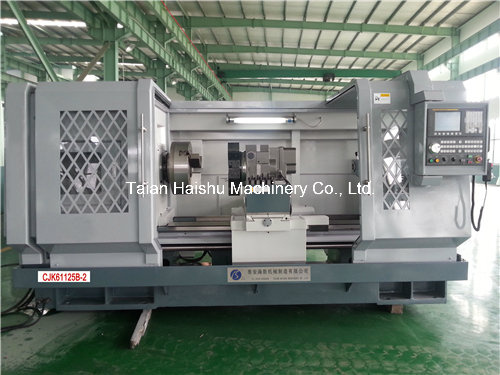

Lathe Cjk61125b Flat Bed Heavy Duty China Large Diameter Lathe Machine CNC

Name: Lathe Cjk61125b Flat Bed Heavy Duty China Large Diameter Lathe Machine CNC
Brand: china-manufacturer-directory.com
SKU: 701644052
Availability: InStock
Rating: 5 (102 reviews)

Supplier:	Taian Haishu Machinery Co., Ltd.
Price:	US $ 50000-80000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CJK61125B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Diameter Of Sliding Plate (Mm):	970mm
Rank Of Spindle Speed:	No Grade
Hole Diameter Of Spindle (Mm):	130mm
Sleeve Trip Of Tailstock (Mm):	250mm
Resetting Accuracy (Mm):	0.01
Sleeve Diameter Of Tailstock (Mm):	100mm
Range Of Spindle Speed(R/Min):	6-500
Maximum Work-Piece Length (Mm):	1500
Type:	Horizontal Lathe
Processing Accessory:	Chuck CNC Lathe
Tool Holder:	Single-tool Holder CNC Lathe
Power Source:	Hydraulic Pressure
Controlling Mode:	CNC
Automatic Grade:	Automatic
Setting Mode:	Floor-type
Precision:	High Precision

Product Description

machinery import and export CJK61125B cnc lathe and chinese metal lathe
Technical parameters

Items	CJK61125B-1
Max.swim over bed (mm)	1250
Max.swim over carriage(mm)	660
Max.length of work piece(mm)	1000/1500/3000
Spindle speed	auto 3 gear steps,stepless speed change in the step
Range of Spindle speed (r/min)	18-600
spindle nose	C11
Spindel bore(mm)	φ130
taper hole of spindle	120 1:20
Main motor model	YVP180L-6-15KW
Max.travel(mm)	X 500 Z 1200,1650,3100
rapid speeds(mm/min)	X 4000 Z 5000
Min.feed increment(mm)	X 0.01 Z 0.015
workpiece accuracy	IT6-IT7
surface roughness	Ra1.6
diameter of tailstock quil(mm)	100
travel of tailstock quill(mm)	250
taper hole of tailstock quill	Morse 6
stand configuraion	Vertical 4-position electrical turre
Section of turning tool(mm)	35*35
Packing size (mm)	3750/4750/5500×1920×1800
weight	5000/6000/7000

Configuration

Standard configurations	1. guide width is 660mm 2. spindle bore dia is 130mm 3. 4 electric tool post 4. spindle speed is a gear three handle, stepless change the speed, 5. X/Z servo driven 6. controller is GSK980TDb 7. motor power is 15kw 8. manual chuck and manual tailstock 9. auto lubrication 10. Semi-enclosed protection Tool box Instruction manual Packing list
Opitional configurations	.Siemens . Fanuc 0i-mate TD . NSK spindle bearing . 6 or 8 ,12position turret .Hydraulic chuck .Penumatic chuck .Pneumatic tailstock .Hydraulic tailstock

Taian Haishu Machinery Co., Ltd. is a professional production mechatronic product, collection development, manufacture, sales of high-tech enterprises. Company under the two divisions: One is the CNC machine tools division, the leading product is the "haishu" brand of CNC lathes and machining centers; One is the test equipment division, the leading product is "Taishanhaite" brand common rail test bench and injectoin pump, fuel injector test bench. Founded in March 2001, covers an area of 15000m2, building area of 8000m2, fixed assets 16 million yuan(RMB), has passedISO9001: 2008 international quality management system certification and European CE certification. The company has strong technical force, with a group of young and promising in the machine and test rig design and manufacture, electrical design and application of CNC technology and software development expertise and skills. Advanced 2D and 3D CAD, document management to achieve the PDM. Product innovation, Equipment CNC, Management information, Which has become the industry technology leader.

The company has a Ministry of Internal Trade and the Ministry of Foreign Trade, with independent import and export rights. The products are sold to more than 20 domestic provinces, cities and autonomous regions, and exported to 30 countries including: USA, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Czechoslovakia, Lebanon, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Russia, Belarus, Lithuania, Bahrain, Korea, India, Indonesia, Malaysia, Iran, Thailand, Philippines, Mongolia.

Main products: 1. Horizontal flat bed CNC lathe, 2. Horizontal slant bed CNC lathe, 3. Vertical CNC lathe, 4. CNC turning center, 5. CNC pipe thread lathe, 6. CNC milling machine, 7. CNC machining center, 8. CNC grinding machine.

Characteristic services: Bear machining overall program design and implementation. Include: Site planning, equipment layout, tooling tool provide, processing program design, remote operation monitoring. Machine shop to achieve unmanned.

The company has many years of experience in development and manufacturing of CNC machine tools, "technology innovation, integrity service" as a business philosophy, with new and old customers at home and abroad in close cooperation and common development.
