Yueqing Hongyin Electric Co., Ltd. >> LED Single Output Switching Power Supply

LED Single Output Switching Power Supply

Name: LED Single Output Switching Power Supply
Brand: china-manufacturer-directory.com
SKU: 695752622
Availability: InStock
Rating: 4.8 (25 reviews)

Supplier:	Yueqing Hongyin Electric Co., Ltd.
Price:	US $ 15.25/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	S-250W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	1 - 50W
Input Voltage:	Full Range
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CB
Brand:	Hongyin

Product Description

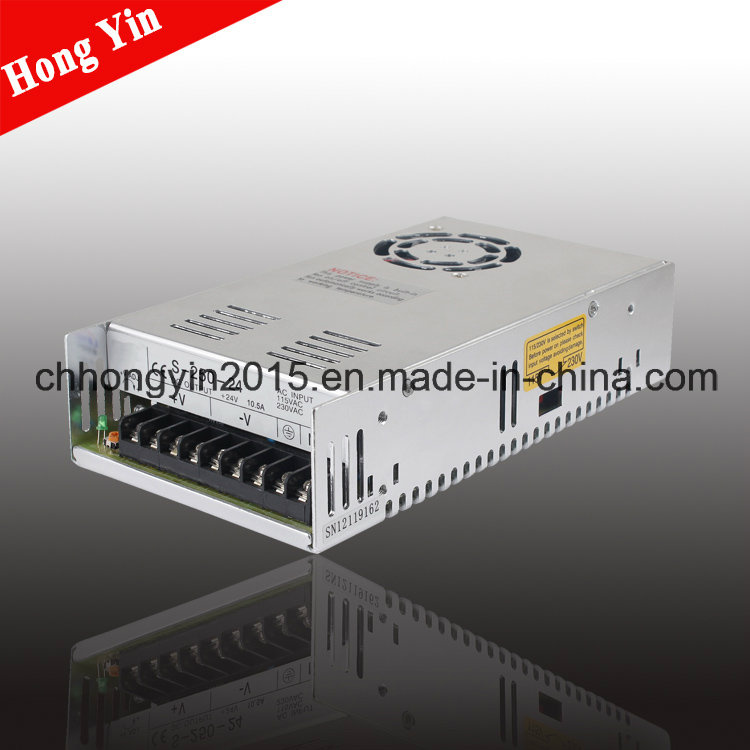

250W Single Output Switching Power Supply S-250 series

Features:
High efficiency, high reliability, low cost
Universal AC input / full range
100% full load burn-in test

Protections: Short circuit/ Over load/ Over voltage
PWM control and regulated
Forced air cooling by built in DC fan
Built-in cooling Fan ON-OFF control
Fixed switching frequency at 25 KHz
2 years warranty

SPECIFICATIONS
OUTPUT
Model	S-250-7.5	S-250-12	S-250-13.5	S-250-15	S-250-24	S-250-27	S-250-48
DC output voltage	7.5V	12V	13.5V	15V	24V	27V	48V
Output voltage error	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	33A	20A	18.5A	16.7A	10A	9A	5A
Output current range	0-33A	0-20A	0-18.5A	0-16.7A	0-10A	0-9A	0-5A
Wave and noise	200mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	240mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	247.5W	240W	248W	250.5W	240W	243W		240W
Efficiency	75%	79%	79.00%	80.00%	81%	82%	84%
DC voltage adjustable range	6~9V	10~13.2V	12~15V	13.5~18V	20~26.4V	26~32V	41~56V
AC input voltage range	88~132VAC/176~264VAC selected by switch 47~63Hz;248~370VDC
Input current	5A/115V 2.5A/230V
Leakage current	<3.5mA/240VAC
PROTECTION
Over Load	105%~135%
Over Load	Protection type: Fold back current limiting, recovers automatically after fault condition is removed.
Over Voltage	115%~135%
Over Voltage	Protection type: hiccup mode, recovers automatically after fault condition is removed.
Over Temp.	RT3≥55ºC Fan On, ≤45ºC Fan Off, ≥80ºC Output Shutdown (5~7.5V)
	RT3≥65ºC Fan On, ≤55ºC Fan Off, ≥80ºC Output Shutdown (12~15V)
	RT3≥70ºC Fan On, ≤60ºC Fan Off, ≥85ºC Output Shutdown (24~48V)
ENVIRONMENT
Working Temp., Humidity	-10ºC~+50ºC; 20%~90%RH
Storage Temp., Humidity	-20ºC~+85ºC; 10%~95%RH
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard	Design refer to UL1950
EMC Standard	Design refer to EN55022, EN55024, EN61000
OTHERS
Dimension	21511550mm(LWH)
Weight	1Kg
Packing	20pcs/20Kg

NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation
