Product Specifications
| Prod Model: |
UV-5RB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Step: |
2.5/5/6.25/10/12.5/25 kHz |
| PC Programming: |
Yes |
| Frequency Range: |
136-174 & 400-520MHz |
| Channel Capacity: |
128 |
| Operated Voltage: |
7.4V |
| Standard Battery: |
1800mAh |
| Dimensions: |
58*110*35mm |
| Weight: |
About 205g |
| RF Power Output: |
4W/1W |
| Modulation: |
F3e |
| Application: |
Military |
| Certification: |
CE |
| Style: |
Sky Wave |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
Product Description

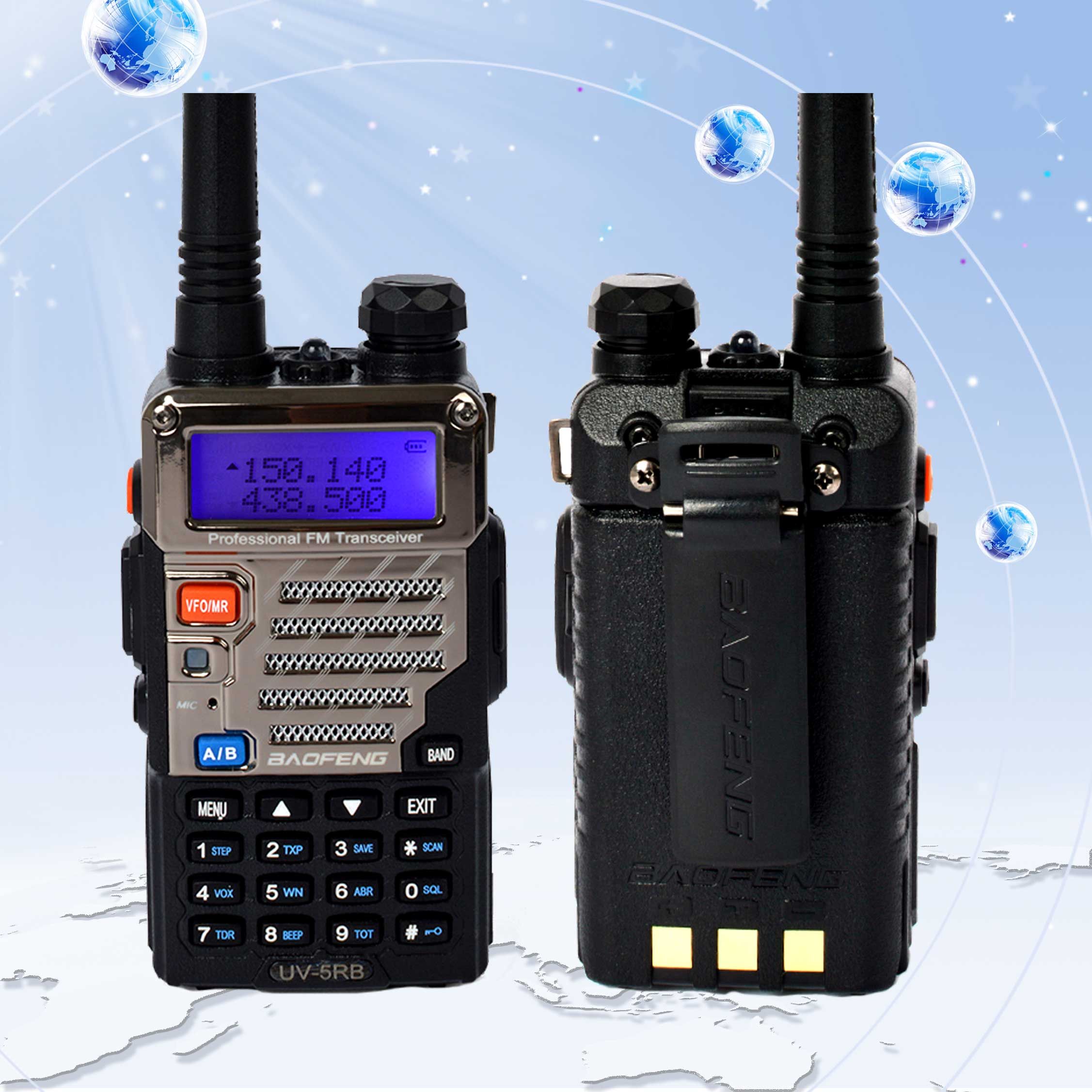

long range vhf uhf dual band handheld two way radio baofeng uv-5rb
Features
Dual band , dual frequency, dual display, dual standby transceiver
1.Large "lcd" display
2.Dtmf encode
3.Li-ion batterypack with 1800mah high capacity
4.Fm radio (65mhz-108mhz)
5.105 dcs 50 ctcss
6.Alarm function
7.Vox available
8.Frequency step:2.5/5/6.25/10/12.5/25 khz
9.Battery save
10.Time out timer programmable
11.Pc programming
| Model:Bf-uv5r dual band two-way radio |
| Specifications |
| General |
| Frequency range | 136-174mhz&400-520mhz |
| Memory channels | 128 |
| Bandwidth | Wide:25khz;Narrow 12.5khz |
| Frequency step | 2.5/5/6.25/10/12.5/20/25khz |
| Operating voltage | 7.4v |
| Battery capacity | 1800mah |
| Operate temperature range | -20°c-+60°c |
| Weight | 206g |
| Dimensions | 110*60*35mm |
| Transmitter |
| Rf output power | H 4w/l 1w |
| Modulation | F3e |
| Spurious emission | 65db |
| Fm noise | 45db(w)/42db(n) |
| Audio distortion | ≤5% |
| Transmitting current | <1.3a |
| Receiver |
| Sensitivity(12db sinad) | ≤0.20 uv |
| Selectivity | Wide:60 db;Narrow:55db |
| Intermodulation | ≥65db |
| Adjacent channel sleectvity | ≥65db |
| Spurious response | ≥60db |
| Fm noise | 45db(w)/42db(n) |
| Audio power output | 1000mw |
| Audio distortion | ≤5% |
| Note |
|
| Price term | Ex-work price |
| Moq: | 100 pcs |
| Payment: | Paypal, western union or t/t |
| Delivery: | 3-5 working days upon payment receiving |
Package:
BAOFENG UV-5RB Dual Band Two-way Radio
Ac Charger (round or flat plug)
Battery (Li-ion 7.4V 1800mAH )
Antenna
Hang Strap
Belt Clip and Screw
User's Manual
Earpiece
Shipping
Shipping options | Recommend | Delivery Time |
| Post Mail |
| For Sample Order | 7-60business days |
| Express | DHL | Widely recommend | 3-7 business days |
| UPS | Widely recommend | 3-7 business days |
| FEDEX | Recommend | 5-7 business days |
| TNT | Recommend | 5-7 business days |
| EMS | Widely recommend | 5-10 business days |
| Airfreight |
| For Large Quantity | 5-7 business days |
| By sea |
| For Large Quantity | 7-35 business days |
