Product Specifications
| Prod Model: |
HZ-1001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tester Resolution: |
Max Load 1/200000, Constant The Resolution |
| Testing Speed: |
From 0.001 to 500mm/Min |
| Accruacy Of Displacement Measurement: |
Tolerance:±0.5% / Tolerance:±0.2% |
| Accuracy Of Measured Deformation: |
Tolerance : ±0.5% |
| Safety: |
Electronic-Limit Protection |
| Overload Protection: |
Overload 10%, Automatic Protection |
| Fixture: |
a Set of Tensile Clamp |
| Machine Dimension: |
1040*590*2000mm (L*W*H) |
| Power: |
220V, 50Hz0.75kw |
| Machine Weight: |
About 500 Kg |
Product Description
Main function

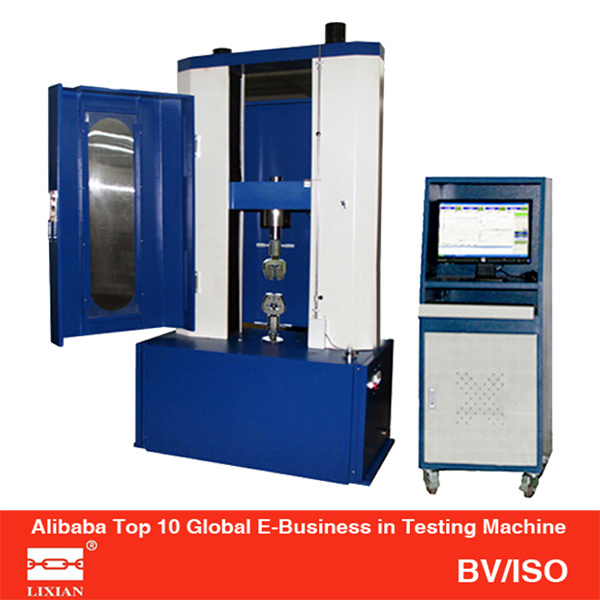

Hz-1001 Material tensile testing machine mainly applied to test the froce of metallic and non-metallic materials, the force such as tension, compression, bending, shear, peel, tear or two-points extensions (need to add extensometer) and others., the material such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel, castings, plate, strip, non-ferrous metal wire.
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, culculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; Automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
Material tensile testing machine Corresponding standard:
GB/T16491-1996 electronic universal testing machine.
Applicable industry:
It is widely used in controlling the quality; Rubber & Plastics; Metallurgical iron and steel; Manufacturing machinery; Electronic equipment; Automobile production; Textile fiber; Wire and cable; Packaging materials and foodstuffs; Instrumentation; Medical equipment; Civilian nuclear energy; Civil aviation; Colleges and universities; Research Laboratory; Inspection arbitration, technical supervision departments; Building materials, ceramic; Petroleum & Chemical; Other industries.
Technical parameter:
| model | HZ-1001 |
| Maximum load | 2ton, 5ton, 10ton( optional) |
| Accurate grade | 1 grade /0.5 grade |
| Effective measuring range | From 0.2% to 100% (1 grade) / From 0.4% to 100% (0.5 grade) |
| Measuring accuracy | the value ±1% / the value±0.5% |
| Tester resolution | Max load 1/200000, constant the resolution |
| Load sensor | Basic configuration sensor max load: one |
| Effective testing width | 400mm (can be widened according to customers requirement ) |
| Effective tensile space | 400, 500, 600mm (can be increased the height according to customers requirement) |
| Testing speed | from 0.001 to 500mm/min |
| Accruacy of displacement measurement | Tolerance:±0.5% / tolerance:±0.2% |
Deformation of measured system
(accord to the requirements) | Min span :10mm, Max range of deformation 800mm
Another configuration:Min span: 25mm, 50mm, 100mm. Max range of deformation 5mm, 10mm, 25mm |
| Accuracy of measured deformation | Tolerance : ±0.5% ( according to requirement of customer to choose the larger or small deformation) |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast or slow (two speeds to control), can jog |
| Return Back | Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |
| fixture | A set of tensile clamp |
| Machine dimension | 1040*590*2000mm (L*W*H) |
| Power system | Panasonic AC Servo Motor , Driver , high-precision ball screw |
| Power supply | 220V , 50HZ or according to the requirement. |
| Power | 0.75KW (depending on different demand of force, using different motor) |
| Weight | about 500 Kg |
