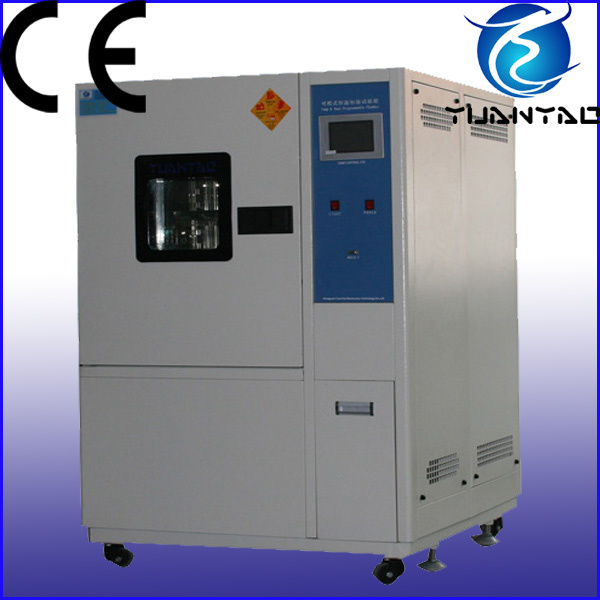

Medium dimension stable climate test device (YTH-225)
Introduction&Application:
Medium dimension stable climate test device( climatic/ climate/ environment/environmental test chambers) simulate the effects that a range of temperature and humidity conditions have on a product or material, for example telecommunications equipment or photovoltaic solar panels that are exposed to outdoor temperature and humidity conditions. They have applications in industries as disparate as food science, semiconductors, and military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field. Climate test chambers come in a variety of sizes, from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large batches of product simultaneously. Temperature ranges from -70° C to 180° C and relative humidity ranges between 20% and 98% are available. A climate test chamber can also be used when constant climate conditions (temperature and/or humidity) are needed for product testing.
Feature:
1 Large system capacity: 120 patterns*1200 steps
2 Circulation Setting: Max. 9999 cycles.
3 PID+SSR/SCR controller.
4 Curves drawing.
5 Safety device
6 RS-232&RS-485 communication interface.
7 France Tecumseh compressor.
8 CE certification
9 5.5" LCD touch screen controller imported from Japan.
10 Large glass visiable observation window with lamp.
11 Best after sales service: One year free parts maintenance.
12 Meet international test standards.
13 Customization is available & welcomed.
Technical parameters
Model No.: YTH-225
Inner chamber size: 500*750*600mm(WXHXD)
Exterior chamber size: 950*1650*1150mm(WXHXD)
Temp. Range: -40 º C to + 150 º C
Humi. Range: 20% RH---98% RH
Temp. & Humi. Fluctuation: ± 0.2º C, ± 0.5%RH
Temp. &Humi. Uniformity: ± 1.5º C, ± 2.5% RH when RH is ≤ 75%; ± 4%RH when RH is > 75% ( Empty load, stailization after 30mins)
Temp. &Humi. Resolution: 0.01º C, 0.1%RH
More details about the specification, please contact Angela Cheng, thanks for your attention.
Except Medium dimension stable climate test device, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
|
Model |
YTH-080 |
YTH-150 |
YTH-225 |
YTH-408 |
YTH-800 |
YTH-1000 |
|
Internal Dim.W×H×D(mm) |
400×500×400 |
500×600×500 |
500×750×600 |
600×850×800 |
1000×1000×800 |
1000×1000×1000 |
|
External Dim.W×H×D(mm) |
900×1350×950 |
950×1500×1050 |
950×1650×1150 |
1050×1750×1350 |
1450×1900×1350 |
1450×1900×1550 |
|
Temperature Range |
-73ºC-60ºC, -40ºC,-20ºC, 0ºC---+150ºC,+180ºC |
|
Humidity Range |
20%HR --98%HR |
|
Performance |
Temp.&Humi accuracy |
±0.2ºC(1p), ±0.3ºC(2p);±2.5%RH(1p),±3.0%ºC(2p) |
|
Temp.&Humi regularity |
±1.5ºC,±3.0%RH |
|
Indication Resolution |
0.01ºC,0.01%RH |
|
Heat up time(20ºC--HT) |
ºC |
100 150 |
100 150 |
100 150 |
100 150 |
100 150 |
100 150 |
|
min |
30 40 |
30 40 |
30 45 |
30 45 |
30 45 |
30 45 |
|
Heat down time(20ºC--HT) |
ºC |
0 -20 -40 -60 -70 |
0 -20 -40 -60 -70 |
0 -20 -40 -60 -70 |
0 -20 -40 -60 -70 |
0 -20 -40 -60 -70 |
0 -20 -40 -60 -70 |
|
min |
25 40 50 80 90 |
25 40 50 80 90 |
25 40 50 80 90 |
25 40 55 80 90 |
25 40 75 85 90 |
25 40 85 95 100 |
|
Material |
Exterior |
Stainless steel plate+Powder Coated |
|
Interior |
SUS#304 stainless steel plate |
|
Insulation |
PU & Fiberglass wool |
|
Systems |
Circulation |
Sirocco fan |
|
Heating |
SUS#304 stainless steel high-speed heater |
|
Humidifying |
Surface evaporating system |
|
Cooling |
Airtight compressor+vaporator fins+air-cooling condenser |
|
Dehumidifying |
ADP Critical dewpoint cooling/dehumidifying method |
|
Controller |
Digital electronic indicatrs+S.S.R.With PID automatic calculation capabilty |
|
Accessories |
Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø60mm)Chamber lamp. |
|
Safety devices |
No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
|
Power(K.W.) |
AC 1Ψ 220V,3Ψ380V 60/50Hz |
|
3.0 4.0 6.0 6.0 6.0 |
25 40 50 80 90 |
25 40 50 80 90 |
25 40 55 80 90 |
25 40 75 85 90 |
25 40 85 95 100 |
