Product Specifications
| Prod Model: |
WH-E27 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation Dimension: |
76.9mm*51.5mm |
| Usage: |
Receipt Printer |
| Style: |
Black and White |
| Interface Type: |
RS232/Ttl |
| Type: |
Thermal |
| Max. Paper Size: |
57mm*30mm |

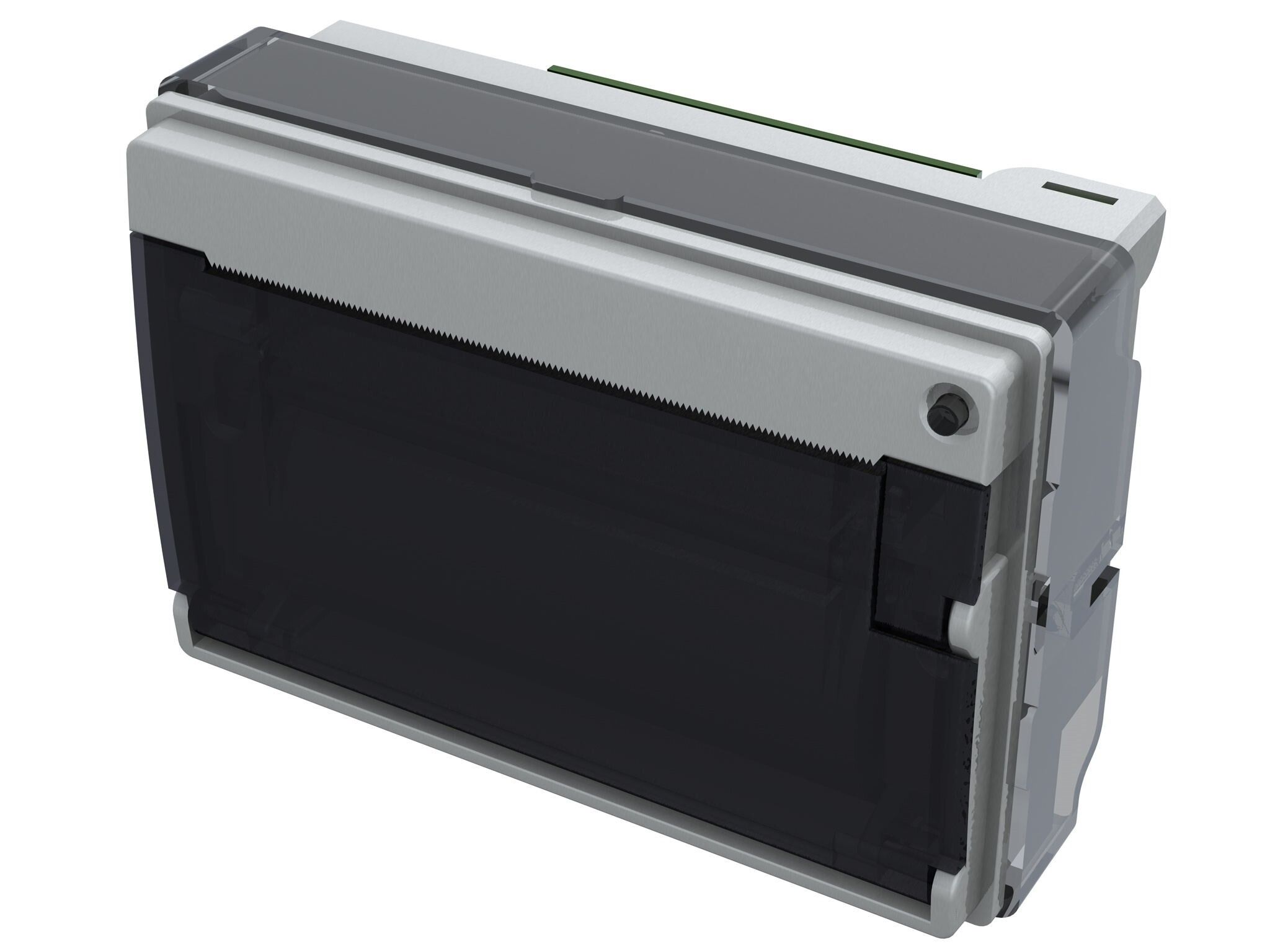

Product Description
Stylish,delicate and elegant appearance
Very silent printing thru direct thermal printing method
Paper end sensors and self-motion memory printing function
Serial RS-232C,TTL
Abundant figure/curves/characters print function
Easier paper loading
Printing method: direct thermal line printing
Paper out detection: paper end sensors function
Paper loading way: easy paper loading
Paper width: 57mm
Print width: 48mm
Resolution ration: 8dots/mm(384 dots/line)
Life of printing head: 6,000,000 character lines
Printing speed: 60mm/s (when the character ration is 25%)
Character: 8*16 dots, 12*24 dots
Chinese character library: GB2312 (24*24dots), GB2312 (16*16dots)
Outline dimensions: 82mm*56.7mm*34.7mm/81.9mm*56.5mm*34.7mm
Install dimensions (W*H*D mm):76.9+0.5mm*51.5+0.5mm
Paper supplied: 57mm wide, 30mmØ
Interface: Serial RS232C/TTL
Input power: DC 5-8.5V ,15W
Operating temperature: 5C°-50C°
Storage temperature: -20C°-60C°
Operating humidity: 10%-80%
Storage humidity 10%-90%
