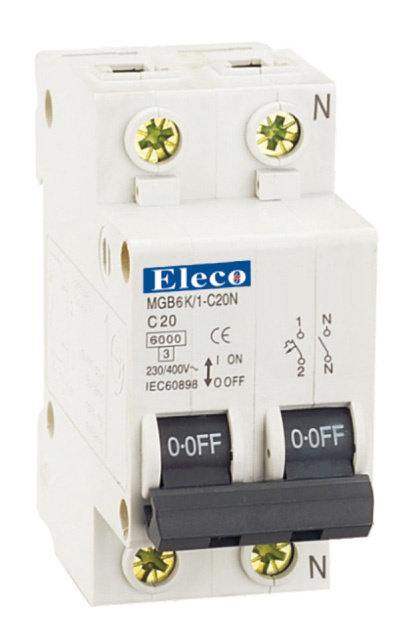

Product Specifications
| Prod Model: |
MGB Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
4.5ka,6ka |
| Type Of Trip: |
Thermal/Magnetic Relase |
| Rated Current In: |
0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A |
| Number Of Poles: |
1p,1p+N,2p,3p+N and 4p |
| Type Of Terminal: |
Pin Type |
| Degree Of Protection: |
IP20 |
| Width: |
17.8mm Per Pole |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Certification: |
CB |
| Installation: |
Fixed, Mounting on 35mm DIN Rail |
| Poles Number: |
1p.2p.3p.4p |
Product Description
The breaker is characterized by compact design,lightweight, elegant appearance, high breaking capacity,swift releasing long service life.
Application
| Standard | Confirming to IEC60898,IEC60947-2 |
| Protection | Against overload and short circuit |
| Rated Current in | 0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A |
| Number of Poles | 1p,1p+N,2p,3p+N and 4p |
| Type of Terminal | Pin Type |
| Degree of Protection | IP20 |
| Width | 17.8mm Per Pole |
| Breaking Capacity | 4.5KA, 6KA |
| Rated Voltage | 1pole 230/400V AC 50/60Hz
2,3,4pole 400V AC 50/60Hz
Rated insulation voltage Ui:500V
Rated impulse withstand voltage Uimp: 6000V |
| Type of trip | Thermal/magnetic release |
| Installation | Mounting on 35mm DIN rail |
